High Capacity 256k TI DSP for Faster Response and Higher Accuracy in VFD530 for PMSM Inverter
Place of Origin China
Brand Name VEIKONG
Certification CE
Model Number VFD530
Minimum Order Quantity 1
Price Negotiable
Packaging Details the power less than 45kw use Carton, starting from 45kw use Wooden case
Delivery Time 3 days, depend on the order quantity
Payment Terms L/C, T/T, Western Union
Supply Ability 15000pcs per Month
Product Details
Product Name PMSM Inverter Power 10hp/7.5kw
Load Permanent Magnet Synchronous Motor Keypad LCD+LED+shuttle Keypad
Control Mode Vf/open Loop Vector/ Close Loop Vector Frequency Up To 3000hz
Color Dark Blue Warranty Period 18 Months Or More
OEM Supported Brand VEIKONG
Original China
High Light

PMSM Motor 10 Hp Vfd Drive

,

Synchronous Motor 10 Hp Vfd Drive

,

7.5kw Vfd Drive

Product Description
380V 7.5kw 10hp VFD Converter for PMSM Motor Synchronous Motor

VEIKONG  hot selling VFD

VFD500M is high performance vector control mini vfd

VFD500 is high performacne general vfd

VFD550 is high perfromance special vfd with positional control.

VFD530 is high performance special vfd with lifting function, support 2 PID, support Synchronous and asynchronous motors

VFD500-PV is solar pump inverter.

VFD510 is IP65 inverter


VFD530 features:
Our VFD530 is updated from VFD500(high performance general inverter)

Support Asynchornous & Synchronous motor.
Out frequency up to 3000HZ.
Up to 200% starting torque at 0HZ.
High capacity 256k TI DSP with faster response and higher accuracy.
Special brake logic mechanism for crane and hoist
Magnetic flux brake gain
Support 2 PID loop for HVAC

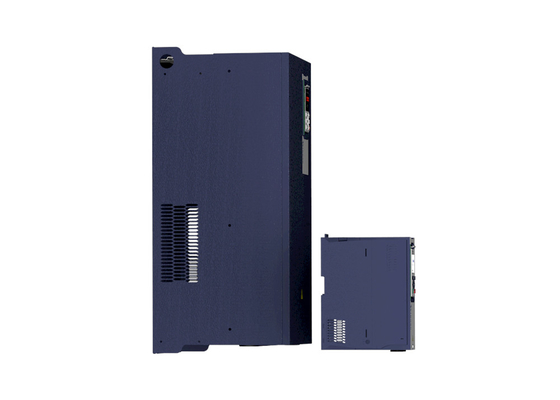

High Capacity 256k TI DSP for Faster Response and Higher Accuracy in VFD530 for PMSM Inverter 0

VFD530 control mode:


Control Control mode

V/f control

Sensorless flux vector control without PG card(SVC)

Sensor speed flux vector control with PG card (VC)

Operating mode Speed control,Torque control(SVC and VC)
Speed range

1:100 (V/f)

1:200( SVC)

1:1000 (VC)

Speed control accuracy

±0.5% (V/f)

±0.2% (SVC)

±0.02% (VC)

Speed response

5Hz(V/f)

20Hz(SVC)

50Hz(VC)

frequency range

0.00~2000.00Hz(V/f)

0.00~200.00Hz(SVC)

0.00~400.00Hz(VC)

Input frequency resolution

Digital setting: 0.01 Hz

Analog setting: maximum frequency x 0.1%

Startup torque

150%/0.5Hz(V/f)

180%/0.25Hz(SVC)

200%/0Hz(VC)

Torque control accuracy

SVC:within 5Hz10%,above 5Hz5%

VC:3.0%

V/f curve

V / f curve type: straight line, multipoint, power function, V / f separation;

Torque boost support: Automatic torque boost (factory setting), manual torque boost

Frequency giving ramp

Support linear and S curve acceleration and deceleration;

4 groups of acceleration and deceleration time, setting range 0.00s ~ 60000s

DC bus voltage control

Overvoltage stall control: limit the power generation of the motor by adjusting the output frequency to avoid skipping the voltage fault;



Undervoltage stall control: control the power consumption of the motor by adjusting the output frequency to avoid yaw failure



VdcMax Control: Limit the amount of power generated by the motor by adjusting the output frequency to avoid over-voltage trip;

VdcMin control: Control the power consumption of the motor by adjusting the output frequency, to avoid jump undervoltage fault

Carrier frequency 1kHz~12kHz(Varies depending on the type)
Startup method Direct start (can be superimposed DC brake); speed tracking start
Stop method Deceleration stop (can be superimposed DC braking); free to stop
Maincontrol function Jog control, droop control, up to 16-speed operation, dangerous speed avoidance, swing frequency operation, acceleration and deceleration time switching, VF separation, over excitation braking, process PID control, sleep and wake-up function, built-in simple PLC logic, virtual Input and output terminals, built-in delay unit, built-in comparison unit and logic unit, parameter backup and recovery, perfect fault record,fault reset, two groups of motor parametersfreeswitching, software swap output wiring, terminals UP / DOWN




Product series instruction:



Model

Power capacity

(KVA)

Input current

(A)

Output current(A)

Adaptable Motor

(KW)

SIZE Brake Unit
Heavy load Light load
Three phase: 380-480V,50/60Hz
VFD530-R75GT4B 1.5 3.4 2.5 4.2 0.75 SIZE A Internal
VFD530-1R5GT4B 3 5 4.2 5.6 1.5
VFD530-2R2GT4B 4 5.8 5.6 9.4 2.2
VFD530-4R0G/5R5PT4B 5.9 10.5 9.4 13.0 3.7
VFD530-5R5G/7R5PT4B 8.9 14.6 13.0 17.0 5.5 SIZE B
VFD530-7R5G/011PT4B 11 20.5 17.0 23.0 7.5
VFD530-011G/015PT4B 17 26.0 25.0 31.0 11 SIZE C Internal
VFD530-015G/018PT4B 21 35.0 32.0 37.0 15
VFD530-018G/022PT4B 24 38.5 37.0 45.0 18.5 SIZE D
VFD530-022G/030PT4B 30 46.5 45.0 57.0 22
VFD530-030G/037PT4 40 62.0 60.0 75.0 30 SIZE E option
VFD530-037G/045PT4 50 76.0 75.0 87.0 37
VFD530-045G/055PT4 60 92.0 90.0 110.0 45 SIZE F
VFD530-055G/075PT4 75 113.0 110.0 135.0 55
VFD530-075G/090PT4 104 157.0 152.0 165.0 75 SIZE G
VFD530-090G/110PT4 112 170.0 176.0 210.0 90 External
VFD530-110G/132PT4 145 220.0 210.0 253.0 110 SIZE H
VFD530-132G/160PT4 170 258.0 253.0 304.0 132 SIZE I
VFD530-160G/185PT4 210 320.0 304.0 360.0 160
VFD530-185G/200PT4 245 372.0 360.0 380.0 185 SIZE J
VFD530-200G/220PT4 250 380.0 380.0 426.0 200
VFD530-220G/250PT4 280 425.0 426.0 465.0 220 SIZE K
VFD530-250G/280PT4 315 479.0 465.0 520.0 250
VFD530-280G/315PT4 350 532.0 520.0 585.0 280 SIZE L
VFD530-315G/355PT4 385 585.0 585.0 650.0 315
VFD530-355G/400PT4 420 638.0 650.0 725.0 355 SIZE M
VFD530-400G/450PT4 470 714.0 725.0 820.0 400
VFD530-450G/500PT4 530 800.0 820.0 / 450 SIZE N
VFD530-500G/560PT4 580 880.0 900.0 / 500
VFD530-560G/630PT4 630 950.0 980.0 / 560 SIZE O
VFD530-630GT4 710 1080 1120. / 630 SIZE O
VFD530-710GT4 790 1200 1260 / 710 SIZE O
Single phase :220V ,50/60HZ
VFD530-R40GS2 1.3 6.0 3.2 5.6 0.4 SIZE A Inbuilt
VFD530-R75GS2 2.4 11.0 5.6 8.0 0.75 SIZE A
VFD530-1R5GS2 3.5 15.0 8.0 10.6 1.5 SIZE A
VFD530-2R2GS2 5.5 25.0 10.6 14.0 2.2 SIZE A
VFD530-4R0GS2 7.7 35.0 17.0 23.0 4.0 SIZE B
VFD530-5R5GS2 8.9 53.0 25.0 31.0 5.5 SIZE C
VFD530-7R5GS2 11 67.0 32.0 37.0 7.5 SIZE C




VEIKONG VFD application:

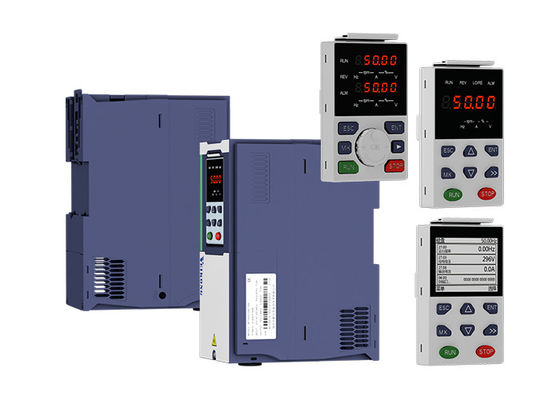

High Capacity 256k TI DSP for Faster Response and Higher Accuracy in VFD530 for PMSM Inverter 1







VEIKONG VFD replace famous brands

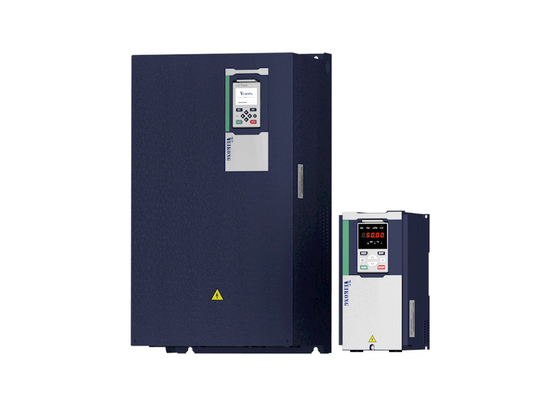

High Capacity 256k TI DSP for Faster Response and Higher Accuracy in VFD530 for PMSM Inverter 2

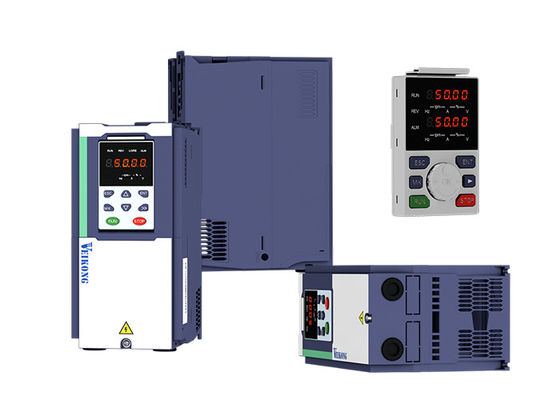

High Capacity 256k TI DSP for Faster Response and Higher Accuracy in VFD530 for PMSM Inverter 3

Synchronous motor control:

17 group synchronous motor control
P17.00 Initial position identification mode

0:Pulse testing

1: High frequency injection

1
P17.01 Initial position identification current 50%~180% 100%
P17.03 Low speed zone definition 0.1% ~ 60.0% 10.0%
P17.07 High frequency injection amplitude

5% ~ 50.0%

For the amplitude of high-frequency signal injection, the larger the set value, the higher the accuracy of position identification, but the greater the noise of the motor. The set value should be as small as possible when the accuracy meets the requirements.

20.0%
P17.11 Operation mode in low speed in SVC

0: normal way

1: High frequency injection operation

0
P17.12 No load current in low speed in SVC 0.0% ~ 100.0% 20%
P17.13 No load current in high speed in SVC 0.0% ~ 50.0% 2.0%
P17.18 MTPA control

0:disable

1:enable

MTPA is the maximum torque current ratio control. Enabling MTPA can reduce the motor current when SVC and VC are running under load.

0
P17.19 MTPA control adjust time The smaller the set value, the faster the MTPA will act, it will cause current oscillation if set value too small 0.500




VFD530 parameter distribution list



Classification Parameter group Page
Common parameters 00:Basic function Page 39
01:Frequency source selection Page 41
02:Start and stop Page 47
03:Ramp and S curve Page 51
04: Analog and pulse input Page 53
05:Analog and pulse output Page 57
06:Multi-function Digital input (DI) Page 58
07: Multi-function Digital output(DO) Page 61
08:Digital Output setting Page 64
Motor control 10:Encoder type Page 67
11:Motor1 parmeter Page 69
12:Motor1 VFcontrol parameter Page 71
13:Motor1 Vector controlparameter Page 75
14:Torque control Page 77
16:Energy saving control Page 78
17:Synchronous motor control Page 79
Display and protection 20:User-defined parameters Page 80
21:Keypad and display Page 82
22:AC Drive configuration Page 84
23:Drive protection function setting Page 87
24:Motor protection parameter Page 90
25:Fault tracking parameter Page 92
26:Fault recording parameter Page 92
27:Monitoring parameter Page 94
Communication 30:Modbus communication Page 95
  31:Canopen communication Page 97
Application 40:Process PID Function Page 97
41:Sleep function Page 104
42:Simple PLC Page 105
43:Programmable delay unit Page 107
44:Comparator and logic unit/controller Page 109
45:Multifunction counter Page 113
Motor 2 60:Motor2 basic parameter Page 115
61:Motor2 parameter Page 115
62:Motor2 VF control parameter Page 115
63:Motor2 vector control parameter Page 115
