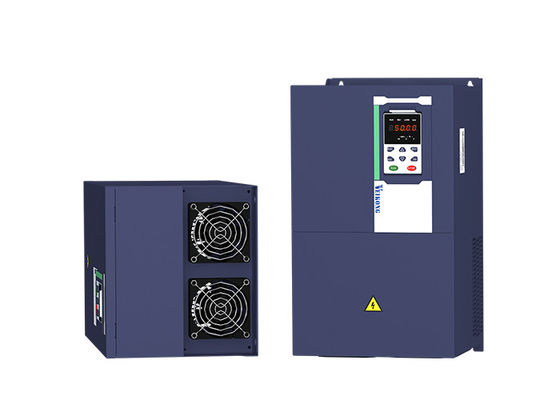

VEIKONG 0.75kw to 710kw PMSM Inverter For Permanent Magnet Synchronous Motor
Place of Origin China
Brand Name VEIKONG
Certification CE
Model Number VFD530
Minimum Order Quantity 1
Price Negotiable
Packaging Details the power less than 45kw use Carton, starting from 45kw use Wooden case
Delivery Time 3 days, depend on the order quantity
Payment Terms L/C, T/T, Western Union
Supply Ability 15000pcs per Month
Product Details
Product Name 0.75kw-710kw PMSM VFD Power 0.75kw-710kw
Load Permanent Magnet Synchronous Motor Control Mode Vf/vc/svc
Voltage 220v/380v Phase Single Phase/three Phase
High Light

VEIKONG PMSM Inverter

,

710kw PMSM Inverter

,

710kw VEIKONG Inverter

Product Description
0.75kw-710kw PMSM VFD for permanent magnet synchronous motor


VEIKONG  hot selling VFD

VFD500M is high performance vector control mini vfd

VFD500 is high performacne general vfd

VFD550 is high perfromance special vfd with positional control.

VFD530 is high performance special vfd with lifting function, support 2 PID, support Synchronous and asynchronous motors

VFD500-PV is solar pump inverter.

VFD510 is IP65 inverter


VFD530 features:
Our VFD530 is updated from VFD500(high performance general inverter)

Support Asynchornous & Synchronous motor.
Out frequency up to 3000HZ.
Up to 200% starting torque at 0HZ.
High capacity 256k TI DSP with faster response and higher accuracy.
Special brake logic mechanism for crane and hoist
Magnetic flux brake gain
Support 2 PID loop for HVAC
VFD530 technical data:

Item Specifiation
Input Inuput Voltage

1phase/3phase 220V:200V~240V

3 phase 380V-480V:380V~480V

Allowed Voltage fluctuation range -15%~10%
Input frequency 50Hz / 60Hz,fluctuation less than 5%
Output Output Voltage 3phase:0~input voltage
Overload capacity

General purpose application:60S for 150% of the rated current

Light load application:60S for 120% of the rated current

Control Control mode

V/f control

Sensorless flux vector control without PG card(SVC)

Sensor speed flux vector control with PG card (VC)

Operating mode Speed control,Torque control(SVC and VC)
Speed range

1:100 (V/f)

1:200( SVC)

1:1000 (VC)

Speed control accuracy

±0.5% (V/f)

±0.2% (SVC)

±0.02% (VC)

Speed response

5Hz(V/f)

20Hz(SVC)

50Hz(VC)

frequency range

0.00~2000.00Hz(V/f)

0.00~200.00Hz(SVC)

0.00~400.00Hz(VC)

Input frequency resolution

Digital setting: 0.01 Hz

Analog setting: maximum frequency x 0.1%

Startup torque

150%/0.5Hz(V/f)

180%/0.25Hz(SVC)

200%/0Hz(VC)

Torque control accuracy

SVC:within 5Hz10%,above 5Hz5%

VC:3.0%

V/f curve

V / f curve type: straight line, multipoint, power function, V / f separation;

Torque boost support: Automatic torque boost (factory setting), manual torque boost

Frequency giving ramp

Support linear and S curve acceleration and deceleration;

4 groups of acceleration and deceleration time, setting range 0.00s ~ 60000s

DC bus voltage control

Overvoltage stall control: limit the power generation of the motor by adjusting the output frequency to avoid skipping the voltage fault;



Undervoltage stall control: control the power consumption of the motor by adjusting the output frequency to avoid yaw failure



VdcMax Control: Limit the amount of power generated by the motor by adjusting the output frequency to avoid over-voltage trip;

VdcMin control: Control the power consumption of the motor by adjusting the output frequency, to avoid jump undervoltage fault

Carrier frequency 1kHz~12kHz(Varies depending on the type)
Startup method Direct start (can be superimposed DC brake); speed tracking start
Stop method Deceleration stop (can be superimposed DC braking); free to stop
Maincontrol function Jog control, droop control, up to 16-speed operation, dangerous speed avoidance, swing frequency operation, acceleration and deceleration time switching, VF separation, over excitation braking, process PID control, sleep and wake-up function, built-in simple PLC logic, virtual Input and output terminals, built-in delay unit, built-in comparison unit and logic unit, parameter backup and recovery, perfect fault record,fault reset, two groups of motor parametersfreeswitching, software swap output wiring, terminals UP / DOWN
Function Keypad LED Digital keyboard and LCD keypad(option)
Communication

Standard:

MODBUS communication

CAN OPEN AND PROFINET( IN DEVELOPMENT)

PG card Incremental Encoder Interface Card (Differential Output and Open Collector), Rotary transformer Card
Input terminal

Standard:

5 digital input terminals, one of which supports high-speed pulse input up to 50kHz;

2 analog input terminals, support 0 ~ 10V voltage input or 0 ~ 20mA current input;

Option card:

4 digital input terminals

2 analog input terminals.support-10V-+10V voltage input

Output terminal

standard:

1 digital output terminal;

1 high-speed pulse output terminal (open collector type), support 0 ~ 50kHz square wave signal output;

1 relay output terminal(second relay is an option )

2 analog output terminals, support 0 ~ 20mA current output or 0 ~ 10V voltage output;

Option card: 4 digital output terminals

Protection Refer to Chapter 6 "Troubleshooting and Countermeasures" for the protection function
Environment Installation location Indoor, no direct sunlight, dust, corrosive gas, combustible gas, oil smoke, vapor, drip or salt.
Altitude 0-3000m.inverter will be derated if altitude higher than1000m and rated output current will reduce by 1% if altitude increase by 100m
Ambient temperature -10°C~ +40°C,maximum 50°C (derated if the ambient temperature is between 40°C and 50°C)Rated output current decrease by 1.5% if temperature increase by 1°C
Humidity Less than 95%RH, without condensing
Vibration Less than 5.9 m/s2 (0.6 g)
Storage temperature -20°C ~ +60°C
Others Installation Wall-mounted, floor-controlled cabinet, transmural
Protection level IP20
cooling method Forced air cooling
EMC CE ROHS

Internal EMC filter

Complies with EN61800-3

Category C3

3rd Environment



Product series instruction:



Model

Power capacity

(KVA)

Input current

(A)

Output current(A)

Adaptable Motor

(KW)

SIZE Brake Unit
Heavy load Light load
Three phase: 380-480V,50/60Hz
VFD530-R75GT4B 1.5 3.4 2.5 4.2 0.75 SIZE A Internal
VFD530-1R5GT4B 3 5 4.2 5.6 1.5
VFD530-2R2GT4B 4 5.8 5.6 9.4 2.2
VFD530-4R0G/5R5PT4B 5.9 10.5 9.4 13.0 3.7
VFD530-5R5G/7R5PT4B 8.9 14.6 13.0 17.0 5.5 SIZE B
VFD530-7R5G/011PT4B 11 20.5 17.0 23.0 7.5
VFD530-011G/015PT4B 17 26.0 25.0 31.0 11 SIZE C Internal
VFD530-015G/018PT4B 21 35.0 32.0 37.0 15
VFD530-018G/022PT4B 24 38.5 37.0 45.0 18.5 SIZE D
VFD530-022G/030PT4B 30 46.5 45.0 57.0 22
VFD530-030G/037PT4 40 62.0 60.0 75.0 30 SIZE E option
VFD530-037G/045PT4 50 76.0 75.0 87.0 37
VFD530-045G/055PT4 60 92.0 90.0 110.0 45 SIZE F
VFD530-055G/075PT4 75 113.0 110.0 135.0 55
VFD530-075G/090PT4 104 157.0 152.0 165.0 75 SIZE G
VFD530-090G/110PT4 112 170.0 176.0 210.0 90 External
VFD530-110G/132PT4 145 220.0 210.0 253.0 110 SIZE H
VFD530-132G/160PT4 170 258.0 253.0 304.0 132 SIZE I
VFD530-160G/185PT4 210 320.0 304.0 360.0 160
VFD530-185G/200PT4 245 372.0 360.0 380.0 185 SIZE J
VFD530-200G/220PT4 250 380.0 380.0 426.0 200
VFD530-220G/250PT4 280 425.0 426.0 465.0 220 SIZE K
VFD530-250G/280PT4 315 479.0 465.0 520.0 250
VFD530-280G/315PT4 350 532.0 520.0 585.0 280 SIZE L
VFD530-315G/355PT4 385 585.0 585.0 650.0 315
VFD530-355G/400PT4 420 638.0 650.0 725.0 355 SIZE M
VFD530-400G/450PT4 470 714.0 725.0 820.0 400
VFD530-450G/500PT4 530 800.0 820.0 / 450 SIZE N
VFD530-500G/560PT4 580 880.0 900.0 / 500
VFD530-560G/630PT4 630 950.0 980.0 / 560 SIZE O
VFD530-630GT4 710 1080 1120. / 630 SIZE O
VFD530-710GT4 790 1200 1260 / 710 SIZE O
Single phase :220V ,50/60HZ
VFD530-R40GS2 1.3 6.0 3.2 5.6 0.4 SIZE A Inbuilt
VFD530-R75GS2 2.4 11.0 5.6 8.0 0.75 SIZE A
VFD530-1R5GS2 3.5 15.0 8.0 10.6 1.5 SIZE A
VFD530-2R2GS2 5.5 25.0 10.6 14.0 2.2 SIZE A
VFD530-4R0GS2 7.7 35.0 17.0 23.0 4.0 SIZE B
VFD530-5R5GS2 8.9 53.0 25.0 31.0 5.5 SIZE C
VFD530-7R5GS2 11 67.0 32.0 37.0 7.5 SIZE C




VEIKONG VFD application:

VEIKONG 0.75kw to 710kw PMSM Inverter For Permanent Magnet Synchronous Motor 0







VEIKONG VFD replace famous brands

VEIKONG 0.75kw to 710kw PMSM Inverter For Permanent Magnet Synchronous Motor 1







VEIKONG 0.75kw to 710kw PMSM Inverter For Permanent Magnet Synchronous Motor 2
