VFD500M Compact and Easy-to- VFD Variable Frequency Drive for Asynchronous Motor Control
Place of Origin China
Brand Name VEIKONG
Certification CE
Model Number VFD500M
Minimum Order Quantity 1
Price Negotiable
Packaging Details Carton and Wooden Box
Delivery Time 3 days, depend on the order quantity
Payment Terms Western Union, T/T, L/C, D/A, D/P, PayPal
Supply Ability 15000pcs per Month
Product Details
Product Name 2.2KW 4KW Mini Size VFD Voltage 220V / 380V
Size 175*86*128mm Protection Level IP20
Keyboard LED Output Frequency 50Hz/60Hz
Brand VEIKONG Original China
Color Dark Blue
High Light

4000W Submersible Pump VFD

,

2200W Submersible Pump VFD

,

4000W VFD Variable Frequency Drive

Product Description

2.2KW 4KW Mini Size VFD Variable Frequency Inverter For Motor And Submersible Pump



Features and Functions



VFD500M is a economical vector control inverter for asynchronous motor control. High reliability, easy to use, compact size and rich functions; support open-loop VF control and speed sensorless vector control, can be used for driving various automatic production equipment

This manual introduces functional characteristics and usage of VFD500M series inverter, includes product model selection, parameter settings, running and debugging, maintenance, checking, and so on. Please be sure to read this manual carefully before operation. For equipment matching manufacturers, please send this manual to your end user together with your devices, in order to facilitate the usage.



Technical Specification



Item

Specifiation

Input

Inuput Voltage

1phase/3phase 220V:200V~240V

3 phase 380V-480V:380V~480V

Allowed Voltage fluctuation range

-15%~10%

Input frequency

50Hz / 60Hz,fluctuation less than 5%

Output

Output Voltage

1/3phase:0~input voltage

Overload capacity

General purpose application:60S for 150% of the rated current

Light load application:60S for 120% of the rated current

Control

Control mode

V/f control

Sensorless flux vector control without PG card(SVC)

Operating mode

Speed control,Torque control(SVC)

Speed range

1:100 (V/f)

1:200( SVC)

Speed control accuracy

±0.5% (V/f)

±0.2% (SVC)

Speed response

5Hz(V/f)

20Hz(SVC)

frequency range

0.00~600.00Hz(V/f)

0.00~200.00Hz(SVC)

Input frequency resolution

Digital setting: 0.01 Hz

Analog setting: maximum frequency x 0.1%

Startup torque

150%/0.5Hz(V/f)

180%/0.25Hz(SVC)

Torque control accuracy

SVC:within 5Hz10%,above 5Hz5%

VC:3.0%

V/f curve

V / f curve type: straight line, multipoint, power function, V / f separation;

Torque boost support: Automatic torque boost (factory setting), manual torque boost

Frequency giving ramp

Support linear and S curve acceleration and deceleration;

4 groups of acceleration and deceleration time, setting range 0.00s ~ 60000s

DC bus voltage control

Overvoltage stall control: limit the power generation of the motor by adjusting the output frequency to avoid skipping the voltage fault;



Undervoltage stall control: control the power consumption of the motor by adjusting the output frequency to avoid yaw failure



VdcMax Control: Limit the amount of power generated by the motor by adjusting the output frequency to avoid over-voltage trip;

VdcMin control: Control the power consumption of the motor by adjusting the output frequency, to avoid jump undervoltage fault

Carrier frequency

1kHz~16kHz(Varies depending on the type)

Startup method

Direct start (can be superimposed DC brake); speed tracking start

Stop method

Deceleration stop (can be superimposed DC braking); free to stop

Maincontrol function

Jog control, droop control, up to 16-speed operation, dangerous speed avoidance, swing frequency operation, acceleration and deceleration time switching, VF separation, over excitation braking, process PID control, sleep and wake-up function, built-in simple PLC logic, virtual Input and output terminals, built-in delay unit, built-in comparison unit and logic unit, parameter backup and recovery, perfect fault record,fault reset, two groups of motor parametersfreeswitching, software swap output wiring, terminals UP / DOWN

Function

Keypad

LED Digital keypad and LCD keypad(option)and external LED display

communication

Standard:

MODBUS communication

Input terminal

Size A:4 digital input terminals and 1 analog input terminals

Size B:5 digital input terminals,one of which supports high-speed pulse input up to 50kHz;2 analog input terminalssupport 0 ~ 10V voltage input or 0 ~ 20mA current input;

Output terminal

Size A 1 digital output terminal;

1 relay output terminal(Support NO only )

1 analog output terminals, support 0 ~ 20mA current output or 0 ~ 10V voltage output;

Size B 1 digital output terminal;

1 high-speed pulse output terminal (open collector type), support 0 ~ 50kHz square wave signal output;

1 relay output terminal(SUPPORT NO AND NC)

1 analog output terminals, support 0 ~ 20mA current output or 0 ~ 10V voltage output;

Protection

Refer to Chapter 6 "Troubleshooting and Countermeasures" for the protection function

Environment

Installation location

Indoor, no direct sunlight, dust, corrosive gas, combustible gas, oil smoke, vapor, drip or salt.

Altitude

0-3000m.inverter will be derated if altitude higher than1000m and rated output current will reduce by 1% if altitude increase by 100m

Ambient temperature

-10°C~ +40°C,maximum 50°C (derated if the ambient temperature is between 40°C and 50°C)Rated output current decrease by 1.5% if temperature increase by 1°C

Humidity

Less than 95%RH, without condensing

Vibration

Less than 5.9 m/s2 (0.6 g)

Storage temperature

-20°C ~ +60°C

Others

Installation

Wall-mounted, floor-controlled cabinet, transmural

Protection level

IP20

cooling method

Forced air cooling FOR SIZE B ,SIZE A(NATURAL COOLING)



Model Range



Model

Power capacity

(KVA)

Input current

(A)

Output current(A)

Adaptable Motor

(KW)

SIZE

Brake Unit

Heavy load

Light load

3 phase: 380V-480V,50/60Hz

VFD500M-R75GT4B

1.6

3.2

2.5

4.2

0.75

SIZE B

Internal

VFD500M-1R5GT4B

2.8

4.7

4.2

5.6

1.5

VFD500M-2R2GT4B

3.7

7.8

5.6

9.4

2.2

VFD500M-4R0GT4B

6.2

11.6

9.4

10.5

3.7

VFD500M-5R5GT4B

8.6

15.6

13.0

17.0

5.5

SIZE C

Internal

VFD500M-7R5GT4B

11.2

20.5

17.0

23.0

7.5

1 phase: 200-240V,50/60Hz

VFD500M-R40GS2B

1.2

6.9

2.8

3.2

0.4

SIZEA

Internal

VFD500M-R75GS2B

2.1

12.2

4.5

4.8

0.75

VFD500M-1R5GS2B

3.1

17.0

8.0

10.6

1.5

SIZEB

VFD500M-2R2GS2B

4.1

21.0

10.6

12.5

2.2

3 phase: 200V-240V,50/60Hz

VFD500M-R40GT2B

1.2

4

2.8

3.2

0.4

Size B



Internal

VFD500M-R75GT2B

2.1

7.1

4.5

4.8

0.75

VFD500M-1R5GT2B

3.1

11.3

8.0

10.6

1.5

VFD500M-2R2GT2B

4.1

14.5

10.6

12.5

2.2



Product Application

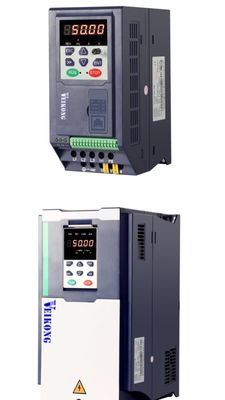

VFD500M Compact and Easy-to- VFD Variable Frequency Drive for Asynchronous Motor Control 0

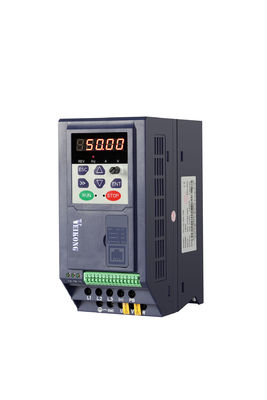

VFD500M Compact and Easy-to- VFD Variable Frequency Drive for Asynchronous Motor Control 1
