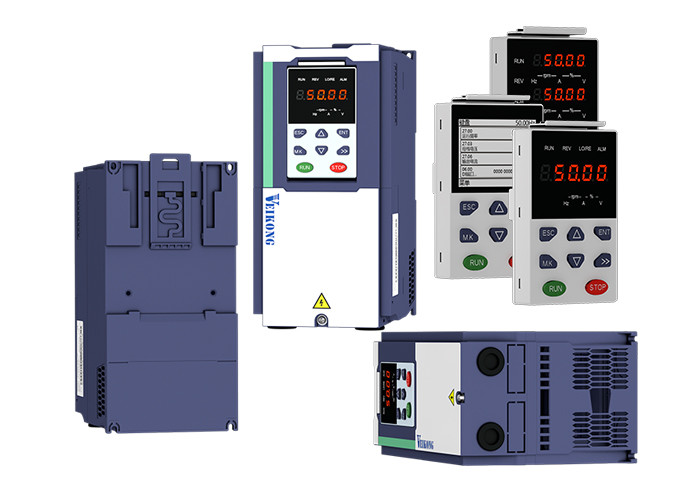

vector control Variable Frequency Inverters 0.75kw-710kw Ac Drive VFD
| Place of Origin | China |
|---|---|
| Brand Name | VEIKONG |
| Certification | CE |
| Model Number | VFD500 |
| Minimum Order Quantity | 1 |
| Price | Negotiable |
| Packaging Details | the power less than 45kw use Carton, starting from 45kw use Wooden case |
| Delivery Time | 3 days, depend on the order quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 15000pcs per Month |
Product Details
| Product Name | Converter | Power | 0.75kw-710kw |
|---|---|---|---|
| Communication | Modbus485/profinet/canopen | Application | General Application |
| Keypad | LCD+LED | Warranty | 18 Monthes |
| High Light | Variable Frequency Inverters 0.75kw,Variable Frequency Inverters 710kw,710kw Ac Drive VFD |
||
Product Description
Variable Frequency Drive Converter 0.75kw 1.5kw 2.2kw 4kw 5.5kw Vfd Inverters
VEIKONG hot selling VFD
VFD500M is high performance vector control mini vfd
VFD500 is high performacne general vfd
VFD550 is high perfromance special vfd with positional control.
VFD530 is high performance special vfd with lifting function, support 2 PID, support Synchronous and asynchronous motors
VFD500-PV is solar pump inverter.
VFD510 is IP65 inverter
Performance features
- Advanced motor control algorithm
- High performance open loop vector control
- Optimal V/F,and vector control mode
- Excellent ramp slope control
- Fast autotune (less than one minute)
- Overload: 150% rated output current, one minute
Hardware features
- Dual CPU processing, more precise control
- Using the latest generation IGBT
- 0.4k~22kW with standard inner brake unit
- Inner EMC C3 filter with breakpoint design, convenient for access and disconnection, meet different
- PCBA coating process, increase environment adaptability
- Unique control terminals: simple electronic switch set to complete the conversion between source and sink of I/O terminals
- Reference (current) loose, trip or not could be selected
- IGBT thermal design
- Wireless fan block design, easy to replace or maintain
- Connecting auxiliary fan makes the drive suitable for worse environment
Advantages:
1, With inside EMC C3 filter and building-block design for IO extension card and different kinds of PG card
2, Top performance in our industry which represent in torque in less than 1hz 0.5hz 0.25hz 0.1hz and 0hz
it can compare with any domestic chinese brand for output torque.
support PC tools. support modbus485, canopen, profinet communciation.
4, Low noise on motor and fast response for 0.1S acceleration and deceleration without dead zone
5, Reverse and forward free switching
6, Sleeping function and energy saving function as well as in built PLC programming
7, Tension control and torque mode control
8, Support two group motor parameters which can realize two motor switching control
Techincal Parameters:
| Item | Specifiation | |
| Input | Inuput Voltage |
1phase/3phase 220V:200V～240V 3 phase 380V-480V:380V～480V |
| Allowed Voltage fluctuation range | -15%～10% | |
| Input frequency | 50Hz / 60Hz,fluctuation less than 5% | |
| Output | Output Voltage | 3phase:0～input voltage |
| Overload capacity |
General purpose application:60S for 150% of the rated current Light load application:60S for 120% of the rated current |
|
| Control | Control mode |
V/f control Sensorless flux vector control without PG card(SVC) Sensor speed flux vector control with PG card (VC) |
| Operating mode | Speed control,Torque control(SVC and VC) | |
| Speed range |
1:100 (V/f) 1:200( SVC) 1:1000 (VC) |
|
| Speed control accuracy |
±0.5% (V/f) ±0.2% (SVC) ±0.02% (VC) |
|
| Speed response |
5Hz(V/f) 20Hz(SVC) 50Hz(VC) |
|
| frequency range |
0.00～600.00Hz(V/f) 0.00～200.00Hz(SVC) 0.00～400.00Hz(VC) |
|
VEIKONG VFD application:
VEIKONG VFD replace famous brands
Mode Range
| Model |
Power capacity (KVA) |
Input current (A) |
Output current(A) |
Adaptable Motor (KW) |
SIZE | Brake Unit | |
| Heavy load | Light load | ||||||
| Three phase: 380-480V,50/60Hz | |||||||
| VFD500-R75GT4B | 1.5 | 3.4 | 2.5 | 4.2 | 0.75 | SIZE A | Internal |
| VFD500-1R5GT4B | 3 | 5 | 4.2 | 5.6 | 1.5 | ||
| VFD500-2R2GT4B | 4 | 5.8 | 5.6 | 9.4 | 2.2 | ||
| VFD500-4R0G/5R5PT4B | 5.9 | 10.5 | 9.4 | 13.0 | 3.7 | ||
| VFD500-5R5G/7R5PT4B | 8.9 | 14.6 | 13.0 | 17.0 | 5.5 | SIZE B | |
| VFD500-7R5G/011PT4B | 11 | 20.5 | 17.0 | 23.0 | 7.5 | ||
| VFD500-011G/015PT4B | 17 | 26.0 | 25.0 | 31.0 | 11 | SIZE C | Internal |
| VFD500-015G/018PT4B | 21 | 35.0 | 32.0 | 37.0 | 15 | ||
| VFD500-018G/022PT4B | 24 | 38.5 | 37.0 | 45.0 | 18.5 | SIZE D | |
| VFD500-022G/030PT4B | 30 | 46.5 | 45.0 | 57.0 | 22 | ||
| VFD500-030G/037PT4 | 40 | 62.0 | 60.0 | 75.0 | 30 | SIZE E | option |
| VFD500-037G/045PT4 | 50 | 76.0 | 75.0 | 87.0 | 37 | ||
| VFD500-045G/055PT4 | 60 | 92.0 | 90.0 | 110.0 | 45 | SIZE F | |
| VFD500-055G/075PT4 | 75 | 113.0 | 110.0 | 135.0 | 55 | ||
| VFD500-075G/090PT4 | 104 | 157.0 | 152.0 | 165.0 | 75 | SIZE G | |
| VFD500-090G/110PT4 | 112 | 170.0 | 176.0 | 210.0 | 90 | External | |
| VFD500-110G/132PT4 | 145 | 220.0 | 210.0 | 253.0 | 110 | SIZE H | |
| VFD500-132G/160PT4 | 170 | 258.0 | 253.0 | 304.0 | 132 | SIZE I | |
| VFD500-160G/185PT4 | 210 | 320.0 | 304.0 | 360.0 | 160 | ||
| VFD500-185G/200PT4 | 245 | 372.0 | 360.0 | 380.0 | 185 | SIZE J | |
| VFD500-200G/220PT4 | 250 | 380.0 | 380.0 | 426.0 | 200 | ||
| VFD500-220G/250PT4 | 280 | 425.0 | 426.0 | 465.0 | 220 | SIZE K | |
| VFD500-250G/280PT4 | 315 | 479.0 | 465.0 | 520.0 | 250 | ||
| VFD500-280G/315PT4 | 350 | 532.0 | 520.0 | 585.0 | 280 | SIZE L | |
| VFD500-315G/355PT4 | 385 | 585.0 | 585.0 | 650.0 | 315 | ||
| VFD500-355G/400PT4 | 420 | 638.0 | 650.0 | 725.0 | 355 | SIZE M | |
| VFD500-400G/450PT4 | 470 | 714.0 | 725.0 | 820.0 | 400 | ||
| VFD500-450G/500PT4 | 530 | 800.0 | 820.0 | / | 450 | SIZE N | |
| VFD500-500G/560PT4 | 580 | 880.0 | 900.0 | / | 500 | ||
| VFD500-560G/630PT4 | 630 | 950.0 | 980.0 | / | 560 | SIZE O | |
| VFD500-630GT4 | 710 | 1080 | 1120. | / | 630 | SIZE O | |
| VFD500-710GT4 | 790 | 1200 | 1260 | / | 710 | SIZE O | |
| Single phase :220V ,50/60HZ | |||||||
| VFD500-R40GS2 | 1.3 | 6.0 | 3.2 | 5.6 | 0.4 | SIZE A | Inbuilt |
| VFD500-R75GS2 | 2.4 | 11.0 | 5.6 | 8.0 | 0.75 | SIZE A | |
| VFD500-1R5GS2 | 3.5 | 15.0 | 8.0 | 10.6 | 1.5 | SIZE A | |
| VFD500-2R2GS2 | 5.5 | 25.0 | 10.6 | 14.0 | 2.2 | SIZE A | |
| VFD500-4R0GS2 | 7.7 | 35.0 | 17.0 | 23.0 | 4.0 | SIZE B | |
| VFD500-5R5GS2 | 8.9 | 53.0 | 25.0 | 31.0 | 5.5 | SIZE C | |
| VFD500-7R5GS2 | 11 | 67.0 | 32.0 | 37.0 | 7.5 | SIZE C | |
