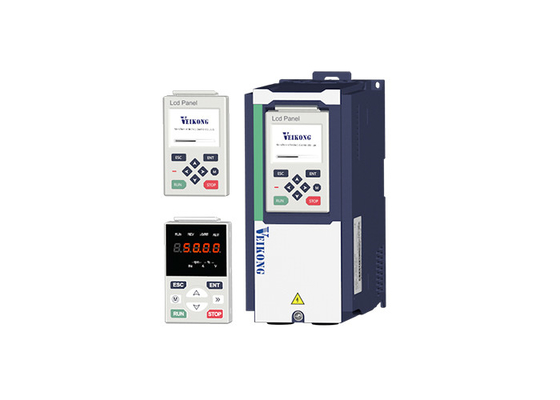

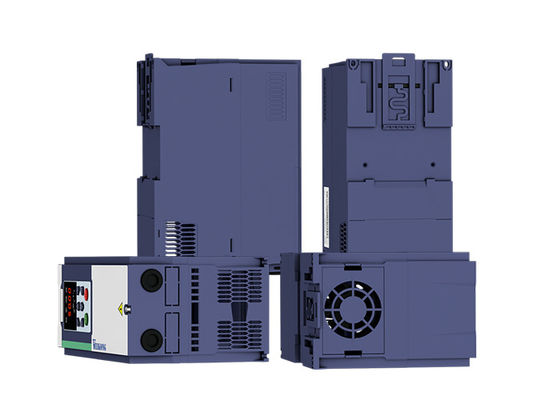

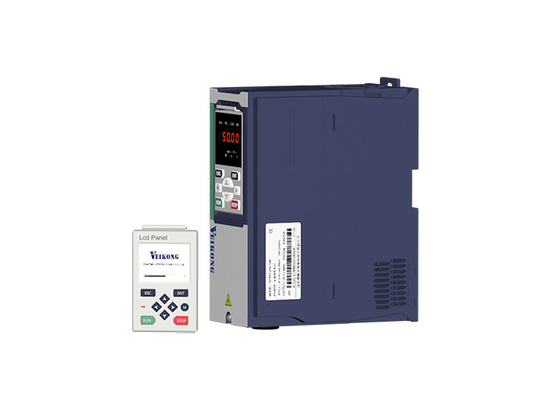

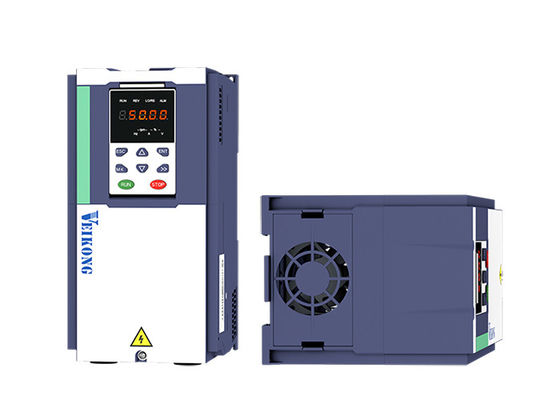

Dry Running Mode Monitoring and Water Level Control for Single Phase Solar Pump Inverter
Place of Origin China
Brand Name VEIKONG
Certification CE ROHS
Model Number VFD500-PV
Minimum Order Quantity 1
Price Negotiable
Packaging Details Carton and Wooden Box
Delivery Time 3 days, depend on the order quantity
Payment Terms Western Union, T/T, L/C, PayPal
Supply Ability 15000pcs per Month
Product Details
Features MPPT+PID Product Name 220V MPPT Solar Pump Inverter
Size Depend On Model Input Mode Support AC And DC Input
Warranty 18 Months Weight Depend On Model
Type Depend On Model Color Dark Blue
Series Name Depend On Model Brand Name VEIKONG
Protection Dry Run Protection, Full Water/ Low Water Protection Etc
High Light

IP21 Hybrid Solar Pump Inverter

,

IP21 1 Phase Solar Inverter

,

MPPT Hybrid Solar Pump Inverter

Product Description

220V MPPT Solar Pump Inverter Support Hybrid System With 18 Months Warranty

Product Features:



1. Built-in high precision PV array maximum power point tracking MPPT algorithms


2. Dry running mode monitoring, treatment Tank water level control


3. LED displays the real time situation and the parameter of system


4. Based on RS485 real time remote control system


5. Fast installation design, no need extra maintenance


6. Built-in full protection and diagnostic mechanism.


7. Self protection against over-flow or dry up.


8. Dry protection : If no water, the water pump will stop working automaticly and when the
water comes, starts to working automaticly.


9. Automatic working: (When the sunshine not good then pumps slow down automatically
and when sun become good then go on working.)


10. Save cost/directly connect solar panel: solar panle connects solar inverter directly and
to the pump. control the water level in the tank. No enough water working fast, enough
water will stop working automaticly. No batteries need.


11. The solar inverter supports AC&DC input:
If no sun, keep raining days, can use grid AC input work the pumps by setting parameter.


Electrical Specifications





220V

380V

Max input DC voltage

450V

810V

DC voltage range

150~450VDC

300~810VDC

Normal working DC voltage

260V-400V

400V-650V

Recommended input mppt voltage

330V

550V

MPPT efficiency

>99%

Rated output voltage

1/3-phase 220VAC

3-phase 380-480VAC

Output frequency range

50/60Hz

Max efficiency of the machine

99%

Ambient temperature range

-10 °C~50 °C, derating if the temperature is above 40 °C

Cooling method

Air cooling

Protection degree

IP20/IP21

Altitude

Below 1000m; above 1% for every additional 100m.

Standard

CE/ROHS


Model Range


Drive model

Max DC input current   (A)

Rated output current (A)

Applicable water pump (kW)

VFD500M-40T00150-PV

6.1

3.7

1.5

VFD500M-40T00220-PV

7.1

5

2.2

VFD500M-40T00400-PV

16.5

9.4

4

VFD500M-40T00550-PV

23.9

13

5.5

VFD500M-40T00750-PV

30.6

17

7.5

VFD500-40T00150-PV

6.1

3.7

1.5

VFD500-40T00220-PV

7.1

5

2.2

VFD500-40T00400-PV

16.5

9.4

4

VFD500-40T00550-PV

23.9

13

5.5

VFD500-40T00750-PV

30.6

17

7.5

VFD50040T01100-PV

39.2

25

11

VFD500-40T01500-PV

49.0

32

15

VFD500-40T01850-PV

57

37

18.5

VFD500-40T02200-PV

69

45

22

VFD500-40T03000-PV

91

60

30

VFD500-40T03700-PV

114

75

37

VFD500-40T04500-PV

146

90

45

VFD500-40T05500-PV

190

112

55

VFD500-40T07500-PV

237

152

75

VFD500-40T09000-PV

273

176

90

VFD500-40T11000-PV

319

210

110

VFD500-40T13200-PV

389

253

132

220V single phase or three phase level

VFD500-20T00075-PV

6.7

4.5

0.75

VFD500-20T00150-PV

9.9

7

1.5

VFD500-20T00220-PV

14.1

10.6

2.2

VFD500-20T00400-PV

22.6

17

4

VFD500M-20T00150-PV

9.9

7

1.5

VFD500M-20T00220-PV

14.1

10.6

2.2


Product Application

Dry Running Mode Monitoring and Water Level Control for Single Phase Solar Pump Inverter 0

Dry Running Mode Monitoring and Water Level Control for Single Phase Solar Pump Inverter 1

Dry Running Mode Monitoring and Water Level Control for Single Phase Solar Pump Inverter 2

FAQ:

1. What should be noticed when installing inverter?
Put the product in a place where is well ventilate, cool, dry and water-proof. Do not stress or put foreign objects into the inverter. Remember to turn on the inverter before turn on the appliance.

2. Where is your factory located?
Our factory is located in Shenzhen, China, you are very welcome to visit our company.
Please feel free to contact us if you need information on road conditions or directions.

3. If pump is 60HZ frequency, how to set max frequency?

Notice: If your motor rated frequency is 60HZ First solution for you, P01.06=P01.08=P11.05=60HZ.
Quick setting and easier way: you should set P00.11=02 If your motor is three phase; if your motor is single phase with capacitor, set P00.11=22; If your motor is single phase without capacitor, set P00.11=32
