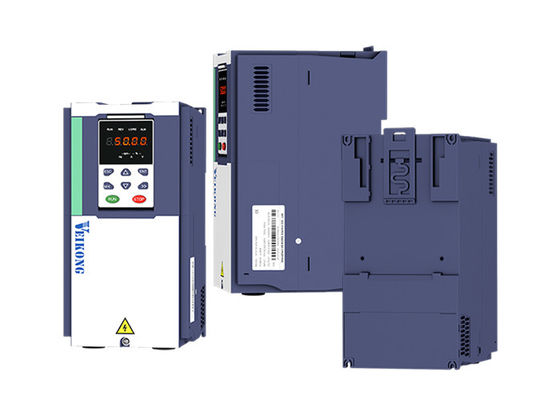

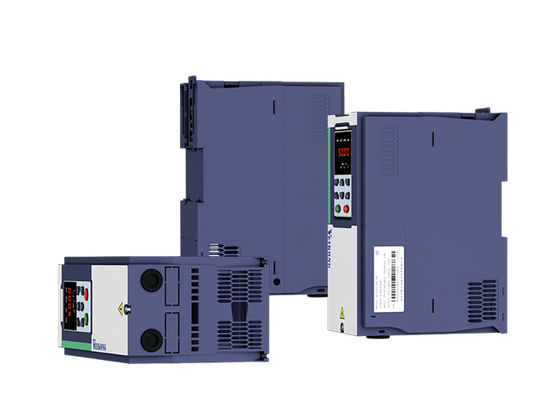

220VAC Single Phase Solar Pump Inverter Solar Pump VFD For Agricultural Irrigation
Product Details
| Product Name | 220V Solar VFD | Size | 215*100*170mm |
|---|---|---|---|
| OEM | Acceptable | Input Mode | Support AC And DC Input |
| Warranty | 18 Months | Weight | 4kg |
| High Light | 220VAC Single Phase Solar Pump Inverter,220VAC Solar Pump VFD,Agricultural Irrigation Solar Pump Inverter |
||
Product Description
220V Single Phase Solar Pump Inverter Solar Pump VFD For Agricultural Irrigation
Product Features:
1.Cover voltage levels 220V AC and 380V AC.
Support single-phase 220V and three-phase 220V/380V pumps, the power from 0.4KW to 37KW.
2.Easy to use
The inverters automatically start or sleep only after being connected to solar battery panels without any parameter setting.
3.Highly reliable for using multiple protective measures
Including PV over-voltage protection, PV polarity reverse warning,and auto derating against over-temperture,which extend product life.
4.Use advanced MPPT algorithms, ensuring that the solar power tracking efficiency reaches 99%
5.Models of 2.2kW or lower can be configured with boost module, meeting low-voltage work requirements. This reduces the use of solar battery panels and therefore the cost.
6.VFD500-PV series can implement auto switch between solar input and grid input by configuring the boost or auto switching cabinet(meeting lightning protection requirements), implementing 24-hour unattended work.
7.Support the configuration of the GPRS module, which implements remote parameter viewing and control by using the mobile APP.
8.Support the cabinet solution for level IP54.
Electrical Specifications
|
|
220V |
380V |
|
Max input DC voltage |
450V |
810V |
|
DC voltage range |
150~450VDC |
300~810VDC |
|
Normal working DC voltage |
260V-400V |
400V-650V |
|
Recommended input mppt voltage |
330V |
550V |
|
MPPT efficiency |
>99% |
|
|
Rated output voltage |
1/3-phase 220VAC |
3-phase 380-480VAC |
|
Output frequency range |
50/60Hz |
|
|
Max efficiency of the machine |
99% |
|
|
Ambient temperature range |
-10 °C~50 °C, derating if the temperature is above 40 °C |
|
|
Cooling method |
Air cooling |
|
|
Protection degree |
IP20/IP21 |
|
|
Altitude |
Below 1000m; above 1% for every additional 100m. |
|
|
Standard |
CE/ROHS |
|
Model Range
|
Drive model |
Max DC input current (A) |
Rated output current (A) |
Applicable water pump (kW) |
|
VFD500M-40T00150-PV |
6.1 |
3.7 |
1.5 |
|
VFD500M-40T00220-PV |
7.1 |
5 |
2.2 |
|
VFD500M-40T00400-PV |
16.5 |
9.4 |
4 |
|
VFD500M-40T00550-PV |
23.9 |
13 |
5.5 |
|
VFD500M-40T00750-PV |
30.6 |
17 |
7.5 |
|
VFD500-40T00150-PV |
6.1 |
3.7 |
1.5 |
|
VFD500-40T00220-PV |
7.1 |
5 |
2.2 |
|
VFD500-40T00400-PV |
16.5 |
9.4 |
4 |
|
VFD500-40T00550-PV |
23.9 |
13 |
5.5 |
|
VFD500-40T00750-PV |
30.6 |
17 |
7.5 |
|
VFD50040T01100-PV |
39.2 |
25 |
11 |
|
VFD500-40T01500-PV |
49.0 |
32 |
15 |
|
VFD500-40T01850-PV |
57 |
37 |
18.5 |
|
VFD500-40T02200-PV |
69 |
45 |
22 |
|
VFD500-40T03000-PV |
91 |
60 |
30 |
|
VFD500-40T03700-PV |
114 |
75 |
37 |
|
VFD500-40T04500-PV |
146 |
90 |
45 |
|
VFD500-40T05500-PV |
190 |
112 |
55 |
|
VFD500-40T07500-PV |
237 |
152 |
75 |
|
VFD500-40T09000-PV |
273 |
176 |
90 |
|
VFD500-40T11000-PV |
319 |
210 |
110 |
|
VFD500-40T13200-PV |
389 |
253 |
132 |
|
220V single phase or three phase level |
|||
|
VFD500-20T00075-PV |
6.7 |
4.5 |
0.75 |
|
VFD500-20T00150-PV |
9.9 |
7 |
1.5 |
|
VFD500-20T00220-PV |
14.1 |
10.6 |
2.2 |
|
VFD500-20T00400-PV |
22.6 |
17 |
4 |
|
VFD500M-20T00150-PV |
9.9 |
7 |
1.5 |
|
VFD500M-20T00220-PV |
14.1 |
10.6 |
2.2 |
Product Application
FAQ:
1. What should be noticed when installing inverter?
Put the product in a place where is well ventilate, cool, dry and water-proof. Do not stress or put foreign objects into the inverter. Remember to turn on the inverter before turn on the appliance.
2. Where is your factory located?
Our factory is located in Shenzhen, China, you are very welcome to visit our company.
Please feel free to contact us if you need information on road conditions or directions.
3. If pump is 60HZ frequency, how to set max frequency?
Notice: If your motor rated frequency is 60HZ First solution for you, P01.06=P01.08=P11.05=60HZ.
Quick setting and easier way: you should set P00.11=02 If your motor is three phase; if your motor is single phase with capacitor, set P00.11=22; If your motor is single phase without capacitor, set P00.11=32
