5.5KW vector control VFD for crusher application ac drive inverters
  • 5.5KW vector control VFD for crusher application ac drive inverters
  • 5.5KW vector control VFD for crusher application ac drive inverters
Place of Origin China
Brand Name VEIKONG
Certification CE
Model Number VFD500-PV
Minimum Order Quantity 1
Price Negotiable
Packaging Details the power less than 45kw use Carton, starting from 45kw use Wooden case
Delivery Time 3 days, depend on the order quantity
Payment Terms L/C, T/T, Western Union
Supply Ability 15000pcs per Month
Product Details
Product Name 5.5kw VFD Voltage 220v/380v
Type AC Inverters Power 5.5kw/7.5hp
Warranty 18 Months Igbt Infineon
Product Description

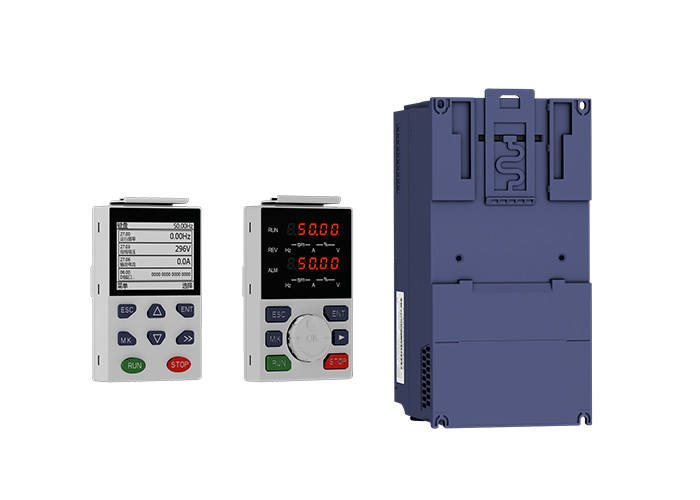

5.5KW vector control VFD for crusher application ac drive inverters





High performance


1. More Accurate Motor Autotuning
2. Advanced open and close loop vector control
3. Perfect voltage and current control, reducing the fault protection times
4  Multiple braking modes and instant stopping
5. 0.75kW~7100kW(Three Phase 400V)



Features

  1. High-performance vector universal platform, brand new motor control algorithm.
  2. Synchronous and asynchronous drives are integrated, open loop and closed loop are comprehensive.
  3. Software and hardware modular design requirements, strong expansion capabilities.
  4. Rich interface accessories, covering various applications.
  5. Book design, save installation space.
  6. Optimize the convenient keyboard design, support the new external keyboard.
  7. The upper and lower straight ventilation ducts are designed to dissipate heat by DC fans.
  8. PCB spraying three-proof paint to ensure product stability and reliability.





VFD500 parameter distribution list



Classification Parameter group Page
Common parameters 00:Basic function Page 30
01:Frequency source selection Page 32
02:Start and stop Page 37
03:Ramp and S curve Page 39
04: Analog and pulse input Page 41
05:Analog and pulse output Page 45
06: Multi-function Digital input (DI) Page 46
07: Multi-function Digital output(DO) Page 49
08:Digital Output setting Page 51
Motor control 10:Encoder type Page 53
11:Motor1 parmeter Page 54
12:Motor1 VFcontrol parameter Page 56
13:Motor1 Vector controlparameter Page 58
14:Torque control Page 59
16:Energy saving control Page 61
Display and protection 20:User-defined parameters Page 62
21:Keypad and display Page 63
22:AC Drive configuration Page 65
23:Drive protection function setting Page 67
24:Motor protection parameter Page 70
25:Fault tracking parameter Page 72
26:Fault recording parameter Page 72
27:Monitoring parameter Page 74
Communication 30:Modbus communication Page 75
Application 40:Process PID Function Page 77
41:Sleep function Page 81
42:Simple PLC Page 82
43:Programmable delay unit Page 84
44:Comparator and logic unit/controller Page 86
45:Multifunction counter Page 90
Motor 2 60:Motor2 basic parameter Page 91
61:Motor2 parameter Page 91
62:Motor2 VF control parameter Page 92
63:Motor2 vector control parameter Page 92



Techincal Parameters:



Item Specifiation
Input Inuput Voltage

1phase/3phase 220V:200V～240V

3 phase 380V-480V:380V～480V
  Allowed Voltage fluctuation range -15%～10%
  Input frequency 50Hz / 60Hz,fluctuation less than 5%
Output Output Voltage 3phase:0～input voltage
  Overload capacity

General purpose application:60S for 150% of the rated current

Light load application:60S for 120% of the rated current
Control Control mode

V/f control

Sensorless flux vector control without PG card(SVC)

Sensor speed flux vector control with PG card (VC)
  Operating mode Speed control,Torque control(SVC and VC)
  Speed range

1:100 (V/f)

1:200( SVC)

1:1000 (VC)
  Speed control accuracy

±0.5% (V/f)

±0.2% (SVC)

±0.02% (VC)
  Speed response

5Hz(V/f)

20Hz(SVC)

50Hz(VC)
  frequency range

0.00～600.00Hz(V/f)

0.00～200.00Hz(SVC)

0.00～400.00Hz(VC)
  Input frequency resolution

Digital setting: 0.01 Hz

Analog setting: maximum frequency x 0.1%
  Startup torque

150%/0.5Hz(V/f)

180%/0.25Hz(SVC)

200%/0Hz(VC)
  Torque control accuracy

SVC:within 5Hz10%,above 5Hz5%

VC:3.0%
  V/f curve

V / f curve type: straight line, multipoint, power function, V / f separation;

Torque boost support: Automatic torque boost (factory setting), manual torque boost
  Frequency giving ramp

Support linear and S curve acceleration and deceleration;

4 groups of acceleration and deceleration time, setting range 0.00s ~ 60000s
  DC bus voltage control

Overvoltage stall control: limit the power generation of the motor by adjusting the output frequency to avoid skipping the voltage fault;



Undervoltage stall control: control the power consumption of the motor by adjusting the output frequency to avoid yaw failure



VdcMax Control: Limit the amount of power generated by the motor by adjusting the output frequency to avoid over-voltage trip;

VdcMin control: Control the power consumption of the motor by adjusting the output frequency, to avoid jump undervoltage fault
  Carrier frequency 1kHz～12kHz(Varies depending on the type)
  Startup method Direct start (can be superimposed DC brake); speed tracking start
  Stop method Deceleration stop (can be superimposed DC braking); free to stop
  Maincontrol function Jog control, droop control, up to 16-speed operation, dangerous speed avoidance, swing frequency operation, acceleration and deceleration time switching, VF separation, over excitation braking, process PID control, sleep and wake-up function, built-in simple PLC logic, virtual Input and output terminals, built-in delay unit, built-in comparison unit and logic unit, parameter backup and recovery, perfect fault record,fault reset, two groups of motor parameters free switching, software swap output wiring, terminals UP / DOWN
