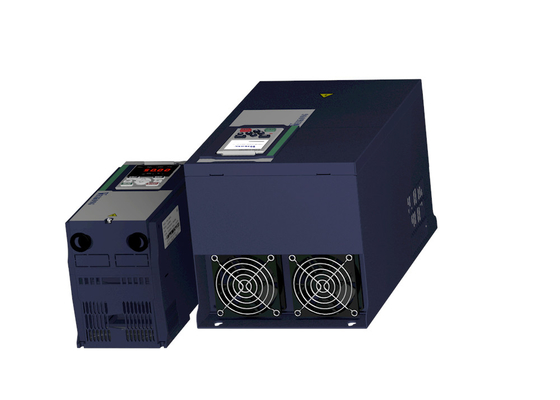

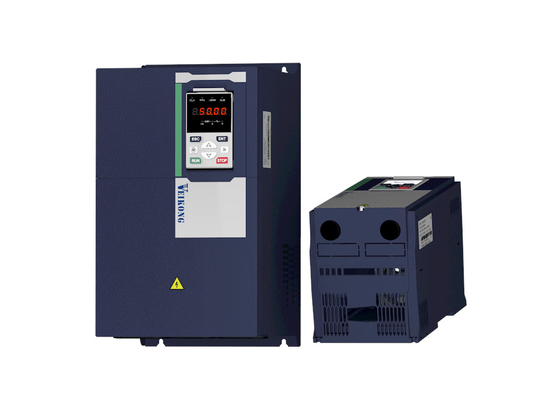

4KW Single Phase Solar Pump Inverter for Solar Water Pump with Automatic Start and Stop
Place of Origin China
Brand Name VEIKONG
Certification CE
Model Number VFD500-PV
Minimum Order Quantity 1
Price Negotiable
Packaging Details Carton and Wooden Box
Delivery Time 3 days, depend on the order quantity
Payment Terms Western Union, T/T, L/C, PayPal
Supply Ability 15000pcs per Month
Product Details
Product Name 220V 4KW Single Phase Solar Pump Inverter Power 4kw

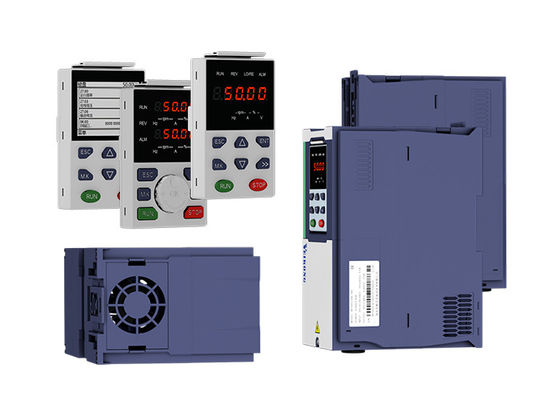

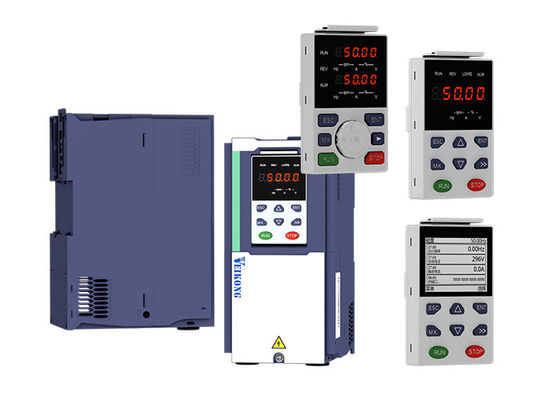

Type Single Phase Keypad LED/LCD
Warranty 18 Months MPPT 99.6%
Special Function MPPT+PID Color Dark Blue
GPRS Support Remote Control PC Tool Software Support
High Light

4000W Single Phase Solar Pump Inverter

,

ROHS Single Phase Solar Pump Inverter

,

4000W solar water pump inverter

Product Description

220V 4KW Single Phase solar pump inverter for solar water pump

Product Features:

1. Compatible with all pump types
2. Easy installation and set-up for serial production

3. Good ROI (Return on Investment) against diesel powered pumping

4. Built-in maximum power point tracking (MPPT)

5. Automatic start and stop with solar radiation

6. Operates without grid directly from photovoltaic (PV) cells

7. Output flow can be read

8. Only need to make connection well with the motor pump and solar panel, and it will automatically start and stop.

Electrical Specifications



220V

380V

Max input DC voltage

450V

810V

DC voltage range

150~450VDC

300~810VDC

Normal working DC voltage

260V-400V

400V-650V

Recommended input mppt voltage

330V

550V

MPPT efficiency

>99%

Rated output voltage

1/3-phase 220VAC

3-phase 380-480VAC

Output frequency range

50/60Hz

Max efficiency of the machine

99%

Ambient temperature range

-10 °C~50 °C, derating if the temperature is above 40 °C

Cooling method

Air cooling

Protection degree

IP20/IP21

Altitude

Below 1000m; above 1% for every additional 100m.

Standard

CE/ROHS


Model Range


Drive modelMax DC input current (A)Rated output current (A)Applicable water pump (kW)
VFD500-20T00075-PV6.74.50.75
VFD500-20T00150-PV9.971.5
VFD500-20T00220-PV14.110.62.2
VFD500-20T00400-PV22.6174
VFD500M-20T00150-PV9.971.5
VFD500M-20T00220-PV14.110.62.2


Product Application

4KW Single Phase Solar Pump Inverter for Solar Water Pump with Automatic Start and Stop 0

4KW Single Phase Solar Pump Inverter for Solar Water Pump with Automatic Start and Stop 1

4KW Single Phase Solar Pump Inverter for Solar Water Pump with Automatic Start and Stop 2

FAQ:

1. What should be noticed when installing inverter?
Put the product in a place where is well ventilate, cool, dry and water-proof. Do not stress or put foreign objects into the inverter. Remember to turn on the inverter before turn on the appliance.

2. Where is your factory located?
Our factory is located in Shenzhen, China, you are very welcome to visit our company.
Please feel free to contact us if you need information on road conditions or directions.

3. If pump is 60HZ frequency, how to set max frequency?

Notice: If your motor rated frequency is 60HZ First solution for you, P01.06=P01.08=P11.05=60HZ.
Quick setting and easier way: you should set P00.11=02 If your motor is three phase; if your motor is single phase with capacitor, set P00.11=22; If your motor is single phase without capacitor, set P00.11=32
