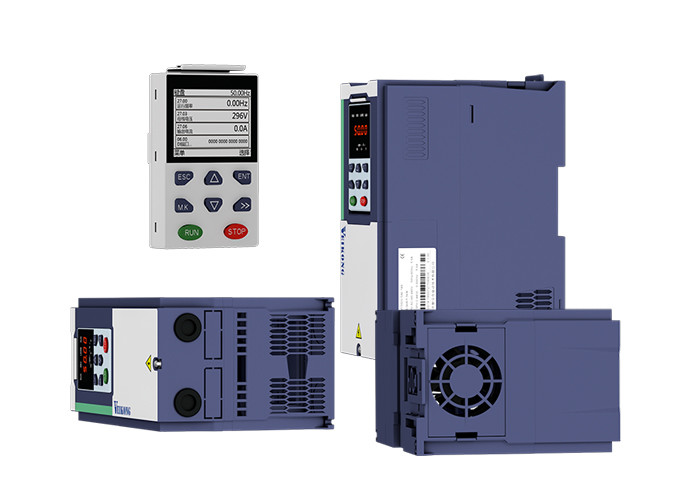

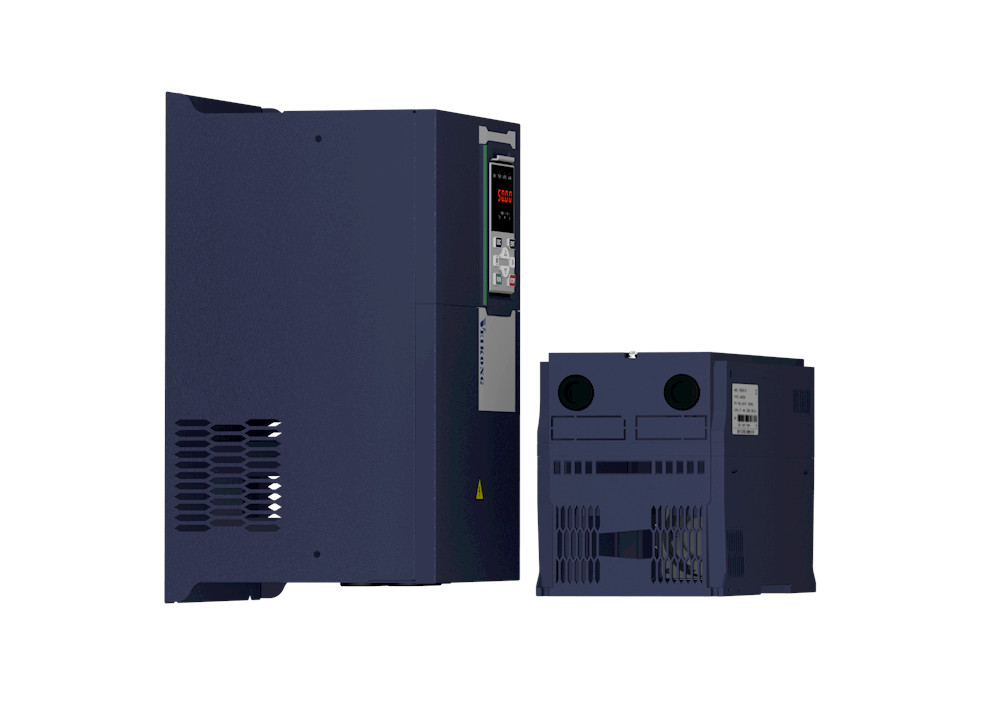

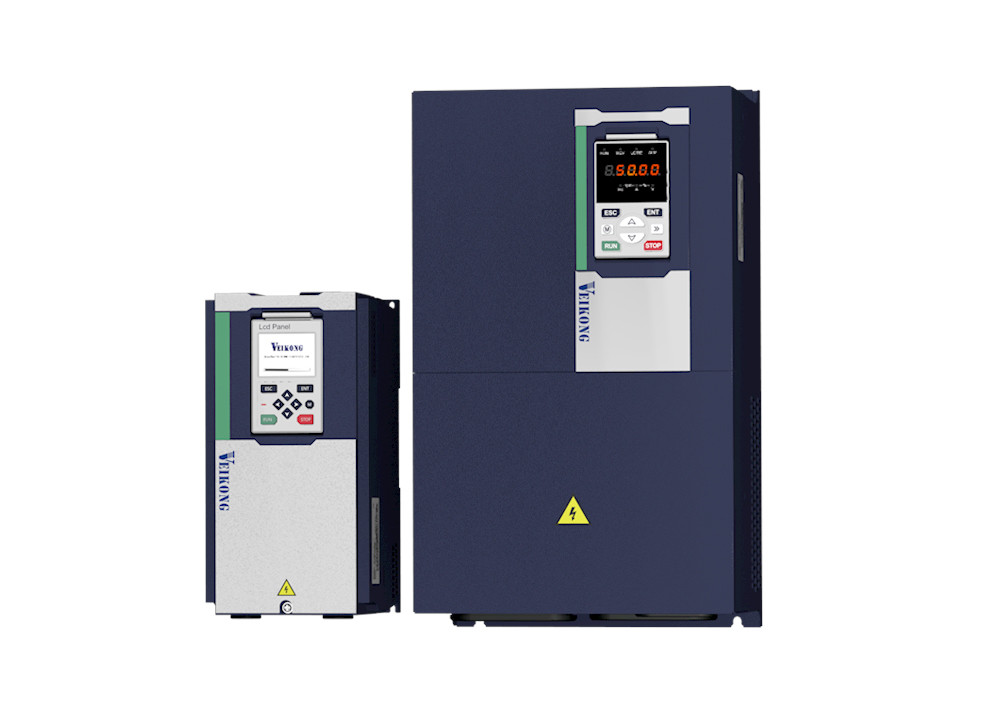

Remote Monitoring Single Phase Solar Pump Inverter with GPRS Module
Place of Origin China
Brand Name VEIKONG
Certification CE
Model Number VFD500-PV
Minimum Order Quantity 1
Price Negotiable
Packaging Details the power less than 45kw use Carton, starting from 45kw use Wooden case
Delivery Time 3 days, depend on the order quantity
Payment Terms L/C, T/T, Western Union
Supply Ability 15000pcs per Month
Product Details
Product Name 2.2kw Solar Pumping Controller Current 10.6A
Output Type Single Phase Type DC-AC
Application Solar Irrigation Application Frequency 50hz/60hz
Remote Control GPRS PC Tool Software Support
Origin China Color Dark Blue
Acc And Dec Of MPPT Yes
High Light

220V 4kw Solar Inverter

,

2.2kw Solar Pumping Controller

,

10.6A 4kw Solar Inverter

Product Description

Solar pumping controller 2.2kw 220v for single phase pump dc-ac power







Key Features:

1, Support single phase/three phase 220V, and three phase 380V solar water pump inverter, power from 0.75kW to 250KW

2, Simply connect the photovoltaic panel to the inverter, no need to set any parameters.

3, It has protection functions such as overvoltage protection, overcurrent protection, dry runing protection, full water protection.


4, Advanced MPPT algorithm. Ensure solar power tracking efficiency can reach 99.02%

5, Supports optional GPRS module, which can realize remote monitoring function of computer webpage and mobile APP

6, Support  PV DC input and grid AC input at same time, which can meet 24 hours of no care work

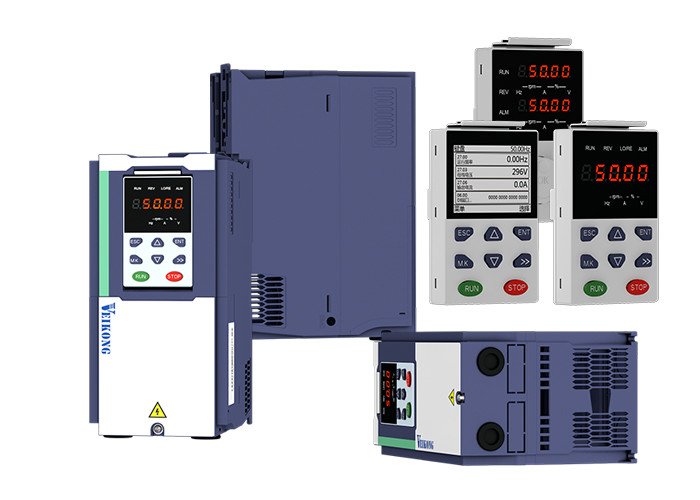

7, Support LCD keypad, it is easier to monitor system situation.



8, Support PMSM pump, and IP20 or IP65 level.



Remote Monitoring Single Phase Solar Pump Inverter with GPRS Module 0



Electrical Specifications:




220V

380V

Max input DC voltage

450V

810V

DC voltage range

150~450VDC

300~810VDC

Normal working DC voltage

260V-400V

400V-650V

Recommended input mppt voltage

330V

550V

MPPT efficiency

>99%

Rated output voltage

1/3-phase 220VAC

3-phase 380-480VAC

Output frequency range

50/60Hz

Max efficiency of the machine

99%

Ambient temperature range

-10 °C~50 °C, derating if the temperature is above 40 °C

Cooling method

Air cooling

Protection degree

IP20/IP21

Altitude

Below 1000m; above 1% for every additional 100m.

Standard

CE/ROHS




Accessories:

1. GPRS (support 2g/3g/4g internet)

Remote Monitoring Single Phase Solar Pump Inverter with GPRS Module 1

2. LCD keypad

Remote Monitoring Single Phase Solar Pump Inverter with GPRS Module 2


3. Output reactor:
Remote Monitoring Single Phase Solar Pump Inverter with GPRS Module 3




Product Application:

Remote Monitoring Single Phase Solar Pump Inverter with GPRS Module 4
Remote Monitoring Single Phase Solar Pump Inverter with GPRS Module 5



Customer feedback:
Remote Monitoring Single Phase Solar Pump Inverter with GPRS Module 6


Package:
If the power is less than 45kw, it is used carton:
Remote Monitoring Single Phase Solar Pump Inverter with GPRS Module 7

If the power is 45kw or more than 45kw, it is used wood case:
Remote Monitoring Single Phase Solar Pump Inverter with GPRS Module 8



Power Range:

Drive model Max DC input current (A) Rated output current (A) Applicable water pump (kW)
VFD500M-40T00150-PV 9 3.7 1.5
VFD500M-40T00220-PV 12 5 2.2
VFD500M-40T00400-PV 16.5 9.4 4
VFD500M-40T00550-PV 23.9 13 5.5
VFD500M-40T00750-PV 30.6 17 7.5
VFD500-40T00150-PV 9 4.2 1.5
VFD500-40T00220-PV 12 5.6 2.2
VFD500-40T00400-PV 16.5 9.4 4
VFD500-40T00550-PV 23.9 13 5.5
VFD500-40T00750-PV 30.6 17 7.5
VFD50040T01100-PV 39.2 25 11
VFD500-40T01500-PV 49.0 32 15
VFD500-40T01850-PV 50 37 18.5
VFD500-40T02200-PV 60 45 22
VFD500-40T03000-PV 81 60 30
VFD500-40T03700-PV 90 75 37
VFD500-40T04500-PV 130 90 45
VFD500-40T05500-PV 150 112 55
VFD500-40T07500-PV 200 152 75
VFD500-40T09000-PV 250 176 90
VFD500-40T11000-PV 300 210 110
VFD500-40T13200-PV 360 253 132
VFD500-40T16000-PV 430 304 160
VFD500-40T18500-PV 500 360 185
VFD500-40T20000-PV 550 380 200
VFD500-40T22000-PV 620 426 220
VFD500-40T25000-PV 680 465 250
220V single phase/three phase level
VFD500-20T00075-PV 6.7 4.5 0.75
VFD500-20T00150-PV 9.9 7 1.5
VFD500-20T00220-PV 14.1 10.6 2.2
VFD500-20T00400-PV 22.6 17 4
VFD500-20T00550-PV 30 25 5.5



Remote Monitoring Single Phase Solar Pump Inverter with GPRS Module 9









Remote Monitoring Single Phase Solar Pump Inverter with GPRS Module 10









Remote Monitoring Single Phase Solar Pump Inverter with GPRS Module 11



FAQ


1. Use level probe in the well for protection against dry running
First solution: See self learning of dry run
Second solution: do it manually Set P24.13=30%-60%(as per real empty load current percentage based on
rated current) and P24.14 P24.16 and P23.21
Third solution: If your sensor is digital switch ,just short D4 and com
Fourth solution: If your float signal is Analog signal, Connect Ai2 and 10V and GND and set P41.00=23 and
P41.03-P41.06

2. How to set minimum frequency ( for example) 30hz and maximum 50HZ
Set P47.05=30HZ and 47.06 to some time and 47.07 to some time. Please refer to details of P47.05-47.07

3. If pump is 60HZ frequency, how to set max frequency?
Notice: If your motor rated frequency is 60HZ First solution for you, P01.06=P01.08=P11.05=60HZ.
Quick setting and easier way: you should set P00.11=02 If your motor is three phase; if your motor is single
phase with capacitor ,set P00.11=22;If your motor is single phase without capacitor ,set P00.11=32
