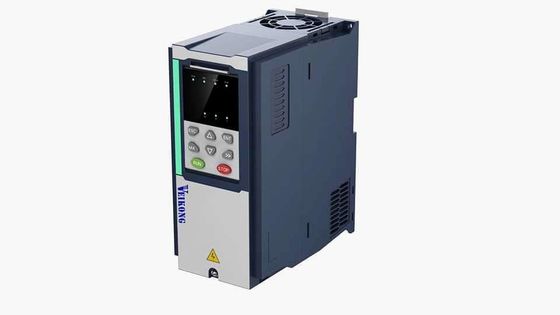

IP20 380V 2200w 3HP Single Phase Solar Pump Inverter With High Efficiency MPPT
| Place of Origin | China |
|---|---|
| Brand Name | VEIKONG |
| Certification | CE |
| Model Number | VFD500-PV |
| Minimum Order Quantity | 1 |
| Price | Negotiable |
| Packaging Details | Paper carton and wooden box for sea and air shipping |
| Delivery Time | 3 days, depend on the real quantity |
| Payment Terms | Western Union, T/T, L/C |
| Supply Ability | 15000pcs per Month |
Product Details
| Product Name | IP20 380V 2.2KW 3HP Solar Pump Inverter | Power | 2.2KW 3HP |
|---|---|---|---|
| Current | 5.6A | Keyboard | LCD/LED |
| Warranty | 18 Months | Input Type | DC/AC |
| High Light | 2200w Single Phase Solar Pump Inverter,380V Single Phase Solar Pump Inverter,IP20 3 hp solar inverter |
||
Product Description
IP20 380V 2.2KW 3HP Solar Pump Inverter With High Efficiency MPPT
Product Features:
1. Accept dual input: DC / AC
2. Built in high precision PV array maximum power point tracking MPPT algorithms
3. Weak sunshine function
4. Dry running mode monitoring, treatment
5. Tank water level control
6. LCD/LED display the real time situation and parameter of system
7. Built-in full protection and disgnostic mechanism
8. Fast installation design, no need extra maintenance
Technical Specifications
|
|
220V |
380V |
|
Max input DC voltage |
450V |
810V |
|
DC voltage range |
150~450VDC |
300~810VDC |
|
Normal working DC voltage |
260V-400V |
400V-650V |
|
Recommended input mppt voltage |
330V |
550V |
|
MPPT efficiency |
>99% |
|
|
Rated output voltage |
1/3-phase 220VAC |
3-phase 380-480VAC |
|
Output frequency range |
50/60Hz |
|
|
Max efficiency of the machine |
99% |
|
|
Ambient temperature range |
-10 °C~50 °C, derating if the temperature is above 40 °C |
|
|
Cooling method |
Air cooling |
|
|
Protection degree |
IP20/IP21 |
|
|
Altitude |
Below 1000m; above 1% for every additional 100m. |
|
|
Standard |
CE/ROHS |
|
Model Range
|
Drive model |
Max DC input current (A) |
Rated output current (A) |
Applicable water pump (kW) |
|
VFD500M-40T00150-PV |
6.1 |
3.7 |
1.5 |
|
VFD500M-40T00220-PV |
7.1 |
5 |
2.2 |
|
VFD500M-40T00400-PV |
16.5 |
9.4 |
4 |
|
VFD500M-40T00550-PV |
23.9 |
13 |
5.5 |
|
VFD500M-40T00750-PV |
30.6 |
17 |
7.5 |
|
VFD500-40T00150-PV |
6.1 |
3.7 |
1.5 |
|
VFD500-40T00220-PV |
7.1 |
5 |
2.2 |
|
VFD500-40T00400-PV |
16.5 |
9.4 |
4 |
|
VFD500-40T00550-PV |
23.9 |
13 |
5.5 |
|
VFD500-40T00750-PV |
30.6 |
17 |
7.5 |
|
VFD50040T01100-PV |
39.2 |
25 |
11 |
|
VFD500-40T01500-PV |
49.0 |
32 |
15 |
|
VFD500-40T01850-PV |
57 |
37 |
18.5 |
|
VFD500-40T02200-PV |
69 |
45 |
22 |
|
VFD500-40T03000-PV |
91 |
60 |
30 |
|
VFD500-40T03700-PV |
114 |
75 |
37 |
|
VFD500-40T04500-PV |
146 |
90 |
45 |
|
VFD500-40T05500-PV |
190 |
112 |
55 |
|
VFD500-40T07500-PV |
237 |
152 |
75 |
|
VFD500-40T09000-PV |
273 |
176 |
90 |
|
VFD500-40T11000-PV |
319 |
210 |
110 |
|
VFD500-40T13200-PV |
389 |
253 |
132 |
|
220V single phase or three phase level |
|||
|
VFD500-20T00075-PV |
6.7 |
4.5 |
0.75 |
|
VFD500-20T00150-PV |
9.9 |
7 |
1.5 |
|
VFD500-20T00220-PV |
14.1 |
10.6 |
2.2 |
|
VFD500-20T00400-PV |
22.6 |
17 |
4 |
|
VFD500M-20T00150-PV |
9.9 |
7 |
1.5 |
|
VFD500M-20T00220-PV |
14.1 |
10.6 |
2.2 |
