220V 380v 7.5KW 10HP Single Phase Motor Vfd Drive Variable Frequency Device
Place of Origin CHINA
Brand Name VEIKONG
Certification CE, ROHS
Model Number VFD500
Minimum Order Quantity 1
Price Please contact quotation
Packaging Details <45kw inverter be used carton package, ≥45kw be used wood case package
Delivery Time depends on quantities
Payment Terms T/T, Western Union, L/C
Supply Ability 1000 units per week
Product Details
Name 7.5kw 10hp Vfd Power 7.5kw/10hp
Voltage 220v/380v Frequency 0-2000HZ
Protection Overload,Overvoltage,IP20,Short Circuit,over Heat Igbt Infineon
High Light

10HP Single Phase Motor Vfd Drive

,

7.5KW Single Phase Motor Vfd Drive

,

10HP Variable Frequency Device

Product Description

220V 380v 7.5KW 10HP VFD with vector control ac drive frequency inverter



Product Advantage



1. Our VFD-500 series is vector control, it can run very accurately with faults less than 0.5%.



2. It has perfect protection, for example, over voltage, over current protection, especially the groud protection.



3. It has the optimized algorithm which is easy to use, even those who don't have a good knowledge of Vfd also can operate it without any problems.



4. We were also certificated by the European standard, such as the CE, ISO9001.....



5. If all these still can not fullfil the requirement of our customers, we have the excellent R&D team can design the software program according to your requirement.




Item Specifiation
Input Inuput Voltage

1phase/3phase 220V:200V~240V

3 phase 380V-480V:380V~480V

  Allowed Voltage fluctuation range -15%~10%
  Input frequency 50Hz / 60Hz,fluctuation less than 5%
Output Output Voltage 3phase:0~input voltage
  Overload capacity

General purpose application:60S for 150% of the rated current

Light load application:60S for 120% of the rated current

Control Control mode

V/f control

Sensorless flux vector control without PG card(SVC)

Sensor speed flux vector control with PG card (VC)

  Operating mode Speed control,Torque control(SVC and VC)
  Speed range

1:100 (V/f)

1:200( SVC)

1:1000 (VC)

  Speed control accuracy

±0.5% (V/f)

±0.2% (SVC)

±0.02% (VC)

  Speed response

5Hz(V/f)

20Hz(SVC)

50Hz(VC)

  frequency range

0.00~600.00Hz(V/f)

0.00~200.00Hz(SVC)

0.00~400.00Hz(VC)

  Input frequency resolution

Digital setting: 0.01 Hz

Analog setting: maximum frequency x 0.1%

  Startup torque

150%/0.5Hz(V/f)

180%/0.25Hz(SVC)

200%/0Hz(VC)

  Torque control accuracy

SVC:within 5Hz10%,above 5Hz5%

VC:3.0%

  V/f curve

V / f curve type: straight line, multipoint, power function, V / f separation;

Torque boost support: Automatic torque boost (factory setting), manual torque boost

  Frequency giving ramp

Support linear and S curve acceleration and deceleration;

4 groups of acceleration and deceleration time, setting range 0.00s ~ 60000s

  DC bus voltage control

Overvoltage stall control: limit the power generation of the motor by adjusting the output frequency to avoid skipping the voltage fault;



Undervoltage stall control: control the power consumption of the motor by adjusting the output frequency to avoid yaw failure



VdcMax Control: Limit the amount of power generated by the motor by adjusting the output frequency to avoid over-voltage trip;

VdcMin control: Control the power consumption of the motor by adjusting the output frequency, to avoid jump undervoltage fault

  Carrier frequency 1kHz~12kHz(Varies depending on the type)
  Startup method

Direct start (can be superimposed DC brake); speed tracking start

  Stop method Deceleration stop (can be superimposed DC braking); free to stop
Maincontrol function Jog control, droop control, up to 16-speed operation, dangerous speed avoidance, swing frequency operation, acceleration and deceleration time switching, VF separation, over excitation braking, process PID control, sleep and wake-up function, built-in simple PLC logic, virtual Input and output terminals, built-in delay unit, built-in comparison unit and logic unit, parameter backup and recovery, perfect fault record,fault reset, two groups of motor parametersfreeswitching, software swap output wiring, terminals UP / DOWN
Function Keypad LED Digital keyboard and LCD keypad(option)
Communication

Standard:

MODBUS communication

CAN OPEN AND PROFINET( IN DEVELOPMENT)

PG card Incremental Encoder Interface Card (Differential Output and Open Collector), Rotary transformer Card
Input terminal

Standard:

5 digital input terminals, one of which supports high-speed pulse input up to 50kHz;

2 analog input terminals, support 0 ~ 10V voltage input or 0 ~ 20mA current input;

Option card:

4 digital input terminals

2 analog input terminals.support-10V-+10V voltage input

Output terminal

standard:

1 digital output terminal;

1 high-speed pulse output terminal (open collector type), support 0 ~ 50kHz square wave signal output;

1 relay output terminal(second relay is an option )

2 analog output terminals, support 0 ~ 20mA current output or 0 ~ 10V voltage output;

Option card: 4 digital output terminals

Protection Refer to Chapter 6 "Troubleshooting and Countermeasures" for the protection function
Environment Installation location Indoor, no direct sunlight, dust, corrosive gas, combustible gas, oil smoke, vapor, drip or salt.
Altitude 0-3000m.inverter will be derated if altitude higher than1000m and rated output current will reduce by 1% if altitude increase by 100m
Ambient temperature -10°C~ +40°C,maximum 50°C (derated if the ambient temperature is between 40°C and 50°C)Rated output current decrease by 1.5% if temperature increase by 1°C
Humidity Less than 95%RH, without condensing
Vibration Less than 5.9 m/s2 (0.6 g)
Storage temperature -20°C ~ +60°C
Others Installation Wall-mounted, floor-controlled cabinet, transmural
Protection level IP20
cooling method Forced air cooling
EMC CE ROHS

Internal EMC filter

Complies with EN61800-3

Category C3

3rd Environment



Replace famous brands vfd in general application.

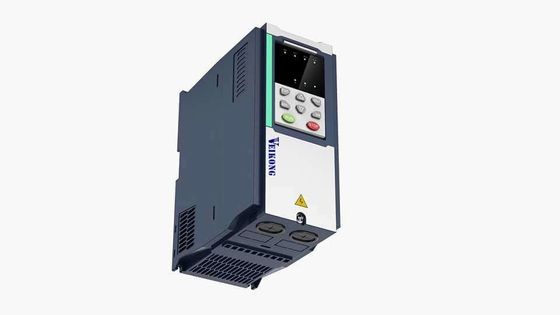

220V 380v 7.5KW 10HP Single Phase Motor Vfd Drive Variable Frequency Device 0
