Customizable Settings VFD Variable Frequency Drive for 132kw 180hp Inverters
Place of Origin CHINA
Brand Name VEIKONG
Certification CE, ROHS
Model Number VFD500-132G/160GT4
Minimum Order Quantity 1
Price negotiable
Packaging Details <45kw inverter be used carton package, ≥45kw be used wood case package
Delivery Time depends on quantities
Payment Terms T/T, Western Union, L/C
Supply Ability 1000 units per week
Product Details
Voltage 380v/480v Power 132Kw
Application Crusher Warranty 18 Months
Display LED,LCD Igbt Infineon
Inner Design IGBT Module Color Dark Blue
Brand VEIKONG Application General Purpose
Original China
High Light

180hp VFD Variable Frequency Drive

,

132kw VFD Variable Frequency Drive

,

Crusher Variable Frequency Drive

Product Description

VFD132kw 180hp Variable Frequency Drive Inverters for crusher


Company introduction

At VEIKONG, we are a leading technology company that has been growing steadily since our inception in 2014. Our broad portfolio of products includes Variable Frequency Drives, Photovoltaic Solar Pump Inverters, and Soft Starters.

Among our flagship products is our Soft Starter, which offers efficient and reliable startup for motors and other equipment. This device reduces electrical stress on equipment during startup, which prolongs lifespan and mitigates equipment failures. Our Soft Starter is perfect for a variety of applications, including HVAC systems, compressors, pumps, and more.

We understand that our customers' needs are diverse, which is why we offer a range of Soft Starters tailored to fit their unique requirements. Our Soft Starter is easy to install, simple to use, and built for harsh environments, making it an ideal solution for any application.

At VEIKONG, we are committed to delivering high-quality products and excellent customer service. Our expert team works hard to ensure our Soft Starters are of the highest quality possible, and our customer service team is always on hand to provide support and advice when it's needed.

In conclusion, VEIKONG's Soft Starter is an innovative and reliable solution for reducing the stress and load on equipment, extending the lifespan of machinery, and reducing energy consumption. Our product is designed to meet the specific requirements of each unique application, making it the perfect solution for a range of applications. With VEIKONG, you can always expect exceptional quality, excellent customer service, and cutting-edge technology.
Advantages of VFD Variable Frequency Drive


1. Compact Structure Feature Concise

2. Excellent Performance Stable Quality

3. Output Voltage Stabilization AVR Funtion

4. Wide Voltage Input

5. Support Keyboard Exportation

6. Double Analog Input

7. Built-in Filter

8. Built-in PID Controller


  Stop method Deceleration stop (can be superimposed DC braking); free to stop
Maincontrol function Jog control, droop control, up to 16-speed operation, dangerous speed avoidance, swing frequency operation, acceleration and deceleration time switching, VF separation, over excitation braking, process PID control, sleep and wake-up function, built-in simple PLC logic, virtual Input and output terminals, built-in delay unit, built-in comparison unit and logic unit, parameter backup and recovery, perfect fault record,fault reset, two groups of motor parametersfreeswitching, software swap output wiring, terminals UP / DOWN
Function Keypad LED Digital keyboard and LCD keypad(option)
Communication

Standard:
MODBUS communication
CAN OPEN AND PROFINET( IN DEVELOPMENT)

PG card Incremental Encoder Interface Card (Differential Output and Open Collector), Rotary transformer Card
Input terminal

Standard:
5 digital input terminals, one of which supports high-speed pulse input up to 50kHz;
2 analog input terminals, support 0 ~ 10V voltage input or 0 ~ 20mA current input;
Option card:
4 digital input terminals
2 analog input terminals.support-10V-+10V voltage input

Output terminal

standard:
1 digital output terminal;
1 high-speed pulse output terminal (open collector type), support 0 ~ 50kHz square wave signal output;
1 relay output terminal(second relay is an option )
2 analog output terminals, support 0 ~ 20mA current output or 0 ~ 10V voltage output;
Option card: 4 digital output terminals

Protection Refer to Chapter 6 "Troubleshooting and Countermeasures" for the protection function
Environment Installation location Indoor, no direct sunlight, dust, corrosive gas, combustible gas, oil smoke, vapor, drip or salt.
Altitude 0-3000m.inverter will be derated if altitude higher than1000m and rated output current will reduce by 1% if altitude increase by 100m
Ambient temperature -10°C~ +40°C,maximum 50°C (derated if the ambient temperature is between 40°C and 50°C)Rated output current decrease by 1.5% if temperature increase by 1°C
Humidity Less than 95%RH, without condensing
Vibration Less than 5.9 m/s2 (0.6 g)
Storage temperature -20°C ~ +60°C
Others Installation Wall-mounted, floor-controlled cabinet, transmural
Protection level IP20
cooling method Forced air cooling
EMC CE ROHS

Internal EMC filter
Complies with EN61800-3
Category C3
3rd Environment

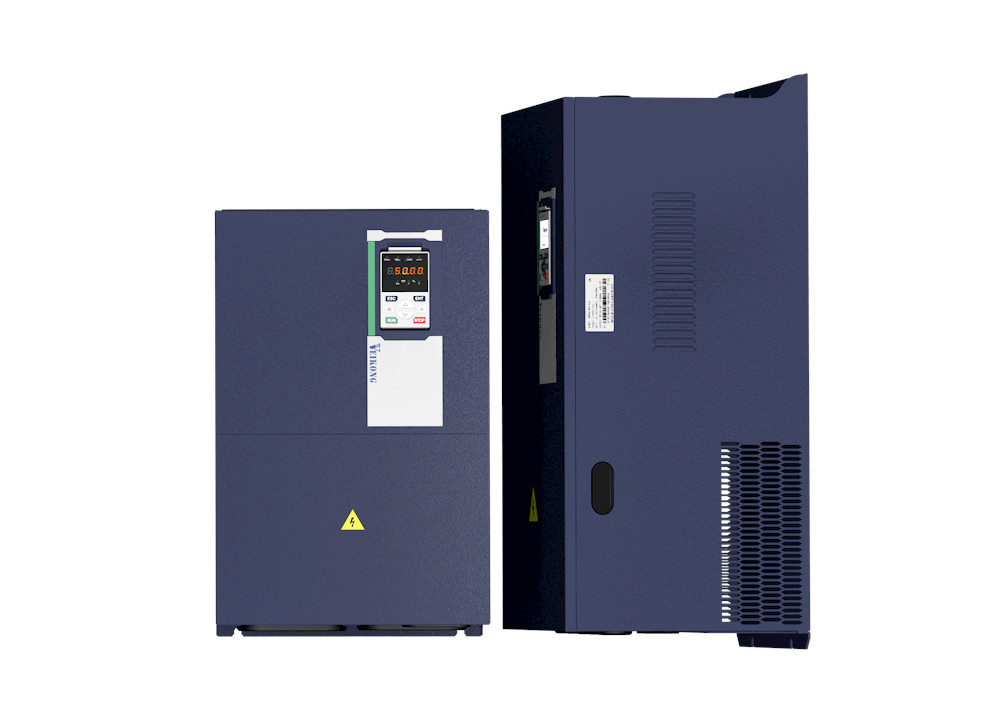

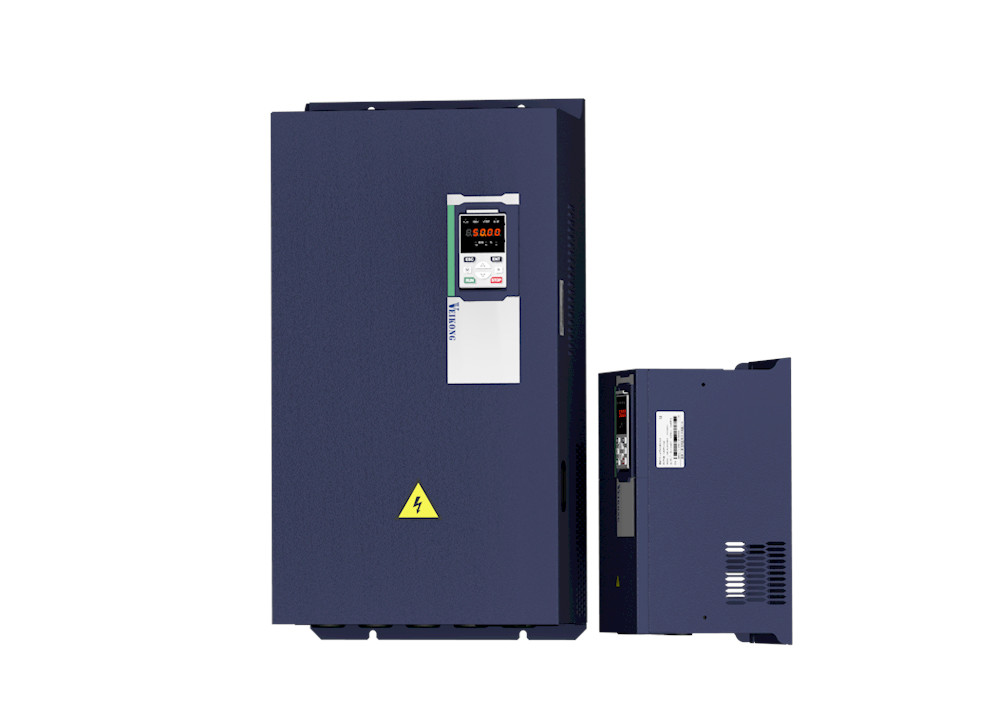

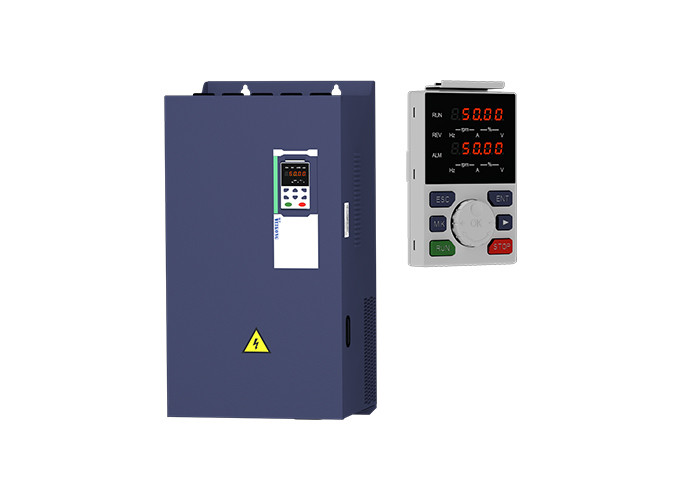

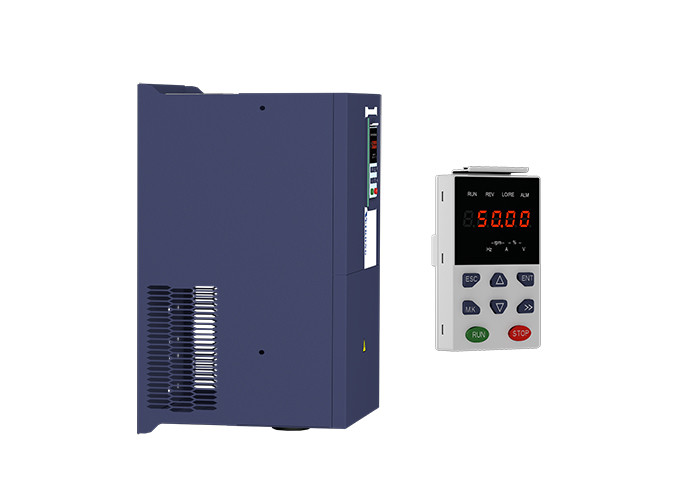

VFD500 132KW-160KW application picture:
