VFD500 Flexible VFD with Reverse and Forward Switching and Built-in PLC Programming
Place of Origin CHINA
Brand Name VEIKONG
Certification CE, ROHS
Model Number VFD500
Minimum Order Quantity 1
Price Please contact quotation
Packaging Details <45kw inverter be used carton package, ≥45kw be used wood case package
Delivery Time depends on quantities
Payment Terms T/T, Western Union, L/C
Supply Ability 1000 units per week
Product Details
Power 0.75kw-710kw Frequency 0-2000HZ
Control Mode V/f Control, Vector Control Type AC Frequency Inverter
Warranty 18 Months Display LED,LCD
Brand VEIKONG OEM Supported
Motor Control Mode Speed Control And Torque Control Original China
MOQ Negotiable
Highlight

380V VFD Variable Frequency Drive

,

2000HZ VFD Variable Frequency Drive

,

2000HZ electric vfd

Product Description

380V Frequency Drive Electric Power Inverter With Sensorless Current Vector



VEIKONG hot selling VFD

VFD500M is high performance vector control mini vfd

VFD500 is high performacne general vfd

VFD550 is high perfromance special vfd with positional control.

VFD530 is high performance special vfd with lifting function, support 2 PID, support Synchronous and asynchronous motors

VFD500-PV is solar pump inverter.

VFD510 is IP65 invert


VFD500 features and technical data sheet:



1,With inside EMC C3 filter and building-block design for IO extension card and different kinds of PG card

2,Top performance in our industry which represent in torque in less than 1hz 0.5hz 0.25hz 0.1hz and 0hz
it can compare with any domestic chinese brand for output torque.

3,Smooth running and stability, support optional LCD keypad and dual display keypad. support PC tools.

4,Support modbus485, canopen, profinet communciation.

5,Low noise on motor and fast response for 0.1S acceleration and deceleration without dead zone

6,Reverse and forward free switching

7,Sleeping function and energy saving function as well as in built PLC programming

8,Tension control and torque mode control

9,Support two group motor parameters which can realize two motor switching control


VFD500 parameter distribution list



Classification Parameter group Page
Common parameters 00:Basic function Page 30
01:Frequency source selection Page 32
02:Start and stop Page 37
03:Ramp and S curve Page 39
04: Analog and pulse input Page 41
05:Analog and pulse output Page 45
06: Multi-function Digital input (DI) Page 46
07: Multi-function Digital output(DO) Page 49
08:Digital Output setting Page 51
Motor control 10:Encoder type Page 53
11:Motor1 parmeter Page 54
12:Motor1 VFcontrol parameter Page 56
13:Motor1 Vector controlparameter Page 58
14:Torque control Page 59
16:Energy saving control Page 61
Display and protection 20:User-defined parameters Page 62
21:Keypad and display Page 63
22:AC Drive configuration Page 65
23:Drive protection function setting Page 67
24:Motor protection parameter Page 70
25:Fault tracking parameter Page 72
26:Fault recording parameter Page 72
27:Monitoring parameter Page 74
Communication 30:Modbus communication Page 75
Application 40:Process PID Function Page 77
41:Sleep function Page 81
42:Simple PLC Page 82
43:Programmable delay unit Page 84
44:Comparator and logic unit/controller Page 86
45:Multifunction counter Page 90
Motor 2 60:Motor2 basic parameter Page 91
61:Motor2 parameter Page 91
62:Motor2 VF control parameter Page 92
63:Motor2 vector control parameter Page 92




Replace famous brands vfd in general application.

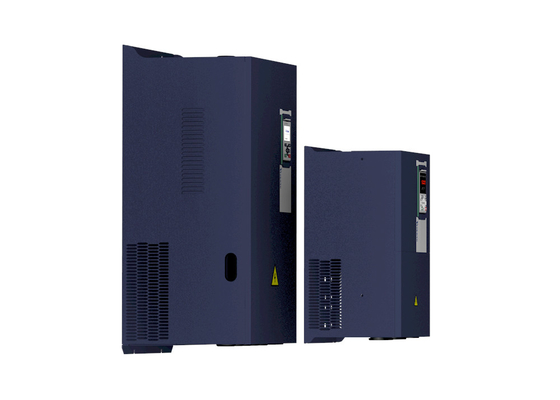

VFD500 Flexible VFD with Reverse and Forward Switching and Built-in PLC Programming 0



VEIKONG big power VFD250KW VFD355KW project

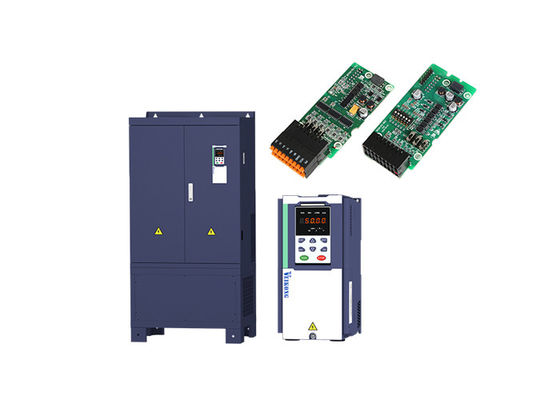

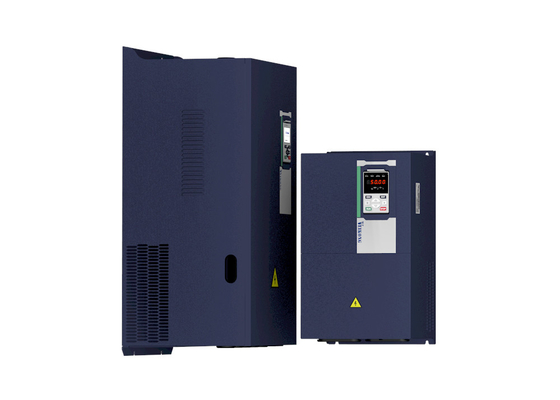

VFD500 Flexible VFD with Reverse and Forward Switching and Built-in PLC Programming 1VFD500 Flexible VFD with Reverse and Forward Switching and Built-in PLC Programming 2

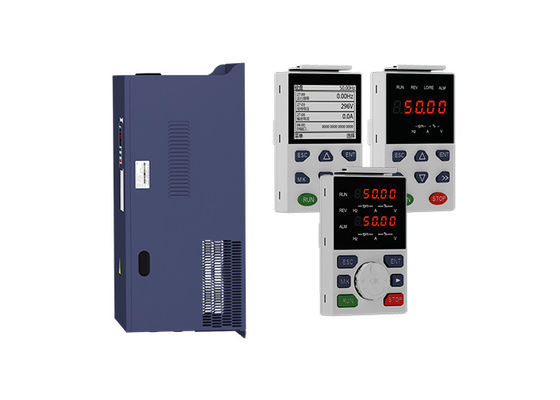

VFD500 Flexible VFD with Reverse and Forward Switching and Built-in PLC Programming 3VFD500 Flexible VFD with Reverse and Forward Switching and Built-in PLC Programming 4
