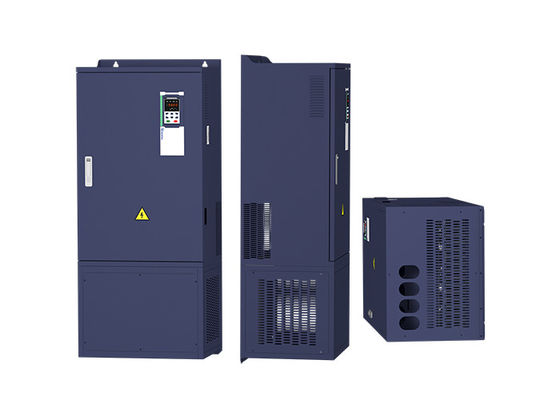

VEIKONG 630kw 710kw VFD Variable Frequency Drive For Heavy Load
| Place of Origin | CHINA |
|---|---|
| Brand Name | VEIKONG |
| Certification | CE, ROHS |
| Model Number | VFD500-5R5GT4B |
| Minimum Order Quantity | 1 |
| Price | Please contact quotation |
| Packaging Details | ＜45kw inverter be used carton package, ≥45kw be used wood case package |
| Delivery Time | depends on quantities |
| Payment Terms | T/T, Western Union, L/C |
| Supply Ability | 1000 units per week |
Product Details
| Control Mode | V/f Control, Vector Control | Protection Level | IP20/ IP65 |
|---|---|---|---|
| Communciaton | Modbus485 Canopen Profinet | Input Voltage | 220V/380V/440V/690Vac |
| Output Frequency | 0~2000 Hz | Type | AC Frequency Inverter |
| High Light | 710kw VFD Variable Frequency Drive,630kw VFD Variable Frequency Drive,Heavy Load VEIKONG VFD |
||
Product Description
VEIKONG 630kw 710kw big power VFD frequency drive inverters for heavy load
VEIKONG hot selling VFD
VFD500M is high performance vector control mini vfd
VFD500 is high performacne general vfd
VFD550 is high perfromance special vfd with positional control.
VFD530 is high performance special vfd with lifting function, support 2 PID, support Synchronous and asynchronous motors
VFD500-PV is solar pump inverter.
VFD510 is IP65 inverter
VFD500 features and technical data sheet:
1,With inside EMC C3 filter and building-block design for IO extension card and different kinds of PG card
2,Top performance in our industry which represent in torque in less than 1hz 0.5hz 0.25hz 0.1hz and 0hz
it can compare with any domestic chinese brand for output torque.
3,Smooth running and stability, support optional LCD keypad and dual display keypad. support PC tools.
4,Support modbus485, canopen, profinet communciation.
5,Low noise on motor and fast response for 0.1S acceleration and deceleration without dead zone
6,Reverse and forward free switching
7,Sleeping function and energy saving function as well as in built PLC programming
8,Tension control and torque mode control
9,Support two group motor parameters which can realize two motor switching control
Replace famous brands vfd in general application.
VEIKONG big power 630kw vfd
| 16 Group Energy saving control | ||||
| r16.00 | Electricity meter count (32BIT) | Unit:KW/H | - | ● |
| r16.02 | Output power | Unit:0.1kw,output power will be negative in regen state | - | ● |
| r16.03 | Power factor | -1.000～1.000 | - | ● |
| P16.04 | Electricity meter zero clearing | 0:no function；1111:clear to zero | 0 | ☆ |
| P16.05 | Energy saving control | 0:disable 1:enable |
0 | ★ |
| P16.06 | Energy saving voltage limit | 0%～50%(0% means Energy saving control disable and more than 0% means Energy saving control enable | 0% | ☆ |
| P16.07 | Energy saving filter time | 0.0～10.0s | 2.0s | ☆ |
| Notice:P16.05 is invisible(it is useful in vf control) and When energy saving enabled, the output current can be reduced and thepower loss can be reduced when the load is light.For example, the fan and pump is light loaded, most of the inverters do not have this function, so we are more energy efficient. Energy savings can be achieved when it is light loads or load changes so slow | ||||
VFD500 parameter distribution list:
| Classification | Parameter group | Page |
| Common parameters | 00:Basic function | Page 37 |
| 01:Frequency source selection | Page 39 | |
| 02:Start and stop | Page 45 | |
| 03:Ramp and S curve | Page 49 | |
| 04: Analog and pulse input | Page 51 | |
| 05:Analog and pulse output | Page 55 | |
| 06:Multi-function Digital input (DI) | Page 56 | |
| 07: Multi-function Digital output(DO) | Page 59 | |
| 08:Digital Output setting | Page 62 | |
| Motor control | 10:Encoder type | Page 65 |
| 11:Motor1 parmeter | Page 66 | |
| 12:Motor1 VFcontrol parameter | Page 68 | |
| 13:Motor1 Vector controlparameter | Page 71 | |
| 14:Torque control | Page 73 | |
| 16:Energy saving control | Page 74 | |
| Display and protection | 20:User-defined parameters | Page 75 |
| 21:Keypad and display | Page 77 | |
| 22:AC Drive configuration | Page 79 | |
| 23:Drive protection function setting | Page 81 | |
| 24:Motor protection parameter | Page 85 | |
| 25:Fault tracking parameter | Page 87 | |
| 26:Fault recording parameter | Page 87 | |
| 27:Monitoring parameter | Page 90 | |
| Communication | 30:Modbus communication | Page 90 |
| 31:Canopen communication | Page 92 | |
| Application | 40:Process PID Function | Page 92 |
| 41:Sleep function | Page 98 | |
| 42:Simple PLC | Page 100 | |
| 43:Programmable delay unit | Page 102 | |
| 44:Comparator and logic unit/controller | Page 104 | |
| 45:Multifunction counter | Page 108 | |
| Motor 2 | 60:Motor2 basic parameter | Page 110 |
| 61:Motor2 parameter | Page 111 | |
| 62:Motor2 VF control parameter | Page 111 | |
| 63:Motor2 vector control parameter | Page 111 |
