900V DC VEIKONG Solar pump inverter pump vfd 1HP 2HP 3HP 5HP 7.5HP 10HP
Place of Origin China
Brand Name VEIKONG
Certification CE
Model Number VFD500-PV
Minimum Order Quantity 5
Price Negotiable
Packaging Details the power less than 45kw use Carton, starting from 45kw use Wooden case
Delivery Time depend on the order quantity
Payment Terms L/C, T/T, Western Union
Supply Ability 15000pcs per Month
Product Details
Product Name SOLAR PUMP INVERTER Display LED+LCD
Efficiency MPPT99.99% Protection Level IP20 / IP65
Warranty 18 Monthes OEM YES
Product Description

900V DC VEIKONG Solar pump inverter pump vfd 1HP 2HP 3HP 5HP 7.5HP 10HP




Product Details and Features:

1. Maximizing power generation efficiency of solar modules with the use of advanced MPPT
control technology and automatic MPPT voltage tracking
2. Adjust water outflow of pumps quickly on basis of sunlight intensity change
3. Automatic hibernation and wake up
(1) Hibernate at high water level and wake up at low water lever
(2) Hibernate at sunrise and sunset and wake up at strong sunlight
4. Built-in C3 EMC filter and DSP technology and Infineon PIM design,with functions of light
weak protection,dry run and low voltage,full water warning, overvoltage and overtemperature
protection
5. Advanced calculation for Pump flow and LCD monitoring display
6. Automatic running without any commisioning in keypad control and GPRS monitoring
option(as option)
7. Dual supply capability with change over switch - solar and grid compatible


Accessories:

1. GPRS (support 2g/3g/4g internet)


VEIKONG solar pump inverterGPRS system is a professionamonitoring system platformmanaging solar pump plants

It's convenient to visit real timeand historical data via web orIOS & Android APP anytime andanywhere.

900V DC VEIKONG Solar pump inverter pump vfd 1HP 2HP 3HP 5HP 7.5HP 10HP 0

2. LCD keypad

Standard inverter are with LED keypad,LCD keypad is optional.
LCD keypad can monitor 4 parameters at the same time. LED keypad show one parameter only.
LCD keypad with detailed parameter explain,no need use user manual ,more user friendly.
LCD keypad with copy and update and download function.widely used for government projects and big farms.

900V DC VEIKONG Solar pump inverter pump vfd 1HP 2HP 3HP 5HP 7.5HP 10HP 1


3. Output Reactor and Sine Wave Filter

When the distance between inverter and pump is more than 70m, you need use reactor to protect this system.
900V DC VEIKONG Solar pump inverter pump vfd 1HP 2HP 3HP 5HP 7.5HP 10HP 2

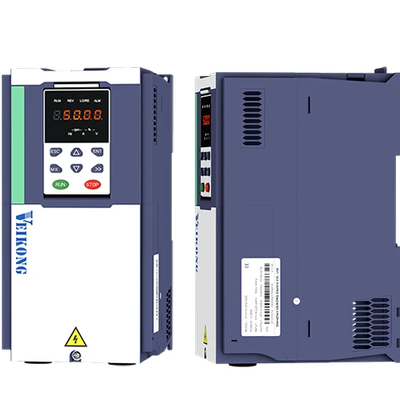

VFD500-PV 5.5KW  7.5kw 380V inverter picture:
900V DC VEIKONG Solar pump inverter pump vfd 1HP 2HP 3HP 5HP 7.5HP 10HP 3







For 220V single phase motor connection



1: Single phase asynchronous motor wiring method (without starting capacitor):

Notice: U is connected to the common end of the starting winding and the working winding, V is connected to the starting winding, and W is connected to the working winding;



Single-phase asynchronous motor if the rotary steering is not correct, you can change the V and W wiring or set P22.13=1.



First solution: Set parameter P11.01=1 (Single phase motor type without capacitor) or second solution: set P00.11=31 if your motor frequency is 50 hz or set P00.11=32 if your motor frequency is 60HZ





For 220V single phase motor connection



2:Single-phase asynchronous motor wiring method (with capacitor)



Notice1:First solution: Connect motor cable to power terminal U and V and enter BSC mode to Set parameter P23.15=0(output phase loss shielding protection) or second solution: set macro P00.11=21 if your motor frequency is 50HZ or set P00.11=22 if your motor frequency is 60HZ
