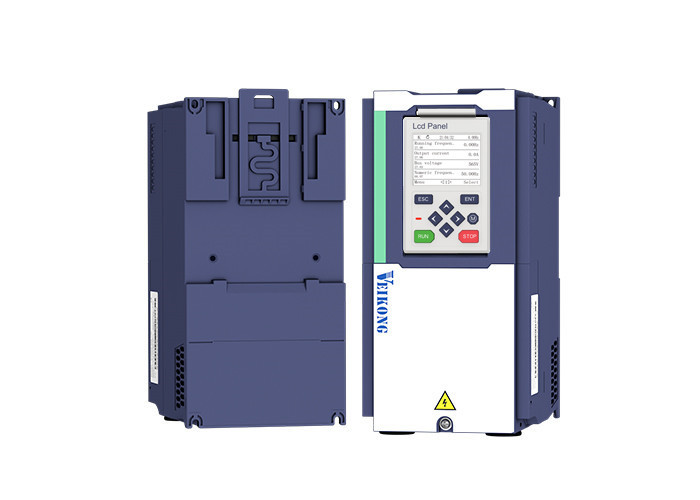

VEIKONG Solar Water Pump Controller Hybrid Pump Inverter 30kw 37kw 45kw 55kw
| Place of Origin | China |
|---|---|
| Brand Name | VEIKONG |
| Certification | CE |
| Model Number | VFD500-PV |
| Minimum Order Quantity | 5 |
| Price | Negotiable |
| Packaging Details | the power less than 45kw use Carton, starting from 45kw use Wooden case |
| Delivery Time | 3 days, depend on the order quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 15000pcs per Month |
Product Details
| Product Name | Solar Pump Controller | Output Type | Single Phase Or Three Phase |
|---|---|---|---|
| Output Power | 30kw 37kw 45kw 55kw | Color | Bule And White |
| Brand | VEIKONG | Frequency | 50/60hz |
| High Light | VEIKONG Solar Water Pump Controller,Hybrid Pump Inverter 55kw,Hybrid Pump Inverter 30kw |
||
Product Description
VEIKONG solar pump inverter controller hybrid inverter 30kw 37kw 45kw 55kw
Electrical Specifications and Power degree
| 220V | 380V | |
| Max input DC voltage | 450V | 810V |
| DC voltage range | 150~450VDC | 300~810VDC |
| Normal working DC voltage | 260V-400V | 400V-650V |
| Recommended input mppt voltage | 330V | 550V |
| MPPT efficiency | >99% | |
| Rated output voltage | 1/3-phase 220VAC | 3-phase 380-480VAC |
| Output frequency range | 50/60Hz | |
| Max efficiency of the machine | 99% | |
| Power range | 220v 0.75kw to 75kw, 380v 1.5kw-160kw | |
| Cooling method | Air cooling | |
| Protection degree | IP20/IP65 | |
| Altitude | Below 1000m; above 1% for every additional 100m. | |
| Standard | CE/ROHS | |
Veikong solar pump inverter high performance product features achieve higher requirement in water supply
1) Built-in C3 EMC filter and DSP technology and Infineon PIM design, with functions of light weak protection, dry run and low voltage, full water warning, overvoltage and overtemperature protection.
2) Support PID function within MPPT control.
3) Hybrid dc and ac power and support one button switch to ac power.
4) Advanced calculation for Pump flow and LCD monitoring display.
5) Automatic running without any commissioning in keypad control and optional GPRS monitoring.
Product Application
Question and Answer
How to make the water pump system work without sunshine?
Usually, solar PV water pump system can meet the needs of pumping water.
If there is no sunshine, the system will not work. But out inverter could also support AC input. So, connect the power grid or diesel power generation to the inverter, the pumping system will work. If necessary, keep switch and interface locations during the system design
How to check and solve basic problem of inverter trips and error
a:Check the total vmp and voc of solar panels ,solar panel technical data
b:Check motor pump power and rated current
c: Check the distance between motor and inverter
d: Check trip record r25.00 r25.01 25.02 25.03 r26.00 r26.01 r26.02 r26.03 r26.08 r26.09 r26.10 r26.11
e: Check troubleshooting fault and find relevant solutions
f : Check if motor insulation has been damaged or motor is blocked
