VEIKONG IP20 IP65 Solar Pump Inverter Hybrid Solar Inverter 10hp 20hp 30hp
Place of Origin China
Brand Name Veikong
Certification CE IEC
Model Number VFD500-PV
Minimum Order Quantity 25
Price Negotiable
Packaging Details Paper carton or wooden case based on different power range
Delivery Time 7 working days in general, depend on quantity
Payment Terms T/T or other payment term based on different request and siutation
Product Details
Protection Level IP20/IP21 Brand Name Veikong
Output Frequency 50/60Hz Display LCD, LED, Shuttle Display With Potentiometer
Input Frequency 50/60Hz Power 0.75kw-710kw
High Light

Solar Pump Inverter With Potentiometer


Hybrid Solar Inverter 30hp


VEIKONG Hybrid Solar Inverter

Product Description

Company Introduction:

Shenzhen Veikong Electric CO,Ltd. a high-tech enterprise which has been specializing in researching, manu
facturing and trading high, medium and low voltage inverter as well as bypass contactor soft starter, providing our
clients with integrated system solutions. We have professional R&D and devoted management team with more than
20 years' experience of theoretical research, product development and quality management. Veikong is also one of
the first independent AC drives company in China. We adopt SPWM, sensorless vector control and vector and torque
control technology in our VFD series, which has reached the international advanced standard. The products can
directly replace and be equivalent of Europe and the United States, Japan and other brands, providing customers
with a powerful technical support.

Features of VEIKONG solar pump inverter :

Veikong solar pump inverter high performance product features achieve higher requirement in water supply

1) VEIKONG solar pump inverter GPRS system is a professional monitoring system platform managing solar pump plants.

2) MPPT and PID function which is special in the whole market.

3) Support hybrid mode, both AC and DC.

4) Provide multi protection for the whole water system.

Technical Specification:

Product series VFD500-40T00750-PV
Product rated current 17A
Product rated power range 7.5kw
Recommended input voltage 530V
MPPT efficiency 99%
Input channel 2
Rated output voltage 3-phase 380VAC
Output frequency range 0~60Hz
Max efficiency of the machine 97%
Ambient temperature range -10°C~50°C,deratingif thetemperatureis above 40 °C
Cooling method Air cooling
Protection degree IP20
Altitude Below 1000m;above1%for everyadditional100m

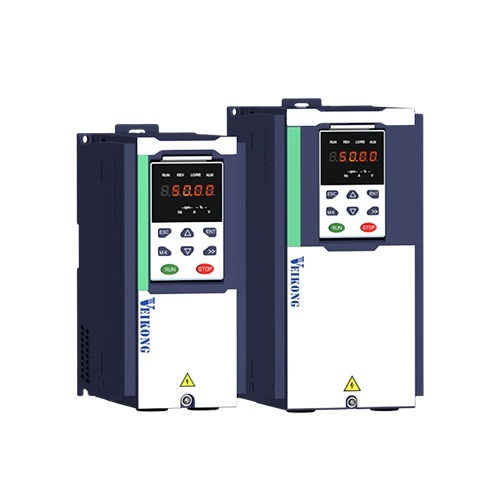

VEIKONG IP20 IP65 Solar Pump Inverter Hybrid Solar Inverter 10hp 20hp 30hp 0

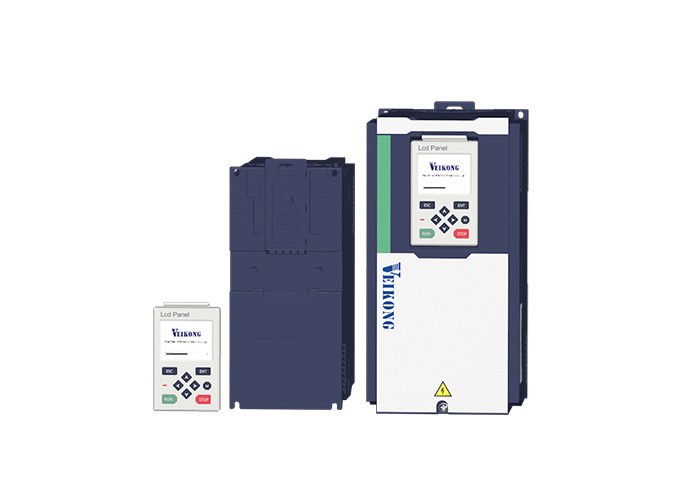

VEIKONG IP20 IP65 Solar Pump Inverter Hybrid Solar Inverter 10hp 20hp 30hp 1


Support and Services:

We provide 18 months warranty, technical support and service for the Solar Pump Inverter, including:

  • Troubleshooting and repair services
  • Software updates
  • Product maintenance and servicing
  • Hardware upgrades
  • Installation assistance
  • User guides and manuals
  • Phone, email and online support


Technical Questions and solutions

1) Could it replace my previous PV pumping inverter?
Yes, of course. Selecting inverter model according to the rated voltage, current and power of the water pump. A bit more is better. Then take off the old one and put ours on, the system will work.

2) How to design solar PV water pump system?
Key point: the rated VOC and VMP and power of the PV Array need to match the input range of the inverter. If needed, we will provide technical support online.


3) How to make the water pump system work without sunshine?

Usually, solar PV water pump system can meet the needs of pumping water.
If there is no sunshine, the system will not work. But out inverter could also support AC input. So, connect the power grid or diesel power generation to the inverter, the pumping system will work. If necessary, keep switch and interface locations during the system design
