Efficient MPPT Solar Pump Inverter VFD Solar Inverter IP20 For Solar Irrigation System
Place of Origin China
Brand Name VEIKONG
Certification CE
Model Number VFD500-PV
Minimum Order Quantity 1
Price Negotiable
Packaging Details Carton and wooden box
Delivery Time 3 days, depend on the order quantity
Payment Terms Western Union, T/T, L/C, D/A, D/P, PayPal
Supply Ability 15000pcs per Month
Product Details
Rated Current Depend On Model Max. Output Current Depend On Model
Output Voltage Pump Frequency Range Inverter
Ambient Temperature -10℃~+50℃ Input Voltage Solar
Protection Level IP20 Max. Input Voltage 380V
High Light

Efficient MPPT Solar Pump Inverter


VFD Solar Inverter IP20


Irrigation System VFD Solar Inverter

Product Description

18.5KW 22KW 30KW VFD Solar Inverter For Solar Irrigation System
18.5KW 22KW 30KW Solar Pumping Inverter For Solar Irrigation System
Features OF VFD Solar Inverter:

Trial run(How to start solar pump inverter)
Make sure all cables connections of solar panel and pump motor correct and no need to set any parameter, if you want to set parameter, you can do as follows.
1) (Keypad control):Set motor parameter P11.02- P11.06 as per motor pump name plate If dry run protection is required, measure the unload protection current(see details in user manual chapter for dry run function) If dry run protection not required then miss this step and go to step 2.
2) Set other related special solar pump parameters for optimization if needed.
3) After trial run finishing, if motor pump still not output water when inverter is running more than 40 Hz. Please disconnect the power supply and replace any two-phase wiring of the motor.
1) Support Maximum mppt efficiency which can be up to 99%
2) Special solar mppt mode and PID mode which most products can not achieve in China
3) Support LCD display with English and Spanish
4) Support GPRS remote control
5) Support hybrid AC and DCSupport Marco mode
6) Support dry run protection
7) Support full water and low water protectionSupport one button to switch AC

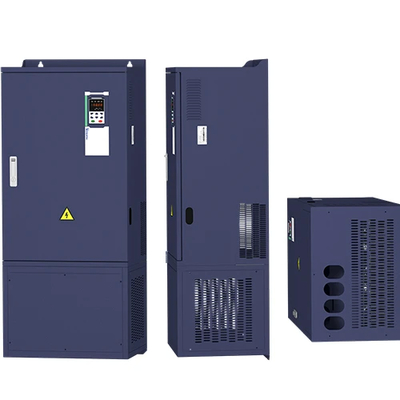

Efficient MPPT Solar Pump Inverter VFD Solar Inverter IP20 For Solar Irrigation System 0


Electrical Specifications


Max input DC voltage450V810V
DC voltage range150~450VDC300~810VDC
Normal working DC voltage260V-400V400V-650V
Recommended input mppt voltage330V550V
MPPT efficiency>99%
Rated output voltage1/3-phase 220VAC3-phase 380-480VAC
Output frequency range50/60Hz
Max efficiency of the machine99%
Ambient temperature range-10 °C~50 °C, derating if the temperature is above 40 °C
Cooling methodAir cooling
Protection degreeIP20/IP21
AltitudeBelow 1000m; above 1% for every additional 100m.

Noted: We suggest solar panel power should be 1.3-1.4 times higher than solar pump power ,and solar pump inverter power should be higher level than solar pump. When solar pump distance to inverter higher than 100m,it should be equipped with Output reactor or higher level power inverter .for Solar panel,l total VOC less than Maximum DC voltage of inverter and Solar panel vmp is recommend 530V for 380V pump and 305V for 220V pump

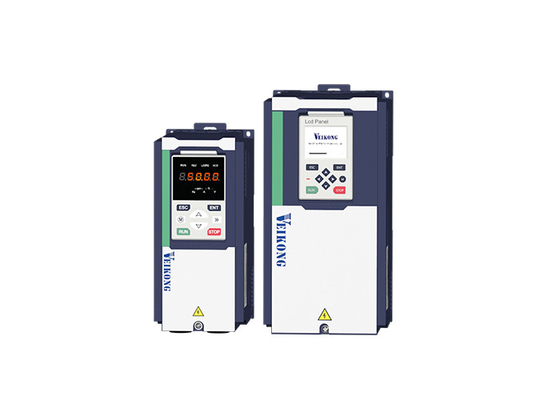

Efficient MPPT Solar Pump Inverter VFD Solar Inverter IP20 For Solar Irrigation System 1
Efficient MPPT Solar Pump Inverter VFD Solar Inverter IP20 For Solar Irrigation System 2
Efficient MPPT Solar Pump Inverter VFD Solar Inverter IP20 For Solar Irrigation System 3
1. How to achieve Automatic start after stop?
If it is controlled by keyboard no need to set any parameter. If you want to control by external switch
As the default control mode is keypad control, First set P00.06=1 and use a wire or switch to connect com and DI1,When the switch is closed, the drive run, when the switch is open, the drive stop
2. Does the product need to set a lot of parameters?
No, it doesn't. The inverter has a self-adaptive and self-learning function. It is automatic start and stop, you can press Run key to start, or you just wait for P47.03=600S(Default) then it will automatically start
3. How to make the water pump system work without sunshine?
Usually, solar PV water pump system can meet the needs of pumping water.
If there is no sunshine, the system will not work. But out inverter could also support AC input. So, connect the power grid or diesel power generation to the inverter, the pumping system will work. If necessary, keep switch and interface locations during the system design
