Energy Saving 3 Phase Solar Pump Inverter GPRS Monitoring Control Via PC And Mobile
Place of Origin China
Brand Name VEIKONG
Certification CE
Model Number VFD500-PV
Minimum Order Quantity 1
Price Negotiable
Packaging Details Carton and wooden box
Delivery Time 3 days, depend on the order quantity
Payment Terms Western Union, T/T, L/C, D/A, D/P, PayPal
Supply Ability 15000pcs per Month
Product Details
Input Voltage Solar Rated Current Depend On Model
Output Voltage Pump Frequency Range Inverter
Max. Output Voltage 0-480V Protection Level IP20
Rated Efficiency ≥99.6% Storage Temperature -40℃~+85℃
High Light

Energy Saving 3 Phase Solar Pump Inverter


GPRS Monitoring 3 Phase Solar Pump Inverter

Product Description

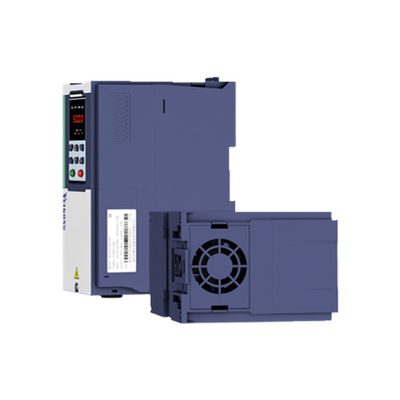

Energy Saving 3 Phase Solar Pump Inverter GPRS Monitoring Control Via PC And Mobile 0


1. Operates without grid directly from photovoltaic (PV) cells


2. Automatic start and stop with solar radiation


3. Built-in maximum power point tracking (MPPT)


4. Easy installation and set-up for serial production


5. Compatible with all pump types


6. Good ROI (Return on Investment) against diesel powered pumping


7. Compact and uniform drive module design (IP20)


8. Dual supply capability with change over switch - solar and grid compatible


9. Sensorless vector control of induction motors and permanent magnet motors


10. Energy saving function and dry run self learning function


11. GPRS monitoring control via PC and Mobile



Solar Pump Inverter Special Parameters


Function code Name Description Default Property
47 Group solar pumping special group
P00.03 RESET


11:Restore default parameter except for motor parameter and auto-tune related parameter and factory parameter

12:Restore default to factory parameter 13:Clear tripping record

P00.06 Source of the Operation Command




Ø Command source: run,stop,forward,reverse,jog,fast brake stop.etc

P00.07 Numeric frequency setting 00.00Hz~maximum frequency 50.00Hz
P00.11 Application Macro

01:Output three phase 50HZ

02:Output three phase 60hz

21:Output single phase with capacitor 50hz

22:Output single phase with capacitor 60hz

31:Output single phase without capacitor 50hz

32:Output single phase without capacitor 60hz

P01.06 Maximum frequency 10.00~600.00Hz 50.00Hz
P01.08 Upper limit frequency Lower limit frequency-maximum frequency 50.00Hz
P07.03 Relay 1 Output terminal function group(T1A T1B T1C)

0:No function



3:Error1(stop fault)

4:Error2(same as Error1 except undervoltage)

5:Warning output(fault but in running)

P11.01 AC asynchronous motor TYPE

0:Three phase AC asynchronous motor

1:Single phase AC asynchronous motor without starting capacitor

P11.02 Motor rated power


Ø when power is less than 1kw ,0.75kw set to 0.8 as per round up principle ,0.55kw motor set 0.6

Ø when change motor rated power,AC drive will automatically set other parameter of motor name plate and motor model parameter be careful to use

P11.03 Motor rated voltage 10V~2000V Depend
P11.04 Motor rated current



P11.05 Motor rated frequency 1.00Hz~600.00Hz 50.00Hz
P11.06 Motor rated RPM 1~60000rpm Depend
P21.00 Monitoring display

0:Standard mode (display frequency only)

1:Automatic scrolling display(Check 3.1 in detail )it show hz,current,power and voltage

P23.15 Output phase loss function 0.0-30%, 0% means output phase detections shielded 30%
r27.15 Accumulative running time Unit:hour
P47.00 Solar pump Mppt function enable

0: invalid

The parameters behind the 47 group cannot be changed!

1: Enable, to enable the special mppt function of the PV pump inverter





Solar pump control mode


Units digit’s: Startup mode

0: Manual start, the start mode is determined by P00.06;

1: automatic start,

When P00.06 change, the association changes here.

P00.06=0, when inverter starts and stops by keypad control, it is automatically modified to 1-automatic start

P00.06=1, when inverter starts and stops by terminal control.it is automatically changed to 0-manual start

Ten digit’s: MPPT function

0: MPPT is disabled; CVT control is used (voltage is given as P47.04).

1: Enable MPPT.

P47.03 Automatic start timing In auto start mode, set the time from power on to start. It is also waiting time to start 600
P47.04 MPPT starting voltage

Set the starting voltage of the MPPT algorithm.

When the MPPT function is disabled, this value is the reference voltage.

P47.05 Light detection threshold If the output frequency is lower than this value and exceeds P47.06, it will be reported to Sleep and stop 0Hz
P47.06 Light detection time See P47.05 for explanation. 60s
P47.07 Light weak wake up time After the sleep fault is reported, if the time when Vdc is higher than the undervoltage point is greater than the set value, the fault state is exited and the operation continues. 600s
P47.08 MPPT tracking step length The amount of change in the bus voltage during an MPPT cycle. The larger the value, the faster the maximum power point is found, but the lower the accuracy of the maximum power point. 2V
P47.09 Regulator proportional gain 0.001~1.00 It is for immediate response speed, it is not recommended to change 0.05
P47.10 Regulator integral gain 0.001~0.100 tracking response.it is not recommended to change 0.05
P47.28 Starting coefficient 0.000~1.000 0.850
P47.30 Fast speed function

Unit digit:fast starting

0:Disable 1:Enable

Ten digit:Fast mppt tracking

0:Disable 1:Enable

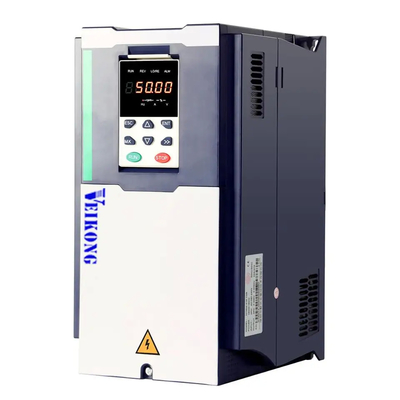

Energy Saving 3 Phase Solar Pump Inverter GPRS Monitoring Control Via PC And Mobile 1


Product Application


Energy Saving 3 Phase Solar Pump Inverter GPRS Monitoring Control Via PC And Mobile 2


Energy Saving 3 Phase Solar Pump Inverter GPRS Monitoring Control Via PC And Mobile 3




1. Does the product need to set a lot of parameters?


No, it doesn't. The inverter has a self-adaptive and self-learning function. It is automatic start and stop, you can press Run key to start, or you just wait for P47.03=600S(Default) then it will automatically start


2. Could it replace my previous PV pumping inverter?


Yes, of course. Selecting inverter model according to the rated voltage, current and power of the water pump. A bit more is better. Then take off the old one and put ours on, the system will work.


3. How to design solar PV water pump system?


Key point: the rated VOC and VMP and power of the PV Array need to match the input range of the inverter. If needed, we will provide technical support online.


4. How to make the water pump system work without sunshine?


Usually, solar PV water pump system can meet the needs of pumping water.

If there is no sunshine, the system will not work. But out inverter could also support AC input. So, connect the power grid or diesel power generation to the inverter, the pumping system will work. If necessary, keep switch and interface locations during the system design
