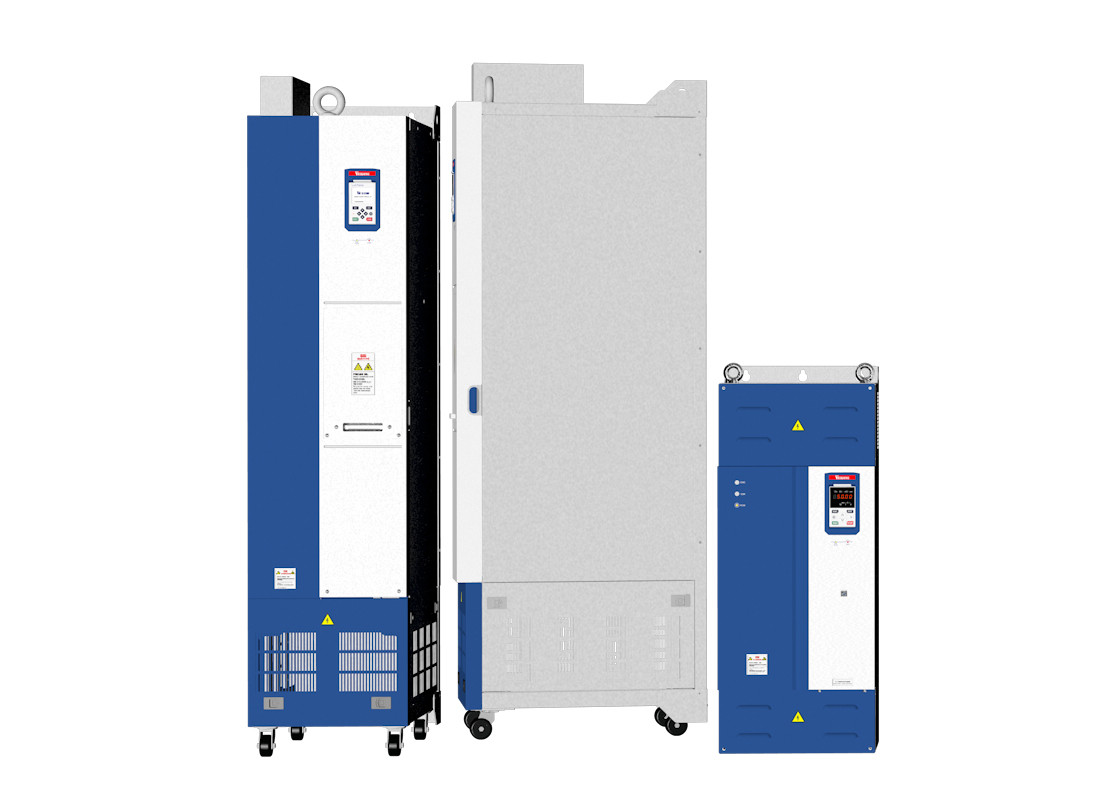

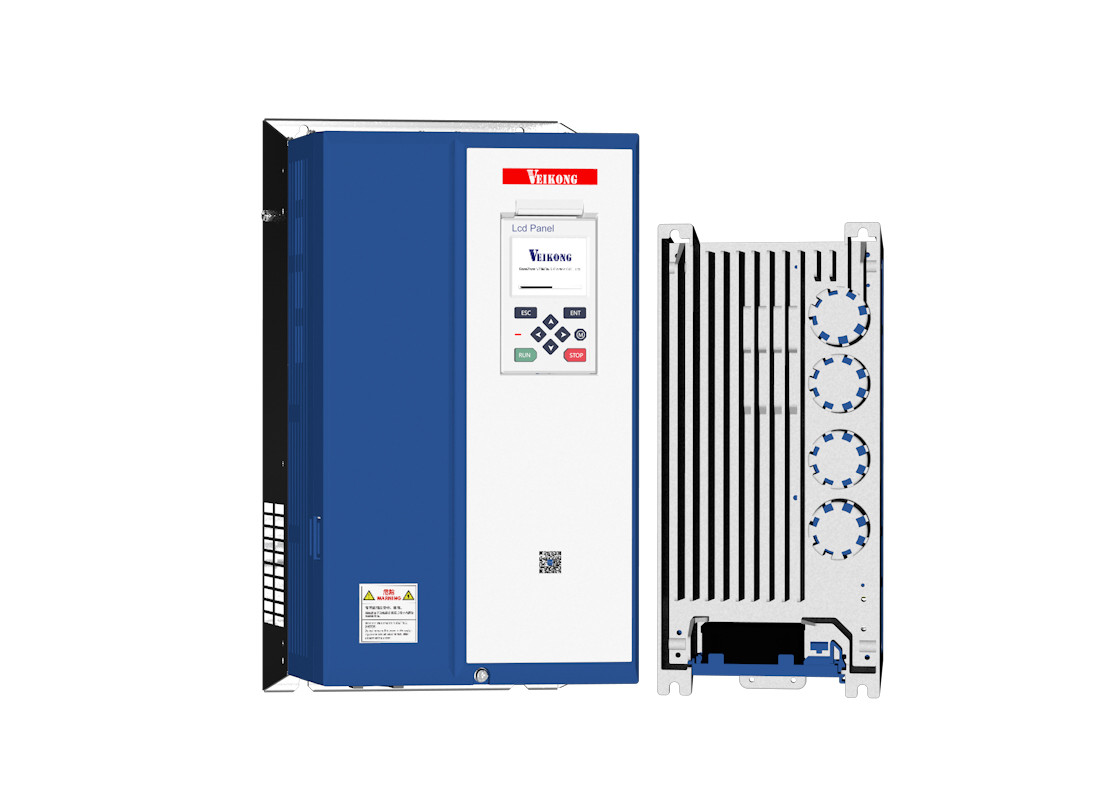

High Speed Frequency Drive Inverter Pulse Output 0-50khz Position Control
Place of Origin China
Brand Name Veikong
Certification IEC CE
Model Number VFD580
Minimum Order Quantity 2
Price Negotiable
Packaging Details Paper or wooden case
Delivery Time depend on the quantity
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 10000+ per/ month
Product Details
Software OEM Supported Operating Mode Speed Control, Torque Control (SVC And VC),position Servo
Warranty 18 Months Protection Level IP20
Language Choice New LCD Support Spanish,Russia, English And Chinese Color Light Blue + White
Input Filter 15kw And Above Built-in DC Reactor Position Control Position Command Supports Internal Position, Pulse Position Input, CANopen Position Command, EtherCAT Position Command (VFD586); Supports Position Fully Closed Loop Mode
High Light

pulse output frequency drive inverter

,

position control frequency drive inverter

,

position control vfd inverter

Product Description

Product Description:

Veikong has recently launched the VFD580 series which is equipped with multiple practical functions that make it stand out from its competitors in the market. This series is compatible with both IM and PMSM motors, ensuring versatility in its applications. It also features an STO function that ensures the safety of the operator and the equipment.

In addition, VFD580 series offers more communication methods like RS485, Canopen, and Profinet, making it convenient for users to integrate the device with different systems. Moreover, this series is suitable for some special applications like fly shear, thus expanding its scope of usage.

Overall, the VFD580 series is a highly efficient, safe, and user-friendly device that promises to deliver excellent results in various industrial applications.

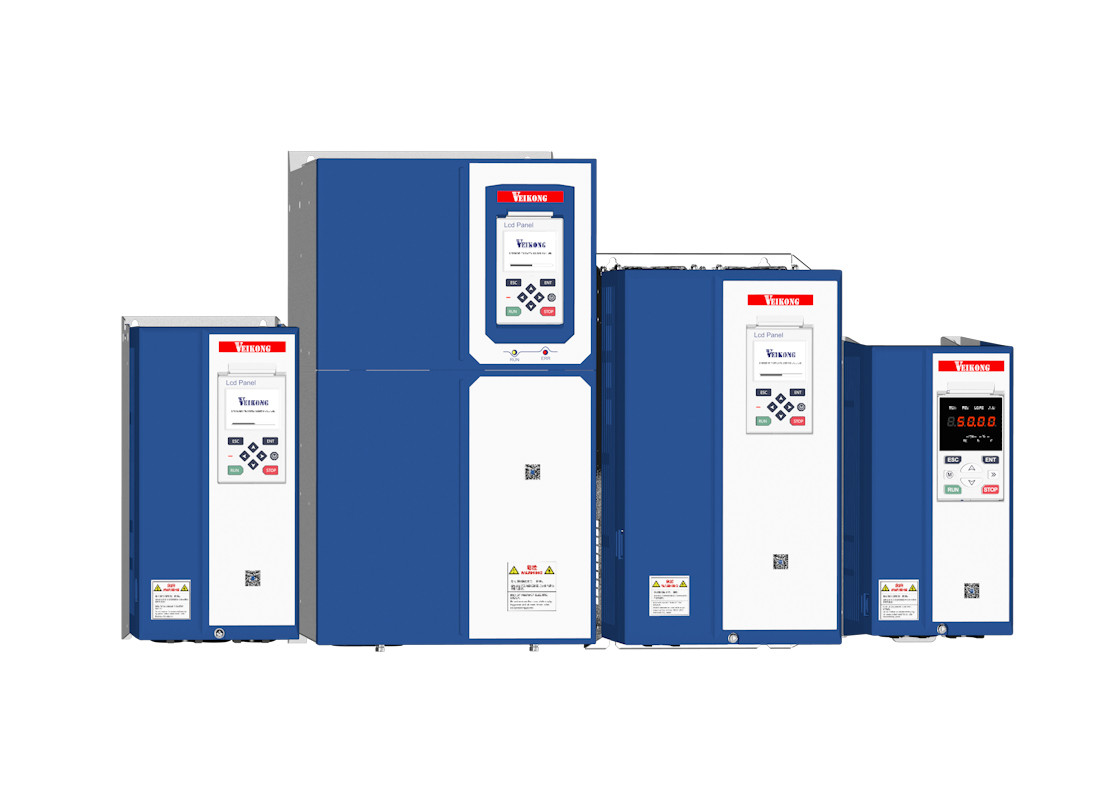

Veikong variable frequency inverters

Features:

This power drive has multiple Rich communication methods such as Canopen, Profinet, Modbus and Ethercat for users to utilize.

It is compatible with a wide range of encoders including Incremental HTL/TTL, Resolver, SinCos interface encoder, Smart-Abs interface encoder and SSI/BISS interface encoder.

The power drive is compatible with both IM and PMSM motors and built-in all-round protection features to ensure security for users.

Also, a secure function(STO) is included in the power drive to provide enhanced safety.

User friendly LCD LED and shuttle display with a potentiometer user interface adds on to the user experience.

In addition, the power drive supports multiple PG cards and multiple control models like speed control, torque control (SVC & VC), position servo.



Technical Data:

Item Specification
Keypad The following three control panels can be configured:digital keyboard(MTBOP1):dual-display keyboard (MTBOP2):LCD keyboard (MTSOP1)
Communication  SLOT2 expansion: MODBUS-RTU communication;CAN-Open communication;ProfiNet communication;EtherCAT communication (VFD586)
Encoder interface Standard:
incremental encoder interface, differential or open-collector signal input;differential maximum input 500KHz, open-collector maximum input 100KHz;SLOT1 expansion:
incremental encoder; resolver; sine-cosine encoder;Tamagawa Protocol absolute encoder;SSIBISS interface encoder (VFD586
Input terminals  Standard:
7 digital input terminals, one of which supports high-speed pulse input up to 50kHz;3 analog input terminal, one supports -10V - 10V input, two supports 0 - 10V voltage input or 0 - 20mACurrent input: (VFD586 2 analog inputs, One channel supports -10-10V, and one channel supports 0-10or 0-20mAoptions)1 motor temperature detection, support PT100, PT1000, KTY84-130 three kinds of thermistor input;SLOT2 expansion:
2 DI digital input terminals (MT580-OEX1)


Applications:

Application Scheme of Roving Machine

Roving machines are mainly used to produce roving for various textiles, such as cotton, wool, chemical fiber, silk, semi-worsted, etc. The application scheme of the roving machine is a comprehensive plan that includes purchasing advice, installation instruction, operation guidance, and maintenance recommendation. The roving machine application scheme will help to ensure the proper functioning of the machine, maintain its control accuracy, and achieve higher efficiency.

Application Plan for Warping Machine

Warping machines are widely used in weaving workshops for products such as fabrics, textiles, carpets, etc. The application plan for the warping machine starts with assessing the operating environment with the goal of making sure that the required power, cooling, and other resources are available. Once the environment assessment is complete and the purchase order is confirmed, the installation of the warping machine and related components is then done according to the technical drawings. Next, the technical staff will conduct comprehensive commissioning and test the operation to ensure that the machine meets its performance criteria.

Application Scheme of Servo Screw Press

Servo screw presses are widely used in metal stamping to improve the processing accuracy and efficiency. The applications scheme of the servo screw press should involve technical personnel review the performance parameters and operation environment, which includes the power, cooling, and other resources requirements. Then, based on the performance indicators determined in the technical evaluation, the servo screw press should be tested, analysed, and adjusted until it meets the required accuracy.

Application Plan for High Speed Electric Spindle Machine Tool

High speed electric spindle machine tools are a great solution for many processing needs in the industrial, metal, and automotive industries. The complete application plan for the high speed electric spindle machine tool should cover the whole process ranging from the selection and purchase to the commissioning and testing. During the selection, the performance parameters such as the spindle speed, torque, accuracy, machine size, power, etc. should be considered. Installation and commissioning should be done according to the technical drawings to ensure the integrity of the components. The operation of the machine should be tested and analysed to guarantee its performance criteria.

Application Plan for Friction Welding Machine

Friction welding machines are the efficient solution for connecting two types of mating materials that require very little material during the process. The application plan for the friction welding machine should include a careful study of the performance parameters of the machine, such as the temperature, weld speed, and power. This plan should also include an installation procedure with the help of technical professionals and a commissioning assessment to ensure the safety and accuracy of the machine.

Flying Shear Application Plan

Flying shears are one of the most widely used metalworking machines, mainly for making grooves, fixed lengths, and shearing. The application plan for a flying shear should involve an assessment and comparison of the performance parameters such as the feed speed, accuracy, tolerance of material and tools in order to choose the most suitable model. During the installation and commissioning process, it is important to make sure that the flying shear is properly mounted and securely fastened in order to achieve the required precision and accuracy.



Customization:

Veikong VFD580 Variable Frequency Inverters Customized Service
  • Brand Name: Veikong
  • Model Number: VFD580
  • Place of Origin: China
  • Input frequency resolution: Digital Setting: 0.01 Hz Or 0.01%Analog Setting: Maximum Frequency X 0.025%
  • HD1 voltage range: 15-30v
  • Operating mode: Speed Control, Torque Control (SVC And VC), Position Servo
  • High speed pulse output: 0-50khz
  • Software OEM: Supported
  • STO function available: Yes
  • Support 6 types PG card: Yes


Support and Services:

Variable Frequency Inverters are an important part of modern industrial machinery and equipment, and so it is important to ensure that they are installed and maintained properly. We offer a range of technical support and service options to ensure that your Variable Frequency Inverter is working correctly and efficiently. Our team of experienced engineers and technicians can provide advice and assistance on installation, setup, maintenance and fault diagnosis.

To help you get the most out of your Variable Frequency Inverter, we also provide a range of tailored support and service packages, including remote monitoring, predictive maintenance, and 24/7 phone and email support. Our team of experienced professionals are available to answer any questions and provide the necessary advice and assistance to ensure that your Variable Frequency Inverter is running smoothly and reliably.



FAQ:

Q1: What is the brand and model of the Variable Frequency Inverters?

A1: The brand and model of the Variable Frequency Inverters is Veikong VFD580.

Q2: Where is the Variable Frequency Inverters made?

A2: The Variable Frequency Inverters is made in China.

Q3: What are the main functions of Variable Frequency Inverters?

A3: Variable Frequency Inverters mainly provide adjustable speed and torque for motors, and help to regulate the speed of motors according to different working conditions.

Q4: What are the features of Variable Frequency Inverters?

A4: Variable Frequency Inverters features a high frequency and low noise, high efficiency, low cost and low energy consumption.

Q5: How can I control the Variable Frequency Inverters?

A5: You can control the Variable Frequency Inverters through a control panel or remotely via computer.
