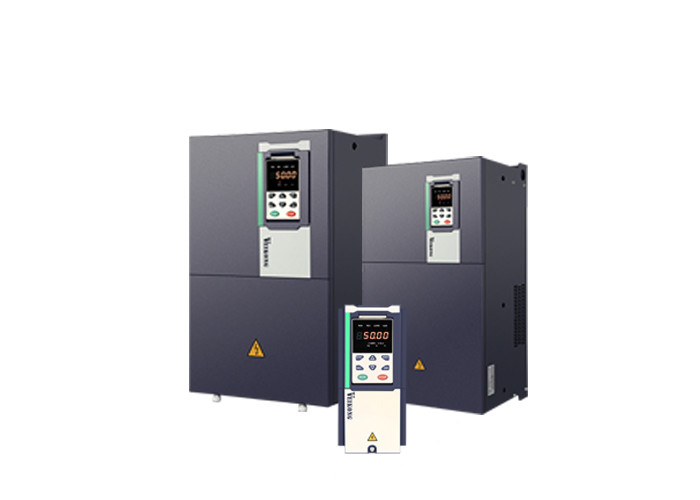

AC380V DC900V 3 Phase Solar Pump Inverter 132kw 160kw 185kw With MPPT
| Place of Origin | China |
|---|---|
| Brand Name | VEIKONG |
| Certification | CE |
| Model Number | VFD500-PV |
| Minimum Order Quantity | 1 |
| Price | Negotiable |
| Packaging Details | the power less than 45kw use Carton, starting from 45kw use Wooden case |
| Delivery Time | 3 days, depend on the order quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 15000pcs per Month |
Product Details
| Product Name | 3 Phase INVERTER | Voltage | 380v AC 900V DC |
|---|---|---|---|
| Output Power | 132KW 160KW 185KW | Protection Level | IP20/IP65 |
| Type | Three Phase | OEM | YES |
| High Light | AC380V 3 Phase Solar Pump Inverter,185kw 3 Phase Solar Pump Inverter,DC900V 3 Phase Solar Pump Controller |
||
Product Description
AC380V DC900V 3 Phase Solar Pump Inverter 132kw 160kw 185kw With MPPT
3 Phase 380V AC 900V DC Solar Pump Inverter 132kw 160kw 185kw With MPPT
Product Details and Features:
1. Operates without grid directly from photovoltaic (PV) cells
2. Automatic start and stop with solar radiation
3. Built-in maximum power point tracking (MPPT)
4. Easy installation and set-up for serial production
5. Compatible with all pump types
6. Good ROI (Return on Investment) against diesel powered pumping
7. Compact and uniform drive module design (IP20)
8. Dual supply capability with change over switch - solar and grid compatible
9. Sensorless vector control of induction motors and permanent magnet motors
10. Energy saving function and dry run self learning function 11 GPRS monitoring control via PC and Mobile
Electrical Specifications and Power degree
| PV input | |
| Maxiumum input DC voltage | 400V DC |
| Recommended MPPT voltage range | 250~350V DC |
| Recommended input Operation Voltage | 310V DC |
| Grid or backup generator input | |
| Input voltage | Single phase 220V(-15%~30%) |
| Output Specification | |
| Rated output voltage | 3PH 220V |
| Output frequency | 0~500.00Hz (default: 0~50.00Hz) |
| 380V Solar Pumping Inverter | |
| Input Specification | |
| PV input | |
| Maxiumum input DC voltage | 800V DC |
| Recommended MPPT voltage range | 450~650V DC |
| Recommended input Operation voltage | 540V DC |
| Grid or backup generator input | |
| Input voltage | Three phase 380V(-15%~30%) |
| Output specification | |
| Rated ouput voltage | 3PH 380V |
| Output frequency | 0~500.00Hz (default: 0~50.00Hz) |
| Protection | |
| Built-in Protection | Lighting Protection ,over-current, overvoltage, ouput phase lose, under-load, under-voltage, short circuit , overheating, water pump run dry etc. |
Product Application
1. How to design solar PV water pump system?
Key point: the rated VOC and VMP and power of the PV Array need to match the input range of
the inverter. If needed, we will provide technical support online.
2. How to make the water pump system work without sunshine?
Usually, solar PV water pump system can meet the needs of pumping water.
If there is no sunshine, the system will not work. But out inverter could also support AC input. So,
connect the power grid or diesel power generation to the inverter, the pumping system will work. If
necessary, keep switch and interface locations during the system design
3. How to check and solve basic problem of inverter trips and error
a:Check the total vmp and voc of solar panels ,solar panel technical data
b:Check motor pump power and rated current
c: Check the distance between motor and inverter
d: Check trip record r25.00 r25.01 25.02 25.03 r26.00 r26.01 r26.02 r26.03 r26.08 r26.09 r26.10 r26.11
e: Check troubleshooting fault and find relevant solutions
f : Check if motor insulation has been damaged or motor is blocked
