Contact Person : Terry
Phone Number : 008613923736332
WhatsApp : +8613923736332
Support optional LCD keypad you will know all parameters meaning no need user manual
Place of Origin China
Brand Name VEIKONG
Certification CE
Model Number VFD500-PV
Minimum Order Quantity 5
Price Negotiable
Packaging Details the power less than 45kw use Carton, starting from 45kw use Wooden case
Delivery Time depend on the order quantity
Payment Terms L/C, T/T, Western Union
Supply Ability 15000pcs per Month
Product Details
Product Name Solar Pump Inverter Voltage 220v/380v
Frequency 50hz/60hz Display LED+LCD
Protection Ip20 And Ip65 Color White And Blue
Remote Control GPRS Support Original China
MPPT Efficiency 99.9999% Brand VEIKONG
Special Function MPPT And PID
High Light

2.2KW Pump Inverter Solar

,

2.2KW Solar VFD

,

4KW Pump Inverter Solar

Product Description

2.2KW 4KW GPRS Pump Inverter Solar VFD For Solar Irrigation System



2.2KW 4KW Solar Pump Inverter GPRS Solar VFD For Pump Solar Irrigation System



VEIKONG IS Solar Ac Pump Controller chinese manufacturer


Performance features:(220v 0.75kw-75kw, 380v 0.75kw-250kw)
Features:
  1.  Support Hybrid solar power and ac power at same time
  2.  Support optional LCD keypad, you will know all parameters meaning , no need user manual
  3.  Support optional GPRS module to remote control and monitor solar pumping situation
  4.  Support optional output reactor to protect the motor
  5.  Support water full, dry running, wake and sleep protection functions.





Electrical Specifications



PV input
Maxiumum input DC voltage 400V DC
Recommended MPPT voltage range 250~350V DC
Recommended input Operation Voltage 310V DC
Grid or backup generator input
Input voltage Single phase 220V(-15%~30%)
Output Specification
Rated output voltage 3PH 220V
Output frequency 0~500.00Hz (default: 0~50.00Hz)
380V Solar Pumping Inverter
Input Specification
PV input
Maxiumum input DC voltage 800V DC
Recommended MPPT voltage range 450~650V DC
Recommended input Operation voltage 540V DC
Grid or backup generator input
Input voltage Three phase 380V(-15%~30%)
Output specification
Rated ouput voltage 3PH 380V
Output frequency 0~500.00Hz (default: 0~50.00Hz)
Protection
Built-in Protection Lighting Protection ,over-current, overvoltage, ouput phase lose, under-load, under-voltage, short circuit , overheating, water pump run dry etc.







Accessories:



1. GPRS (support 2g/3g/4g internet)



2. Output reactor



3. LCD keypad

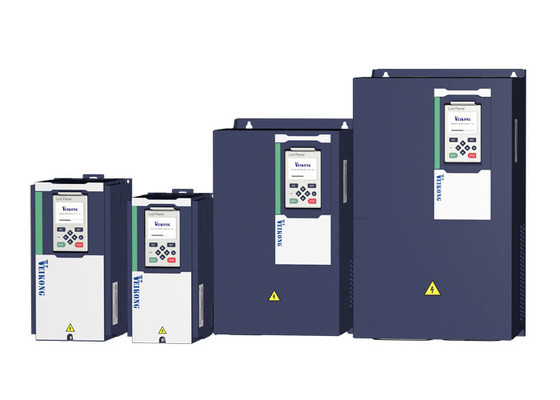

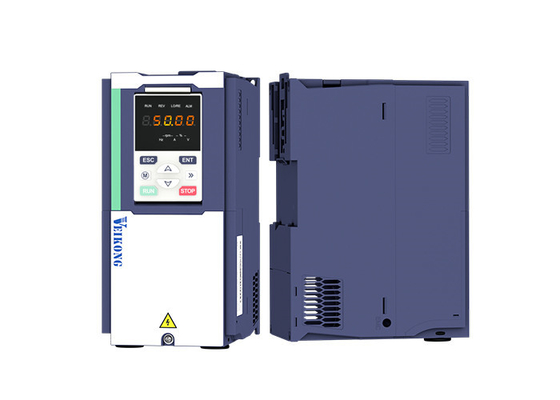

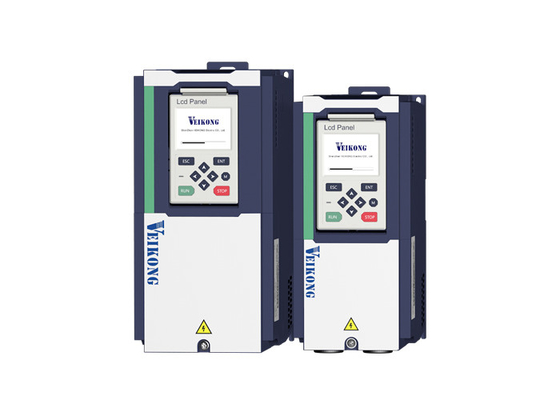

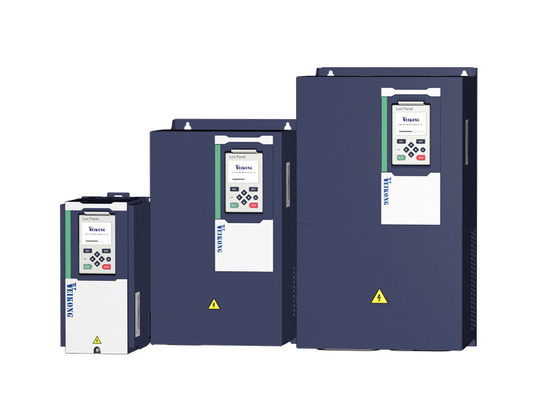

Support optional LCD keypad you will know all parameters meaning no need user manual 0











Support optional LCD keypad you will know all parameters meaning no need user manual 1





Model Range

Drive Model Related Voltage Max DC input voltage (V) Rated output current (A) Applicable water pump (KW) SIZE
VFD500M-20T00150-PV 220V 800 7 1.5 SIZE A
VFD500M-20T00220-PV 220V 800 10.6 2.2 SIZE A
VFD500M-40T00150-PV 380V 800 4.2 1.5 SIZE A
VFD500M-40T00220-PV 380V 800 6 2.2 SIZE A
VFD500-20T00150-PV 220V 800 7 1.5 SIZE A
VFD500-20T00220-PV 220V 800 10.6 2.2 SIZE A
VFD500-20T00400-PV 220V 800 17 4 SIZE A
VFD500-40T00150-PV 380V 800 4.2 1.5 SIZE A
VFD500-40T00220-PV 380V 800 6 2.2 SIZE A
VFD500-40T00400-PV 380V 800 9.4 4 SIZE A
VFD500-40T00550-PV 380V 800 13 5.5 SIZE B
VFD500-40T00750-PV 380V 800 17 7.5 SIZE B
VFD500-40T01100-PV 380V 800 25 11 SIZE C
VFD500-40T01500-PV 380V 800 32 15 SIZE C
VFD500-40T01850-PV 380V 800 38 18.5 SIZE D
VFD500-40T02200-PV 380V 800 46 22 SIZE D
VFD500-40T03000-PV 380V 800 60 30 SIZE E
VFD500-40T03700-PV 380V 800 75 37 SIZE E
VFD500-40T04500-PV 380V 800 96 45 SIZE F
VFD500-40T05500-PV 380V 800 112 55 SIZE F
VFD500-40T07500-PV 380V 800 150 75 SIZE G
VFD500-40T09000-PV 380V 800 176 90 SIZE G
VFD500-40T11000-PV 380V 800 210 110 SIZE H
VFD500-40T13200-PV 380V 800 253 132 SIZE I
VFD500-40T16000-PV 380V 800 304 160 SIZE I
VFD500-40T18500-PV 380V 800 340 185 SIZE J
VFD500-40T20000-PV 380V 800 377 200 SIZE J








Trial run(How to start solar pump inverter)
Make sure all cables connections of solar panel and pump motor correct and no
need to set any parameter, if you want to set parameter, you can do as follows.

Step 1: (Keypad control):Set motor parameter P11.02- P11.06 as per motor pump name
plate If dry run protection is required, measure the unload protection current(see details in
user manual chapter for dry run function) If dry run protection not required then miss this step
and go to step 2.

Step 2: Set other related special solar pump parameters for optimization if needed.

Step 3: After trial run finishing, if motor pump still not output water when inverter is running
more than 40 Hz. Please disconnect the power supply and replace any two-phase wiring of
the motor



Technical Questions and solutions


1. How to achieve Automatic start after stop?
If it is controlled by keyboard, so there is no need to set any parameter(P47.03 waiting time)If you want to
control by external switch. First set P00.06=1 and use a wire or switch to connect com and DI1,When the
switch is closed, the drive run, when the switch is open, the drive stop

2. How to use a float in the water tank to stop the pump if the tank is full?
If your float signal is digital signal Use float switch to short DI 3 and com ,see diagram 1.3
143.Use level probe in the well for protection against dry running

1 st solution: See self learning of dry run(For LED display)

2 nd solution: do it manually Set P24.13=30%-60%(as per real empty load current percentage based on
rated current) and P24.14 P24.16 and P23.21

3 rd solution: If your sensor is digital switch, just short D4 and com

4 th solution: If your float signal is Analog signal, Connect Ai2 and 10V and GND and set P41.00=23 and
P41.03-P41.06
