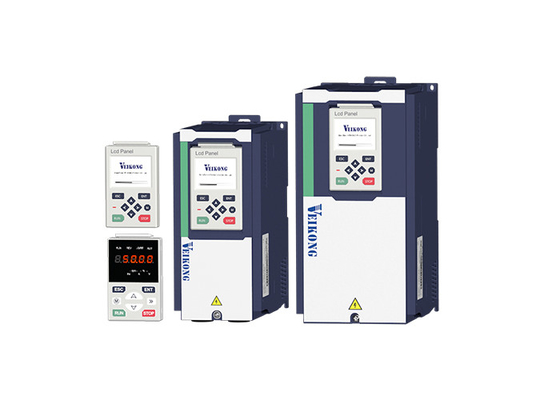

VEIKONG High Peformance VFD Solar Inverter For Water Pump 1HP 2HP 3HP 5HP 7.5HP 10HP
Place of Origin China
Brand Name VEIKONG
Certification CE
Model Number VFD500-PV
Minimum Order Quantity 1
Price Negotiable
Packaging Details the power less than 45kw use Carton, starting from 45kw use Wooden case
Delivery Time depend on the order quantity
Payment Terms L/C, T/T, Western Union
Supply Ability 15000pcs per Month
Product Details
Product Name 1HP 2HP INVERTER Display LED+LCD
Output Frequency 50/60hz Output Voltage 380V AC 900V DC
Warranty 18 Monthes OEM YES
GPRS Support Original China
Brand VEIKONG Power Range 0.75-500kw
MPPT Efficiency 99.999%
High Light

900V DC VFD Solar Inverter

,

Water Pump VFD Solar Inverter

Product Description

900V DC VFD Solar Inverter For Water Pump 1HP 2HP 3HP 5HP 7.5HP 10HP




Product Details and Features:

1. Power from 220V (0.75 – 75KW) , 380V (0.75 – 160KW)

2. DC/AC Input Compatible, can support DC and AC Input at same time

3. Protection Functions: Over/Under voltage Over-current, Short Circuit, Phase Failure etc

4. Optimized MPPT Arithmetic Accuracy 99%

5. Multi-liquid-level Control, Dry run protection, Wake and Sleep function,,PID control

6. Auto-dormancy on weak light, auto-recovery working on strong light, no need for man-made operations

7. Auto switch over From Solar to Grid Supply with weak light

8. Support optional LCD display and GPRS module.

The solar pump inverter is the most important equipment in the photovoltaic water pumping system and the soul of the system. Electrical energy from photovoltaic solar panels to drive AC motor water pumps.
Solar pump inverter that switches the DC power supply from the solar panels to the AC power needed to control the pump. With the solar inverter, pumps can adapt to solar energy sources rather than traditional power supplies or generators. Solar pumping system is a series-parallel absorb sunlight radiation energy through solar panels and convert it into AC power by inverter to drive centrifugal pump, irrigation pump, axial flow pump, mixed-flow pump of deep well water pump system.




Accessories:

1. GPRS (support 2g/3g/4g internet)

It supplies water volume monitoring and operation of inverter from anywhere at anytim
It’s convenient to visit real time and historical data via web or Android APP anytime and anywhere.
This easy-to-use platform makes monitoring of solar pump systems simple and convenient,
far reducing operate time and monitoring costs as well.

VEIKONG High Peformance VFD Solar Inverter For Water Pump 1HP 2HP 3HP 5HP 7.5HP 10HP 0

2. LCD keypad

Standard inverter are with LED keypad,LCD keypad is optional.
LCD keypad can monitor 4 parameters at the same time. LED keypad show one parameter only.
LCD keypad with detailed parameter explain,no need use user manual ,more user friendly.
LCD keypad with copy and update and download function.widely used for government projects and big farms.

VEIKONG High Peformance VFD Solar Inverter For Water Pump 1HP 2HP 3HP 5HP 7.5HP 10HP 1


3. Output Reactor

When the distance between inverter and pump is more than 70m, you need use reactor to protect this system.
VEIKONG High Peformance VFD Solar Inverter For Water Pump 1HP 2HP 3HP 5HP 7.5HP 10HP 2

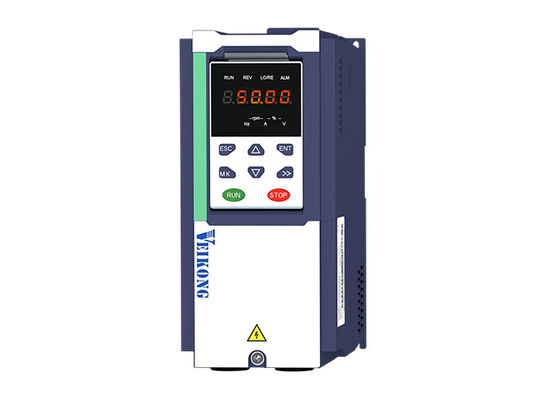

VFD500-PV 5.5KW  7.5kw 380V inverter picture:
VEIKONG High Peformance VFD Solar Inverter For Water Pump 1HP 2HP 3HP 5HP 7.5HP 10HP 3



1. How to check and solve basic problem of inverter trips and error
a:Check the total vmp and voc of solar panels ,solar panel technical data
b:Check motor pump power and rated current
c: Check the distance between motor and inverter
d: Check trip record r25.00 r25.01 25.02 25.03 r26.00 r26.01 r26.02 r26.03
e: Check troubleshooting fault and find relevant solutions
f : Check if motor insulation has been damaged or motor is blocked





For 220V single phase motor connection



1: Single phase asynchronous motor wiring method (without starting capacitor):

Notice: U is connected to the common end of the starting winding and the working winding, V is connected to the starting winding, and W is connected to the working winding;



Single-phase asynchronous motor if the rotary steering is not correct, you can change the V and W wiring or set P22.13=1.



First solution: Set parameter P11.01=1 (Single phase motor type without capacitor) or second solution: set P00.11=31 if your motor frequency is 50 hz or set P00.11=32 if your motor frequency is 60HZ





For 220V single phase motor connection



2:Single-phase asynchronous motor wiring method (with capacitor)



Notice1:First solution: Connect motor cable to power terminal U and V and enter BSC mode to Set parameter P23.15=0(output phase loss shielding protection) or second solution: set macro P00.11=21 if your motor frequency is 50HZ or set P00.11=22 if your motor frequency is 60HZ
