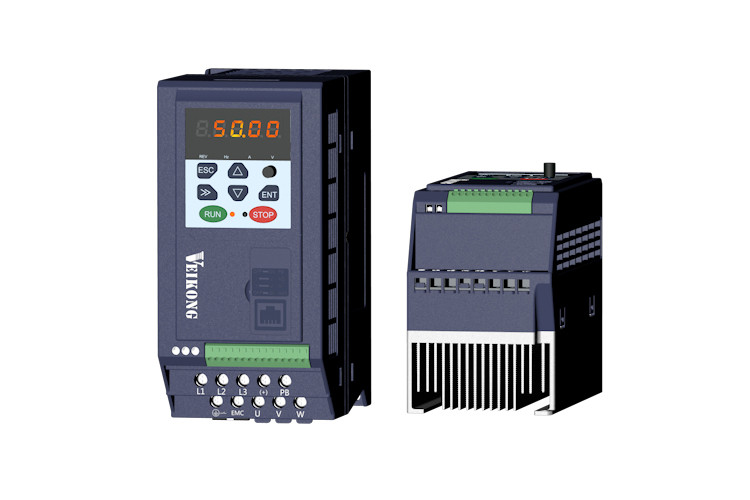

50hp - 120hp VFD VEIKONG Solar Pump Inverter Single / Three Phase 99% Accuracy MPPT
| Place of Origin | China |
|---|---|
| Brand Name | VEIKONG |
| Certification | CE |
| Model Number | VFD500-PV |
| Minimum Order Quantity | 5 |
| Price | Negotiable |
| Packaging Details | the power less than 45kw use Carton, starting from 45kw use Wooden case |
| Delivery Time | 3 days, depend on the order quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 15000pcs per Month |
Product Details
| Product Name | Pump Controller | Output Type | Single Or Three Phase |
|---|---|---|---|
| Frequency | 50hz/60hz | Voltage | 220v/ 380v |
| Protection Level | IP20 IP65 | Warranty | 18 Monthes |
| High Light | VFD VEIKONG Solar Pump Inverter,GPRS module VEIKONG Solar Pump Inverter,99% MPPT vfd solar pump controller |
||
Product Description
50hp 60hp 70hp 100hp 120hp Solar pump inverter solar vfd pump controller
VEIKONG is solar pump inverter, industrial vfd, soft starter manufacturer.
Product Details:
1. Power from 220V (0.75 – 75KW) , 380V (0.75 – 160KW)
2. DC/AC Input Compatible, can support DC and AC Input at same time
3. Protection Functions: Over/Under voltage Over-current, Short Circuit, Phase Failure etc
4. Optimized MPPT Arithmetic Accuracy 99%
5. Multi-liquid-level Control, Dry run protection, Wake and Sleep function,,PID control
6. Auto-dormancy on weak light, auto-recovery working on strong light, no need for man-made operations
7. Auto switch over From Solar to Grid Supply with weak light
8. Support optional LCD display and GPRS module.
Product Application
For 220V single phase motor connection
1: Single phase asynchronous motor wiring method (without starting capacitor):
Notice: U is connected to the common end of the starting winding and the working winding, V is connected to the starting winding, and W is connected to the working winding;
Single-phase asynchronous motor if the rotary steering is not correct, you can change the V and W wiring or set P22.13=1.
First solution: Set parameter P11.01=1 (Single phase motor type without capacitor) or second solution: set P00.11=00031 if your motor frequency is 50 hz or set P00.11=32 if your motor frequency is 60HZ
For 220V single phase motor connection
2:Single-phase asynchronous motor wiring method (with capacitor)
Notice1:First solution: Connect motor cable to power terminal U and V and enter BSC mode to Set parameter P23.15=0(output phase loss shielding protection) or second solution: set macro P00.11=00021 if your motor frequency is 50HZ or set P00.11=22 if your motor frequency is 60HZ
Why chose VEIKONG?
1. Infineon brand IGBT/Fuji IGBT, enduree temperature 175°C
2. Two-lines LED keypad/LCD kaypad
3. Fan: 70 000 hours using life
4. Capacitor: 50 000 hours using life
5. Input phase lacking protection
6. Output short circuit protection
7. Overvoltage protection
9. 10 000-15 000pcs per month production ability
10. 500pcs stock below 90KW
11. CE ISO certification, TUV SGS authority
12. Strong RD department, can update software
