MPPT VFD Solar Pump Inverter with GPRS Remote Monitoring for Water Pumping
Place of Origin China
Brand Name VEIKONG
Certification CE IEC
Model Number VFD500-PV
Minimum Order Quantity 25 pcs
Price negotiable
Packaging Details paper carton under 45kw, starting from 45kw wooden case for packing
Delivery Time 7-8 working days based on quantity
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15490 per/ month
Product Details
Voltage 380V MPPT Efficiency More Than 99%
Standard CE Frequency Range 50HZ / 60HZ Supported
Color Blue White Display LCD Or LED
LCD Features Multiple Language, Software Upgrade Brand VEIKONG
Special Function PID + MPPT MPPT Efficiency 99.999%
OEM Service Support MOQ Negotiable
High Light

GPRS Remote Solar Water Pump Inverter

,

3 Phase Solar Water Pump Inverter

,

MPPT Veikong Solar Pump Inverter

Product Description

VEIKONG Solar Water Pump Inverter 3 phase mppt with GPRS Remote Monitoring.



1. Key features of VFD500-PV series solar pump inverter

1. Maximizing power generation efficiency of solar modules with the use of advanced MPPT control technology and automatic MPPT voltage tracking.

2. Adjust water flow of pumps quickly on basis of sunlight intensity change.

3. Advanced calculation for pump flow and LCD monitoring display.



2. VFD500-PV solar pump drive specification

Voltage range 220V 380V
Max inputDC voltage 450V 800V
RecommendedMPPTvoltage range 250~350VDC 400~600VDC
Recommendedinput voltage 305V 530V
MPPT efficiency 99%
Input channel

2

Rated output voltage 3-phase 220VAC 3-phase 380VAC
Output frequencyrange 0~60Hz
Max efficiencyof the machine more than or 97%
Ambienttemperature range -10 °C~50 °C in general, derating if the temperature is above 40 °C
Cooling method Air cooling method
Protection degree IP20
Altitude Below 1000 meters; above 1% for every additional 100m.
Standard CE IEC



3.Other special design of Veikong solar pump inverter.

1. Independent air duct design, effectively preventing dust entering inverter, causing short-circuit and other faults and improving reliability.

2. Use bigger air volume and long life cooling fan effectively reduces the internal temperature rise of the inverter and ensures reliable and stable operation of inverter.

3. Perfect protection system, Designed for ten years of maintenance-free operation.

4. Cooling fan, capacitors, relays, and IGBTs have been carefully selected and designed for a life expectancy up to ten years.



4. why should we choose a higher level power solar pump inverter than motor pump?
1. If solar pump inverter works in high temperature above 40C, it will be derated.
2. If motor pump is far away from inverter more than 100m, there will be power loss and drop voltage on cables and output power will be less and more harmonic, reactor is needed to reduce harmonics and better protection on motor.
3. Oversized power can be more adjustable for pump as it can keep stocks for better marketing which depend on real application for example 15hp solar pump inverter can use for 10hp also 15hp if distance is less and temperature is not high.
4. Some deep well pump is heavy duty and more heights and pump and motor are not matched and motor is easily overloaded  so inverter should choose oversized power.
5. Oversized power has better heat ventilation and higher IGBT capabilities.

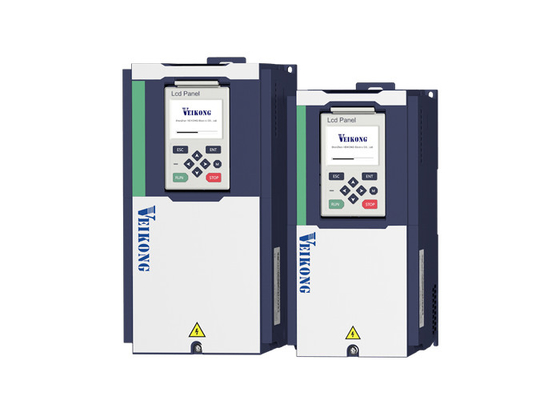

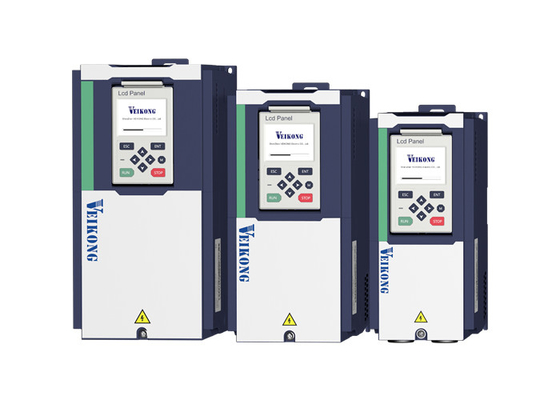

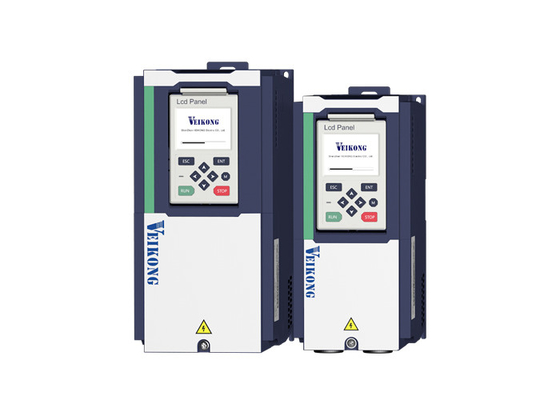

5. Veikong solar pump controllers product images

MPPT VFD Solar Pump Inverter with GPRS Remote Monitoring for Water Pumping 0

MPPT VFD Solar Pump Inverter with GPRS Remote Monitoring for Water Pumping 1





6. VFD500-PV solar pump inverter product brochure and user manual files download here



VEIKONG solar pump inverter brochure.pdf

VEIKONG VFD500-PV Hybrid Solar pumping inverter us...
