Veikong VFD500M-PV MPPT VFD Solar Pump Inverter for Solar Pumping Efficiency and Performance
Place of Origin China
Brand Name VEIKONG
Certification CE IEC
Model Number VFD500M-PV
Minimum Order Quantity 24 pcs
Price negotiable
Packaging Details paper carton under 45kw, starting from 45kw wooden case for packing
Delivery Time 3-8 working days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15000 per/ month
Product Details
Product VFD500M-PV Series Connection Spring Terminal
Warranty Time 18 Months In General Model Type Mini Solar Pump Inverter
Voltage 380V-480V Brand Veikong
Remote Control GPRS Support Color Dark Blue
OEM Support Original China
High Light

MPPT VFD Solar Pump Inverter 480V

,

Micro MPPT VFD Solar Pump Inverter

,

50hz MPPT VFD Solar Pump Inverter

Product Description

Mini MPPT VFD Solar Pump Inverter 50hz 60hz Three Phase / Single Phase Micro Type



1. The Power Range of VFD500M-PV Series for options

Model Power capacity(Kva) Input current(A) Output current(A) Adaptable Motor (Kw) Size Brake unit
Heavy load Light Load
3 phase: 380V-480V, 50/60HZ
VFD500M-R75GT4B-PV 1.6 3.2 2.5 4.2 0.75 Size B Internal

VFD500M-1R5GT4B-PV

2.8 4.7 4.2 5.6 1.5
VFD500M-2R2GT4B-PV 3.7 7.8 5.6 9.4 2.2
VFD500M-4R0GT4B-PV 6.2 11.6 9.4 10.5 3.7
VFD500M-5R5GT4B-PV 8.6 15.6 13 17 5.5 Size C Internal
VFD500M-7R5GT4B-PV 11.2 20.5 17 23 7.5
1 phase: 200-240V, 50/60Hz
VFD500M-R40GS2B-PV 1.2 6.9 2.8 3.2 0.4 Size A Internal
VFD500M-R75GS2B-PV 2.1 12.2 4.5 4.8 0.75
VFD500M-1R5GS2B-PV 3.1 17 8 10.6 1.5 Size B
VFD500M-2R2GS2B-PV 4.1 21 10.6 12.5 2.2
3 phase: 200V-240V, 50/60Hz
VFD500M-R40GT2B-PV 1.2 4 2.8 3.2 0.4 Size B Internal
VFD500M-R75GT2B-PV 2.1 7.1 4.5 4.8 0.75
VFD500M-1R5GT2B-PV 3.1 11.3 8 10.6 1.5
VFD500M-2R2GT2B-PV 4.1 14.5 12.5 2.2



2. Veikong High Performance Solar Pump Inverter With Nice Features for Better Solar Sytem

1) High Efficient MPPT which can be up to 99%, it can help to generate the DC from

solar panels better.

2) Automatic start and stop function, make the whole system in an energy saving situation

3) More compact size to save delivery cost and much competitve price help to attract more

end users who want stable and basic functions.

4) It can support external display, well worked even in the control cabient



3. VEIKONG VFD500M-PV series Applications and Some Nice Feedback from Clients

Veikong VFD500M-PV MPPT VFD Solar Pump Inverter for Solar Pumping Efficiency and Performance 0

Veikong VFD500M-PV MPPT VFD Solar Pump Inverter for Solar Pumping Efficiency and Performance 1

Veikong VFD500M-PV MPPT VFD Solar Pump Inverter for Solar Pumping Efficiency and Performance 2





4. Who We Are? Veikong Industrial Co., Ltd from China, one of the most reliable supplier



Shenzhen Veikong Electric CO.,Ltd. a high-tech enterprise which has been specializing in researching, manufacturing and trading high, medium and low voltage inverter, providing our clients with integrated system solutions. We have professional R&D and devoted management team with more than 20 years' experience of theoretical research, product development and quality management.Veikong also is one of the first independent AC drives company in China. We adopt SPWM, sensorless vector control and vector and torque control technology in our VFD series inverters, which has reached the international advanced standard. The products can directly replace and be equivalent of Europe and the United States, Japan and other brands, providing customers with a powerful technical support. We have achieved popularity and qualification in VFD industry. Quality is the life of enterprise.



5. Production Detailed Pics

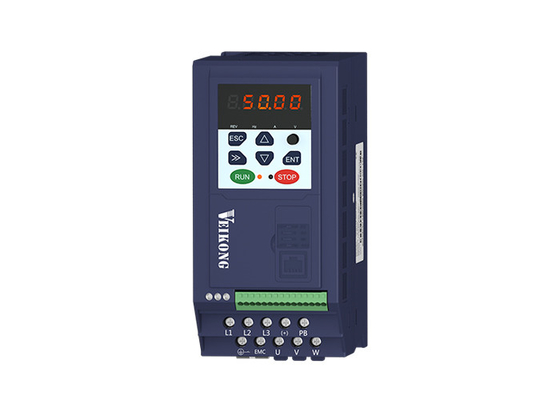

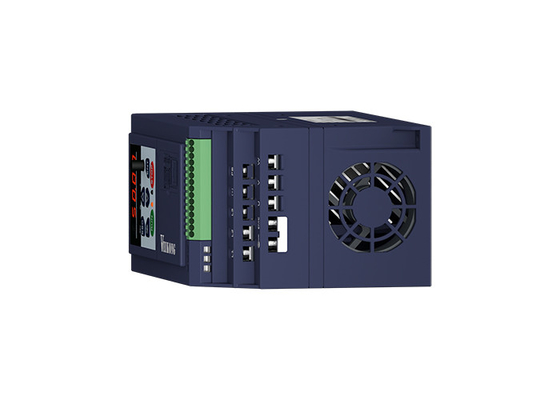

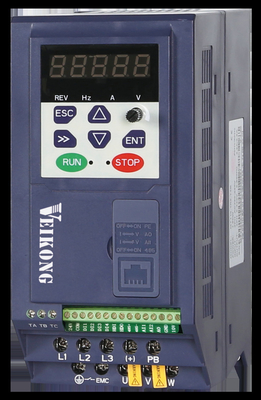

Veikong VFD500M-PV MPPT VFD Solar Pump Inverter for Solar Pumping Efficiency and Performance 3

Veikong VFD500M-PV MPPT VFD Solar Pump Inverter for Solar Pumping Efficiency and Performance 4

Veikong VFD500M-PV MPPT VFD Solar Pump Inverter for Solar Pumping Efficiency and Performance 5



6. Factory Environment For your Reference



Veikong VFD500M-PV MPPT VFD Solar Pump Inverter for Solar Pumping Efficiency and Performance 6

Veikong VFD500M-PV MPPT VFD Solar Pump Inverter for Solar Pumping Efficiency and Performance 7

Veikong VFD500M-PV MPPT VFD Solar Pump Inverter for Solar Pumping Efficiency and Performance 8
