LCD Display And Simplified Parameters Veikong Mini Solar Pump Inverter VFD500M-PV
Place of Origin China
Brand Name VEIKONG
Certification CE IEC
Model Number VFD500M-PV
Minimum Order Quantity 24 pcs
Price negotiable
Packaging Details paper carton under 45kw, starting from 45kw wooden case for packing
Delivery Time 3-8 working days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15000 per/ month
Product Details
Product VFD500M-PV Series Product Type Mini MPPT VFD Solar Pump Inverter
Frequency From 50HZ To 60HZ Power Range From 0.75-2.2kw
Voltage 380V-480V Or 220V-240V Warranty 18 Months
Brand VEIKONG Color Dark Blue
Original China
High Light

220V MPPT VFD Solar Pump Inverter

,

economic MPPT VFD Solar Pump Inverter

,

LCD display Veikong Solar Pump Inverter

Product Description

Mini Smart MPPT VFD Solar Pump Inverter Dc To Ac Drive Connect Solar Panel



1. What can Veikong mini MPPT VFD solar pump inverter bring to you?

Veikong VFD500M-PV is a mini solar pump inverter for small range power like from 0.75kw to 2.2kw. This model is very economic for those who want to use it in some applications which need small power range and within limited budget. It also has compact size and high performances to make your work more efficiently.



2. High performance and economical mini solar pump inverter with nice features.

1. Support both VF and sensorless vector control

2. Starting torque 150% at 0.25Hz in SVC

3. HDI and HDO function

4. Automatic torque boose

5. Support LCD display

6. Easy startup with simplified parameters

7. 2 independent S ramps

8. Vector and torque control

9. Variable DC injection braking



3. General Technical Data of Mini Solar Pump Inverter VFD500M-PV series

Type model Termina symbol Terminal name The terminal function description
Analog input voltage +10V Input voltage 10.10V±1%
Analog input voltage +10V Input voltage Maximum output current:10mA,it provides power supply to external potentiometer with resistance range of:1KΩ~51KΩ
Analog input voltage GND Ananog ground Internal isolation from COM point
Analog input voltage

AI1

Analog input1 Input voltage:0~10V:Impedance 22KΩ,Maximum input voltage
Analog input voltage AI1 Analog input1 Input current:0~20mA:Impedance 500Ω,Maximum input current
Analog input voltage AI1 Analog input1 Through the jumper switch AI1 0 ~ 10V and 0 ~ 20mA analog input switch, the factory default voltage input
Analog input voltage AI2 Analog input 2 Input voltage:0~10V:Impedance 22KΩ,Maximum input voltage
Analog input voltage AI2 Analog input 2 Input current:0~20mA:Impedance 500Ω,Maximum input current
Analog input voltage AI2 Analog input 2 Through the jumper switch AI1 0 ~ 10V and 0 ~ 20mA analog input switch, the factory default voltage input
Analog input AO1 Analog output 1 Output voltage:0~10V:Impedance ≥10KΩ
Analog input AO1 Analog output 1 Output current:0~20mA:Impedance 200Ω~500Ω
Analog input AO1 Analog output 1 Through the jumper switch AO1 0 ~ 10V and 0 ~ 20mA analog output switching, the factory default voltage output
Analog input AO2 Analog output 2 Output voltage:0~10V:Impedance ≥10KΩ
Analog input AO2 Analog output 2 Output current:0~20mA:Impedance 200Ω~500Ω
Analog input AO2 Analog output 2 Through the jumper switch AO1 0 ~ 10V and 0 ~ 20mA analog output switching, the factory default voltage output.
Analog input GND Ananog ground Internal isolation from COM



4. Production Detailed Pics

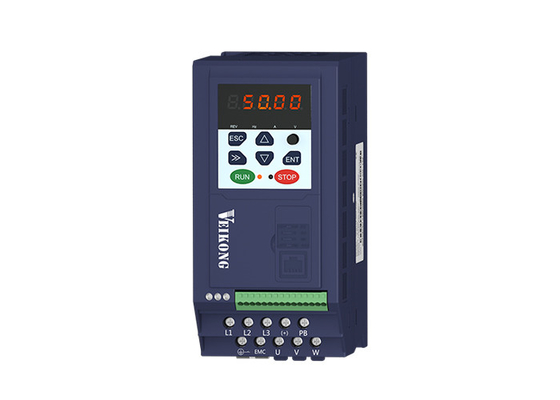

LCD Display And Simplified Parameters Veikong Mini Solar Pump Inverter VFD500M-PV 0

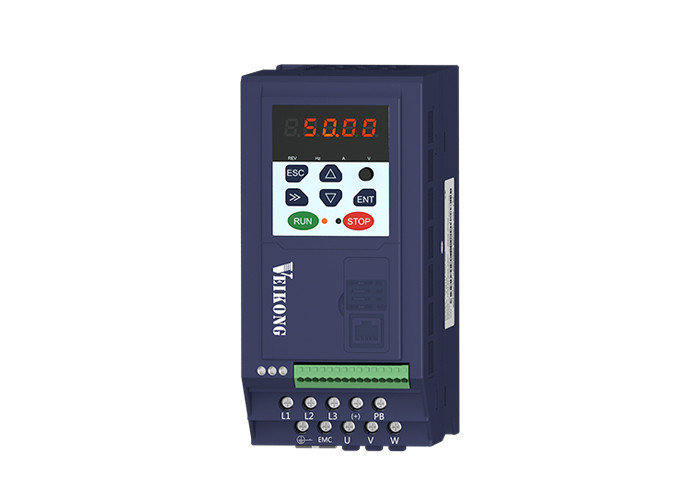

LCD Display And Simplified Parameters Veikong Mini Solar Pump Inverter VFD500M-PV 1

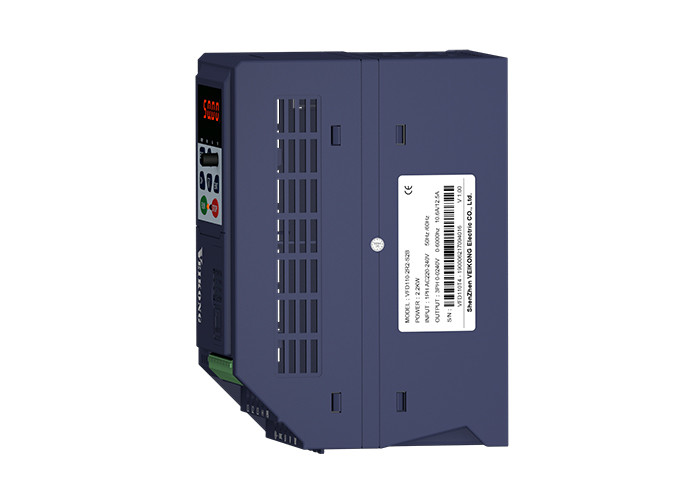

LCD Display And Simplified Parameters Veikong Mini Solar Pump Inverter VFD500M-PV 2



5. Clean and Ordered Factory Environment in Veikong Factory

LCD Display And Simplified Parameters Veikong Mini Solar Pump Inverter VFD500M-PV 3

LCD Display And Simplified Parameters Veikong Mini Solar Pump Inverter VFD500M-PV 4

LCD Display And Simplified Parameters Veikong Mini Solar Pump Inverter VFD500M-PV 5
