MPPT hybrid solar pump inverter water pump inverter 50Hz / 60Hz Output Frequency
Place of Origin China
Brand Name VEIKONG
Certification CE IEC
Model Number VFD500-PV
Minimum Order Quantity 19 pcs
Price negotiable
Packaging Details paper carton under 45kw, starting from 45kw wooden case for packing
Delivery Time 7-8 working days based on quantity
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15450 per/ month
Product Details
Product Type MPPT Hybrid Solar Pump Inverter Connection Type DC/AC Inverters
OEM Support Yes Control Model VF SVC VC
Color Type Blue And White Efficiency Rate More Than 99%
High Light

50Hz Solar mppt inverter

,

PID Solar mppt inverter

,

Hybrid Mode solar panel inverter

Product Description

MPPT hybrid solar pump inverter water pump inverter 50Hz / 60Hz Output Frequency





1. The best seller model VFD500-PV series product features for your reference

1. Support Maximum mppt efficiency 99% to help transfer the solar power better

2. Support LCD display, LED display and shuttle keypad with potentiometer

3.Support GPRS remote control to help you monitor your device more convenient

4. Special solar mppt mode and PID mode





2.Technical Questions and solutions in the following content

1. Could the Veikong solar pump inverter replace my previous PV pumping inverter?

Yes, of course. Selecting inverter model according to the rated voltage, current and power of the water pump. A bit more is better. Then take off the old one and put ours on, and then the system will work.

2.If pump is 60HZ frequency, may I know how to set max frequency?

Notice: If your motor rated frequency is 60HZ . The first solution for you, P01.06=P01.08=P11.05=60HZ. Quick setting and easier way: you should set P00.11=02 If your motor is three phase; if your motor is single phase with capacitor ,set P00.11=22; If your motor is single phase without capacitor ,set P00.11=32

3.May I know how to set minimum frequency ( for example) 30hz and maximum 50HZ?

Set P47.05=30HZ and 47.06 to some time and 47.07 to some time. Please refer to details of P47.05-47.07

4. May I know to achieve Automatic start after stop?

If it is controlled by keyboard no need to set any parameter(P47.03 is waiting time)If you want to control by external switch,First set P00.06=1 and use a wire or switch to connect com and DI1,When the switch is closed, the drive run, when the switch is open, the drive stop

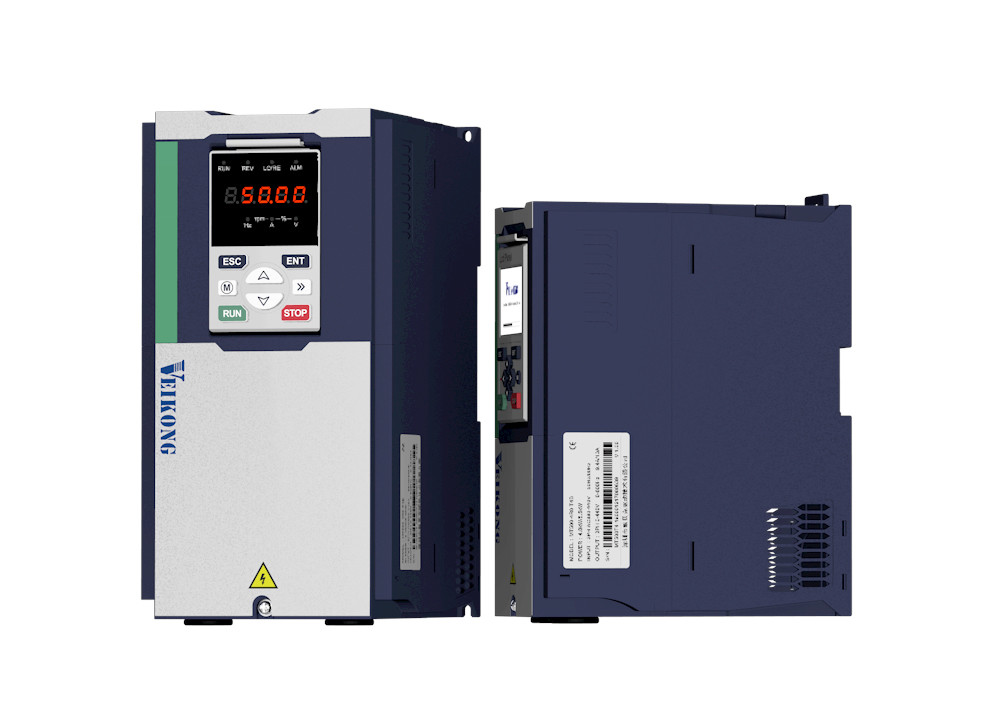

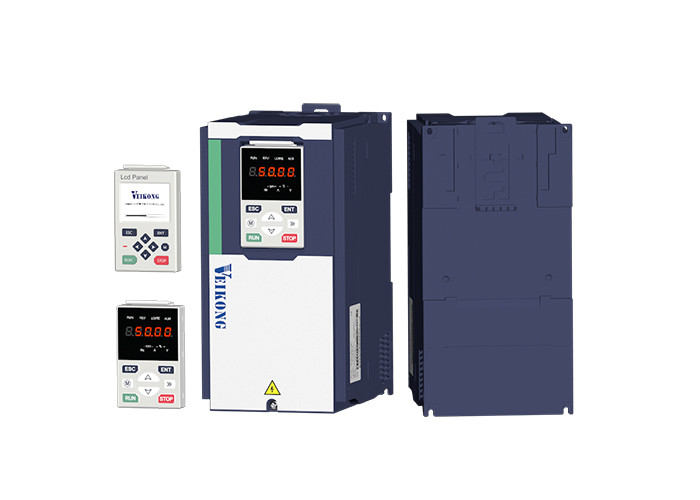

3. Product pics for your reference

MPPT hybrid solar pump inverter water pump inverter 50Hz / 60Hz Output Frequency 0

MPPT hybrid solar pump inverter water pump inverter 50Hz / 60Hz Output Frequency 1



4.Electrical Specifications for your reference

Voltage 220V 380V
Max inputDC voltage 450V 800V
RecommendedMPPTvoltage range 250~350VDC 400~600VDC
Recommendedinput voltage 305V 530V
MPPT efficiency 99%
Input channel

2

Rated output voltage 3-phase 220VAC 3-phase 380VAC
Output frequencyrange 0~60Hz
Max efficiencyof the machine 97%
Ambienttemperature range -10 °C~50 °C, derating if the temperatureis above 40 °C
Cooling method Air cooling
Protection degree IP20
Altitude Below 1000m; above 1% for every additional 100m.
Standard CE



5. Product application for your reference

MPPT hybrid solar pump inverter water pump inverter 50Hz / 60Hz Output Frequency 2



6. Factory manufacturing pics

Veikong pay much attention to the manufacturing process and environment, each process of

testing and producing have been monitored by professional workers here. Veikong, your trusted supplier!

MPPT hybrid solar pump inverter water pump inverter 50Hz / 60Hz Output Frequency 3

MPPT hybrid solar pump inverter water pump inverter 50Hz / 60Hz Output Frequency 4

MPPT hybrid solar pump inverter water pump inverter 50Hz / 60Hz Output Frequency 5



7. Product brochure and user manual download

VEIKONG solar pump inverter brochure.pdf

VEIKONG VFD500-PV Hybrid Solar pumping inverter us...
