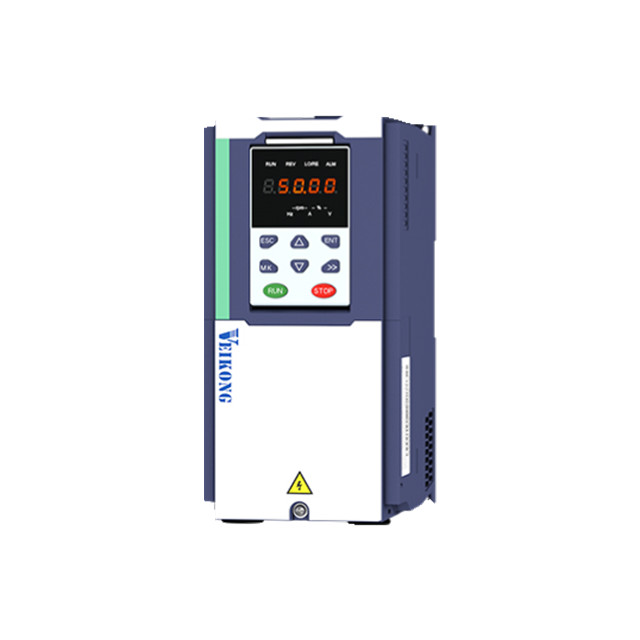

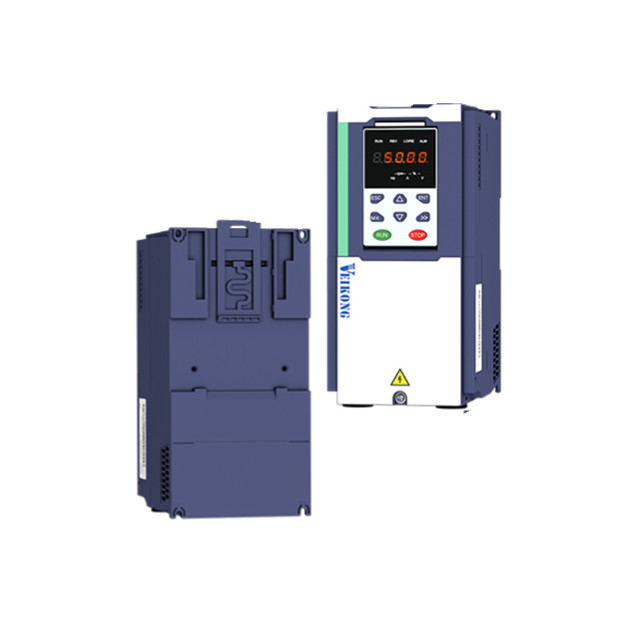

Experience the Benefits of MPPT VFD Solar Pump Inverter for Water Pumping
Place of Origin China
Brand Name VEIKONG
Certification CE
Model Number VFD500-PV
Minimum Order Quantity 24 pcs
Price negotiable
Packaging Details paper carton under 45kw, starting from 45kw wooden case for packing
Delivery Time 7 working days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15000 per/ month
Product Details
Color Blue Working Principle DC-AC
Warranty 18 Months MPPT Efficiency 99.9999%
OEM Support Control Mode VF SVC VC
Special Function MPPT +PID GPRS Support Remote Control
High Light

DC AC Water pump inverter

,

99 MPPT Water pump inverter

,

DC AC VEIKONG solar pump inverter

Product Description

Water pump inverter with more than 99% MPPT solar pump drive





1.Advantages of using solar pump inverter



Half of the energy produced around the world is used to operate pumps. Compared to diesel generator pumps, our solar pump inverter are environmentally friendly, with a long lifetime and low maintenance costs. It is independent from the grid and produces no pollution or noise. Typical applications are irrigation, community water supply, fish farming and agriculture. All of our drives have many solar-specific and pump control functions, such as built-in maximum power point tracking and dry run detection, as well as sensorless flow calculation. The maximum power point tracking (MPPT) ensures you to get the best output power possible from your solar panel and it maximizes the performance of your pump along the day while the automatic start and stop with solar radiation can save money and fuel during daylight hours VEIKONG VFD500-PV solar pumping inverter is specially designed for watering system. A high converting efficiency of 99% and advanced MPPT technology make the solar energy fully used. It converts DC power into AC to drive all kinds of motors. The intelligent design protects the pumps from many abnormal cases, such as overloading.

Experience the Benefits of MPPT VFD Solar Pump Inverter for Water Pumping 0







2. Feedback from our clients abt solar pump inverter VFD500-PV series



Veikong has a very good reputation among clienst who use solar pump inverters not only because of our high performance products and reliable service, but also the very low damage rate. We have customers in all around the world such as Russia, India and south africa etc.

Experience the Benefits of MPPT VFD Solar Pump Inverter for Water Pumping 1
Experience the Benefits of MPPT VFD Solar Pump Inverter for Water Pumping 2





3.Veikong as a professionla inverter manufacturer in China can provide High Performance solar pump inverter with nice features



Comprehensive voltage level and power range
Support single phase/three phase 220V, and three phase 380V solar water pump inverter, power from 0.4kW to 110KW

● Easy to use
Simply connect the photovoltaic panel to the inverter, no need to set any parameters, and the PV pump can be automatically started after power-on

● Multiple protection measures
It has protection functions such as PV over-voltage protection, PV polarity reverse connection alarm, over-temperature automatic derating, etc., which can effectively extend the life of the product

● Advanced MPPT algorithm
Ensure solar power tracking efficiency can reach 99%

● GPRS remote monitoring
Supports optional GPRS module, which can realize remote monitoring function of computer webpage and mobile APP

● AC/DC switching scheme
All series of products can realize automatic switching of PV DC input and grid AC input, which can meet 24 hours of no care work

Experience the Benefits of MPPT VFD Solar Pump Inverter for Water Pumping 3







4.Electrical Specifications



Voltage 220V 380V
Max inputDC voltage 450V 800V
RecommendedMPPTvoltage range 250~350VDC 400~600VDC
Recommendedinput voltage 305V 530V
MPPT efficiency 99%
Input channel

2

Rated output voltage 3-phase 220VAC 3-phase 380VAC
Output frequencyrange 0~60Hz
Max efficiencyof the machine 97%
Ambienttemperature range -10 °C~50 °C, derating if the temperatureis above 40 °C
Cooling method Air cooling
Protection degree IP20
Altitude Below 1000m; above 1% for every additional 100m.
Standard CE
