110kw 200kw PMSM Inverter General Purpose VFD For PMSM Synchronous Motor
Place of Origin China
Brand Name VEIKONG
Certification CE
Model Number VFD530
Minimum Order Quantity 1
Price Negotiable
Packaging Details the power less than 45kw use Carton, starting from 45kw use Wooden case
Delivery Time 3 days, depend on the order quantity
Payment Terms L/C, T/T, Western Union
Supply Ability 15000pcs per Month
Product Details
Product Name PMSM Inverter Power 110kw 200kw
Load Heavy Load Keypad LCD+LED+shuttle Keypad
Color Bule And White Frequency Up To 3000hz
High Light

200kw PMSM Inverter

,

VFD PMSM Inverter

,

VEIKONG General Purpose VFD

Product Description

TOP3 VFD 110kw 200kw PMSM Inverter VFD For PMSM Synchronous Motor




VFD530 features:
High performance general purpose ac drive, VFD530
Effortless process automation for a broad range of applications
VEIKONG VFD530 general purpose AC drives simplify your processes and motor control with effortless process automation. The VFD530 is a good choice for a wide range of applications, making it easy to comprehensively manage your plant. The VFD530 is part of VEIKONG ’s all-compatible drives portfolio, sharing the same architecture and user interfaces for easy usability. The VFD530 is plug-in ready to control your compressors, conveyors, mixers, pumps, centrifuges, fans and many other variable and constant torque applications in different industries.

Support IM and PMSM motor
Support different kinds of encoders
Easy to select, install and use
All essential features built into the drive for minimized number of external components
Many built-in control functions for simplified automation and process control
Straightforward settings menu and assistants for fast commissioning
Energy efficiency features for optimal energy use
Connect to any automation system or use stand-alone
Wide availability and support
Designed for reliability and consistent high quality

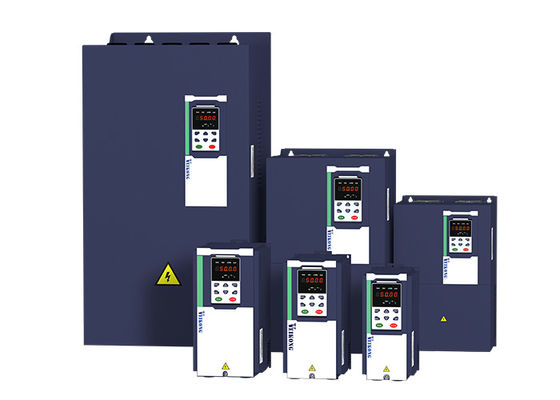

110kw 200kw PMSM Inverter General Purpose VFD For PMSM Synchronous Motor 0

VFD530 control mode:






Control

Control mode

V/f control

Sensorless flux vector control without PG card(SVC)

Sensor speed flux vector control with PG card (VC)

Operating mode

Speed control,Torque control(SVC and VC)

Speed range

1:100 (V/f)

1:200( SVC)

1:1000 (VC)

Speed control accuracy

±0.5% (V/f)

±0.2% (SVC)

±0.02% (VC)

Speed response

5Hz(V/f)

20Hz(SVC)

50Hz(VC)

frequency range

0.00~2000.00Hz(V/f)

0.00~200.00Hz(SVC)

0.00~400.00Hz(VC)

Input frequency resolution

Digital setting: 0.01 Hz

Analog setting: maximum frequency x 0.1%

Startup torque

150%/0.5Hz(V/f)

180%/0.25Hz(SVC)

200%/0Hz(VC)

Torque control accuracy

SVC:within 5Hz10%,above 5Hz5%

VC:3.0%

V/f curve

V / f curve type: straight line, multipoint, power function, V / f separation;

Torque boost support: Automatic torque boost (factory setting), manual torque boost

Frequency giving ramp

Support linear and S curve acceleration and deceleration;

4 groups of acceleration and deceleration time, setting range 0.00s ~ 60000s

DC bus voltage control

Overvoltage stall control: limit the power generation of the motor by adjusting the output frequency to avoid skipping the voltage fault;



Undervoltage stall control: control the power consumption of the motor by adjusting the output frequency to avoid yaw failure



VdcMax Control: Limit the amount of power generated by the motor by adjusting the output frequency to avoid over-voltage trip;

VdcMin control: Control the power consumption of the motor by adjusting the output frequency, to avoid jump undervoltage fault

Carrier frequency

1kHz~12kHz(Varies depending on the type)

Startup method

Direct start (can be superimposed DC brake); speed tracking start

Stop method

Deceleration stop (can be superimposed DC braking); free to stop

Maincontrol function

Jog control, droop control, up to 16-speed operation, dangerous speed avoidance, swing frequency operation, acceleration and deceleration time switching, VF separation, over excitation braking, process PID control, sleep and wake-up function, built-in simple PLC logic, virtual Input and output terminals, built-in delay unit, built-in comparison unit and logic unit, parameter backup and recovery, perfect fault record,fault reset, two groups of motor parametersfreeswitching, software swap output wiring, terminals UP / DOWN









Product series instruction:





VEIKONG VFD application:

110kw 200kw PMSM Inverter General Purpose VFD For PMSM Synchronous Motor 1







VEIKONG VFD replace famous brands

110kw 200kw PMSM Inverter General Purpose VFD For PMSM Synchronous Motor 2







110kw 200kw PMSM Inverter General Purpose VFD For PMSM Synchronous Motor 3
Quality Control
VEIKONG solar pump VFDs have passed comprehensive test process during manufacturing.



R&D test: test the hardware and software performance, to make the design more optimization, makes sure the products have excellent

performance before production;



Board test: test the performance of every board in our products, to reduce product defective rate;

IQC: take strict quality inspection for every income components, to ensure every income components are qualified.



Aging test: make the solar pump VFDs at run status, put them in the aging test house at 50°C for 48 hours, to remove every unqualified products.



Load test: the last and the most important test, add different load to the solar pump VFDs, test their input and output value, to check their

working performance. unqualified products will be removed from the team.

By applying such strict testing process, VEIKONG ensures every outgoing solar pump VFD has excellent quality.
