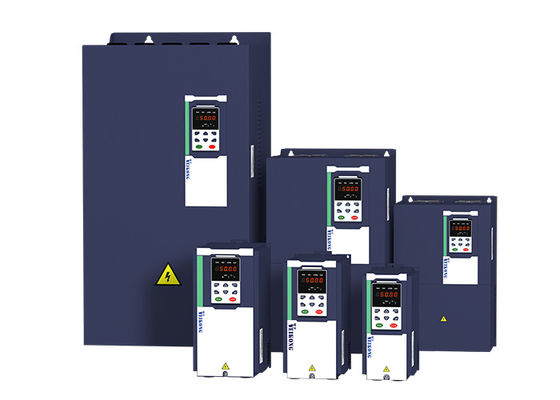

VEIKONG Single Phase Solar Pump Inverter with Maximum MPPT Efficiency 99%
| Place of Origin | China |
|---|---|
| Brand Name | VEIKONG |
| Certification | CE |
| Model Number | VFD500-PV |
| Minimum Order Quantity | 1 |
| Price | Negotiable |
| Packaging Details | the power less than 45kw use Carton, starting from 45kw use Wooden case |
| Delivery Time | 3 days, depend on the order quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 15000pcs per Month |
Product Details
| Product Name | SOLAR VFD | Output Type | Single Phase Or Three Phase |
|---|---|---|---|
| Type | DC/AC Inverters | Efficiency | 99% |
| Oem | Available | Rated Power | 1hp 2hp 2.2kw 4kw |
| Brand | VEIKONG | Special Function | MPPT+PID |
| Color | Blue And White | Orginal | China |
| Application | Agriculture Irrigation, Swimming Pool Etc | ||
| Highlight | 2HP Single Phase Solar Pump Inverter,GPRS Single Phase Solar Pump Inverter,Remote Control Solar AC Pump Controller |
||
Product Description
1HP 2HP 2.2KW 4KW SOLAR Vfd Solar Inverter Solar Ac Pump Controller
VEIKONG SOLAR PUMP INVERTER Special feature:
Support Maximum mppt efficiency 99%
Special solar mppt mode and PID mode
Support LCD display
Support GPRS remote control
Support IM AND PM pump
Support hybrid AC and DC
Support Marco mode
Support dry run protection
Support full water and low water protection
Support one button to switch AC
Electrical Specifications and Power degree
| 220V | 380V | |
| Max input DC voltage | 450V | 810V |
| DC voltage range | 150~450VDC | 300~810VDC |
| Normal working DC voltage | 260V-400V | 400V-650V |
| Recommended input mppt voltage | 330V | 550V |
| MPPT efficiency | >99% | |
| Rated output voltage | 1/3-phase 220VAC | 3-phase 380-480VAC |
| Output frequency range | 50/60Hz | |
| Max efficiency of the machine | 99% | |
| Power range | 220v 0.75kw to 75kw, 380v 1.5kw-160kw | |
| Cooling method | Air cooling | |
| Protection degree | IP20/IP65 | |
| Altitude | Below 1000m; above 1% for every additional 100m. | |
| Standard | CE/ROHS | |
Noted: We suggest solar panel power should be 1.3-1.4 times higher than solar pump power ,
And solar pump inverter power should be higher level than solar pump.
When solar pump distance to inverter higher than 100m,
It should be equipped with Output reactor or higher level power inverter.
For Solar panel,total VOC less than Maximum DC voltage of inverter and Solar panel vmp is recommend
530V for 380V pump and 305V for 220V pump.
Performance features:(220v 0.75kw-75kw, 380v 0.75kw-160kw)
Smart:
Full automatic operation, no need programming, user-friendly
Modular design, easy install , operate & maintain
GPRS Moudle Support remote monitoring & control (2G/4G/WIFI for option)
Support LogEfficieo/Lable/Color/Function OEM Serive
Efficient:
1:1 match to AC pumps with strong overload capacity
30% more water output with advanced inverter control algorithm
Maximum power point tracking (MPPT) efficiency reach 99% with advanced MPPT algorithm
Built-in booster with lower solar operating voltage to reduce solar panels costs
Good ROI (Return on Investment) against diesel powered pumping
Reliable:
Hybrid function –Solar power priority, grid power/generator dual input as compensation
Key parts use famous brand components, longer service life
Wide range of input voltage
IP65 design, continuous full-load operation between -10℃ to +60℃
Compatible with all AC pumps (0.37kw-150kw)
Certification qualified from authoritative third party, inverters can be exported to all countries
Professional & Independent R&D team, good service for pre-sales and after-sales
Fast delivery and quick response
Product Application
Quality Control
VEIKONG solar pump VFDs have passed comprehensive test process during manufacturing.
R&D test: test the hardware and software performance, to make the design more optimization, makes sure the products have excellent
performance before production;
Board test: test the performance of every board in our products, to reduce product defective rate;
IQC: take strict quality inspection for every income components, to ensure every income components are qualified.
Aging test: make the solar pump VFDs at run status, put them in the aging test house at 50°C for 48 hours, to remove every unqualified products.
Load test: the last and the most important test, add different load to the solar pump VFDs, test their input and output value, to check their
working performance. unqualified products will be removed from the team.
By applying such strict testing process, VEIKONG ensures every outgoing solar pump VFD has excellent quality.
