3 Phase Solar Pump Inverter The Optimal Choice for High-Performance Solar Water Pumps
Place of Origin China
Brand Name VEIKONG
Certification CE
Model Number VFD500-PV
Minimum Order Quantity 1
Price Negotiable
Packaging Details the power less than 45kw use Carton, starting from 45kw use Wooden case
Delivery Time depend on the order quantity
Payment Terms L/C, T/T, Western Union
Supply Ability 15000pcs per Month
Product Details
Product Name 11kw Solar Pump Inverter Voltage 380v/220v
Display LED+LCD Frequency 50hz/60hz
MPPT 99% OEM Available
Special Function MPPT + PID GPRS Support
PC Tool Software Support Warranty 18 Months Or More
Quantity Standard High Performance
High Light

IP21 3 Phase Solar Pump Inverter

,

7.5kw 3 Phase Solar Pump Inverter

,

MPPT Control Solar Pump Inverter

Product Description

3 Phase Solar Pump Inverter MPPT Control supplier 7.5kw 11kw 15kw





220V

380V

Max input DC voltage

450V

810V

DC voltage range

150~450VDC

300~810VDC

Normal working DC voltage

260V-400V

400V-650V

Recommended input mppt voltage

330V

550V

MPPT efficiency

>99%

Rated output voltage

1/3-phase 220VAC

3-phase 380-480VAC

Output frequency range

50/60Hz

Max efficiency of the machine

99%

Ambient temperature range

-10 °C~50 °C, derating if the temperature is above 40 °C

Cooling method

Air cooling

Protection degree

IP20/IP21

Altitude

Below 1000m; above 1% for every additional 100m.

Standard

CE/ROHS




Product Knowledge



1. A solar water pump system is essentially an electrical pump system in which the electricity is provided by one or several PhotoVoltaic (PV) panels. A typical solar powered pumping system consists of a solar panel array that powers an electric motor, which in turn powers a bore or surface pump.



2. What is solar pump inverter?

A solar inverter or PV inverter,solar pump inverter,solar pump controller,solar water pump inverter,solar pump drive,solar water pump controller,solar mppt vfd,solar mppt frequency inverter,solar frequency inverter,solar pump vsd,solar frequency inverter,solar vfd are all key words

IT is a type of electrical converter which converts the variable direct current (DC) output of a photovoltaic (PV) solar panel into a utility frequency alternating current (AC) that can be fed into a commercial electrical grid or used by a local, off-grid electrical network.



It is able to convert DC voltage coming from solar panels into AC voltage for powering any pump driven by a three-phase motor.

Pump speed is constantly adapted to available solar irradiation thus maximising the amount of pumped water and making possible operation even in conditions of low sunlight.

It also offers complete pump protection against surges, overloads and dry running.

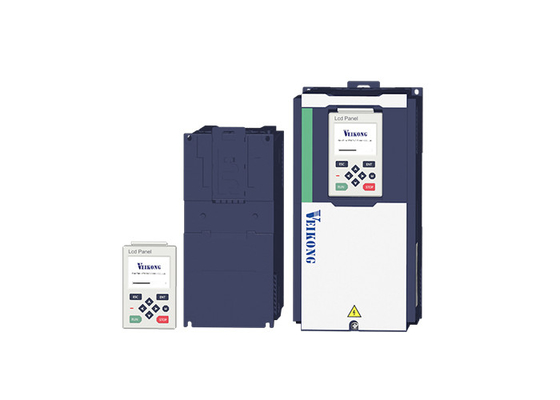

 3 Phase Solar Pump Inverter The Optimal Choice for High-Performance Solar Water Pumps 0
Accessories:

1. GPRS (support 2g/3g/4g internet)

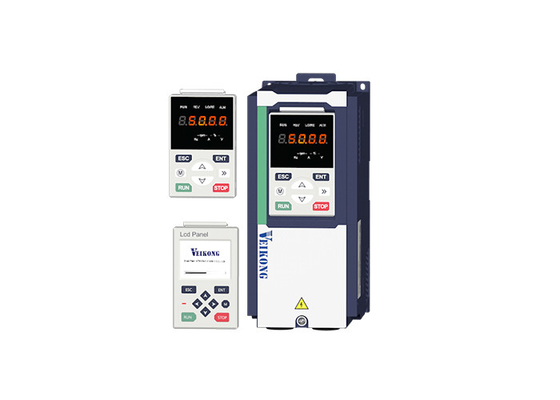

3 Phase Solar Pump Inverter The Optimal Choice for High-Performance Solar Water Pumps 1

2. LCD keypad


veikong LED display

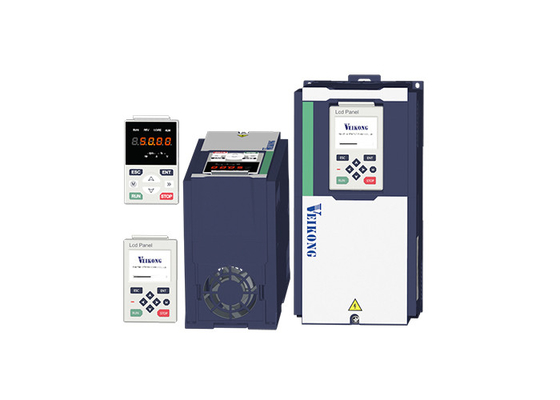

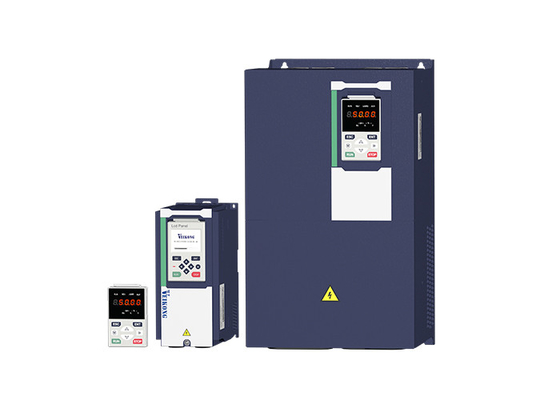

VFD500-PV 22KW 380V inverter picture:
3 Phase Solar Pump Inverter The Optimal Choice for High-Performance Solar Water Pumps 3


Package:

When power is less than 45kw, we use carton package:
3 Phase Solar Pump Inverter The Optimal Choice for High-Performance Solar Water Pumps 4

When power is more than 45kw, we use wood case package:
3 Phase Solar Pump Inverter The Optimal Choice for High-Performance Solar Water Pumps 5


3 Phase Solar Pump Inverter The Optimal Choice for High-Performance Solar Water Pumps 6

1. VEIKONG solar water pump system is essentially an electrical pump system in which the electricity is provided by one or several PhotoVoltaic (PV) panels. A typical solar powered pumping system consists of a solar panel array that powers an electric motor, which in turn powers a bore or surface pump.





2. What is solar pump inverter?

A solar inverter or PV inverter,solar pump inverter,solar pump controller,solar water pump inverter,solar pump drive,solar water pump controller,solar mppt vfd,solar mppt frequency inverter,solar frequency inverter,solar pump vsd,solar frequency inverter,solar vfd are all key words

IT is a type of electrical converter which converts the variable direct current (DC) output of a photovoltaic (PV) solar panel into a utility frequency alternating current (AC) that can be fed into a commercial electrical grid or used by a local, off-grid electrical network.



It is able to convert DC voltage coming from solar panels into AC voltage for powering any pump driven by a three-phase motor.

Pump speed is constantly adapted to available solar irradiation thus maximising the amount of pumped water and making possible operation even in conditions of low sunlight.

It also offers complete pump protection against surges, overloads and dry running.
