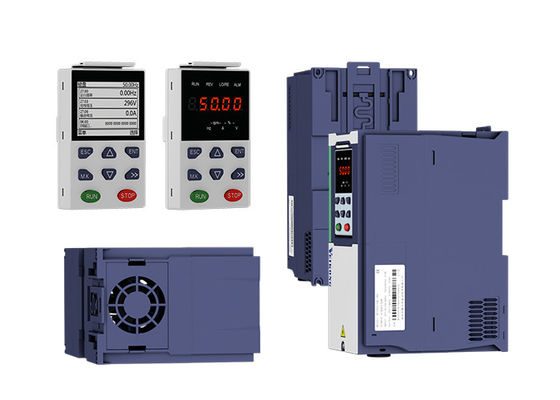

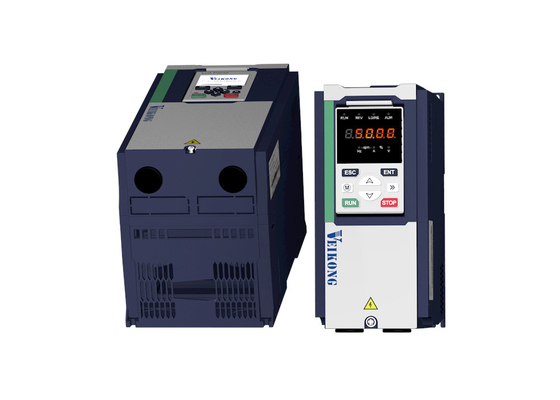

External Switch Control MPPT VFD Solar Pump Inverter 1.5kw-11kw for Pumping
Place of Origin China
Brand Name VEIKONG
Certification CE
Model Number VFD500-PV
Minimum Order Quantity 1
Price Negotiable
Packaging Details the power less than 45kw use Carton, starting from 45kw use Wooden case
Delivery Time depend on the order quantity
Payment Terms L/C, T/T, Western Union
Supply Ability 15000pcs per Month
Product Details
Product Name MPPT Solar Pump Inverter Voltage 220v/380v
Type DC/AC Inverters Output Frequency 50Hz/60Hz
Efficiency Higher Than 99% Display LED+LCD
Color Dark Blue Brand VEIKONG
Original China Warranty Period 18 Months Or More
GPRS Supported
High Light

99% MPPT VFD Solar Pump Inverter

,

1.5kw MPPT VFD Solar Pump Inverter

,

11kw Ac Drives Manufacturers

Product Description

99% MPPT VFD Solar Pump Inverter 1.5kw To 11kw For Pumping System



DC AC MPPT Solar Pump Inverter 1.5kw 2.2kw 4kw 5.5kw 7.5kw 11kw VFD




VEIKONG VFD500-PV solar pumping inverter is specially designed for watering system. A high converting efficiency of 99% and advanced MPPT technology make the solar energy fully used. It converts DC power into AC to drive all kinds of motors. The intelligent design protects the pumps from many abnormal cases, such as over-loading, over-voltage, dry-running, over-heating,low frequency and et

● Easy to use

Simply connect the photovoltaic panel to the inverter, no need to set any parameters, and the PV pump can be automatically started after power-on

● Multiple protection measures It has protection functions such as PV over-voltage protection, PV polarity reverse connection alarm, over-temperature automatic derating, etc., which can effectively extend the life of the product

● Advanced MPPT algorithmEnsure solar power tracking efficiency can reach 99%

● GPRS remote monitoringSupports optional GPRS module, which can realize remote monitoring function of computer webpage and mobile APP

● AC/DC switching schemeAll series of products can realize automatic switching of PV DC input and grid AC input, which can meet 24 hours of no care work


1. How to achieve Automatic start after stop?

If it is controlled by keyboard no need to set any parameter. If you want to control by external switch

As the default control mode is keypad control, First set P00.06=1 and use a wire or switch to connect com and DI1,When the switch is closed, the drive run, when the switch is open, the drive stop



2.If pump is 60HZ frequency, how to set max frequency?

Notice: If your motor rated frequency is 60HZ First solution for you, P01.06=P01.08=P11.05=60HZ.

Quick setting and easier way: you should set P00.11=02 If your motor is three phase; if your motor is single phase with capacitor ,set P00.11=22;If your motor is single phase without capacitor ,set P00.11=32VEIKONG solar pump inverter applicationVEIKONG solar application





Electrical Specifications





220V

380V

Max input DC voltage

450V

810V

DC voltage range

150~450VDC

300~810VDC

Normal working DC voltage

260V-400V

400V-650V

Recommended input mppt voltage

330V

550V

MPPT efficiency

>99%

Rated output voltage

1/3-phase 220VAC

3-phase 380-480VAC

Output frequency range

50/60Hz

Max efficiency of the machine

99%

Ambient temperature range

-10 °C~50 °C, derating if the temperature is above 40 °C

Cooling method

Air cooling

Protection degree

IP20/IP21

Altitude

Below 1000m; above 1% for every additional 100m.

Standard

CE/ROHS







Accessories:



1. GPRS (support 2g/3g/4g internet)



2. Output reactor



3. LCD keypad



VEIKONG LCD display




VEIKONG study famous brands inverter advantages

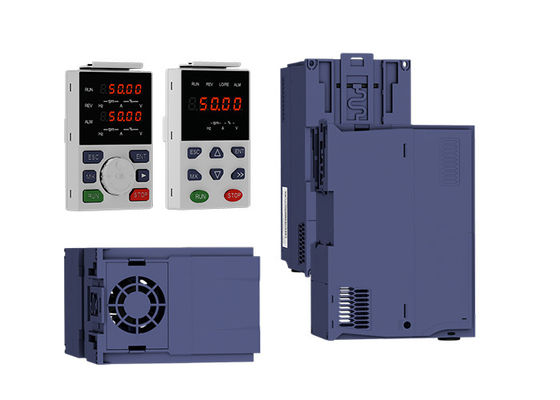

External Switch Control MPPT VFD Solar Pump Inverter 1.5kw-11kw for Pumping 3

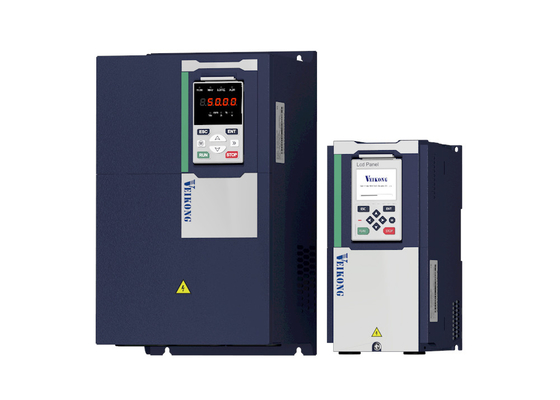

External Switch Control MPPT VFD Solar Pump Inverter 1.5kw-11kw for Pumping 4





For 220V single phase motor connection

1: Single phase asynchronous motor wiring method (without starting capacitor):

Notice: U is connected to the common end of the starting winding and the working winding, V is connected to the starting winding, and W is connected to the working winding;



Single-phase asynchronous motor if the rotary steering is not correct, you can change the V and W wiring or set P22.13=1.



First solution: Set parameter P11.01=1 (Single phase motor type without capacitor) or second solution: set P00.11=31 if your motor frequency is 50 hz or set P00.11=32 if your motor frequency is 60HZ

External Switch Control MPPT VFD Solar Pump Inverter 1.5kw-11kw for Pumping 5





For 220V single phase motor connection

2: Single-phase asynchronous motor wiring method (with capacitor)



Notice1: First solution: Connect motor cable to power terminal U and V and enter BSC mode to Set parameter P23.15=0(output phase loss shielding protection) or second solution: set macro P00.11=21 if your motor frequency is 50HZ or set P00.11=22 if your motor frequency is 60HZ

External Switch Control MPPT VFD Solar Pump Inverter 1.5kw-11kw for Pumping 6
