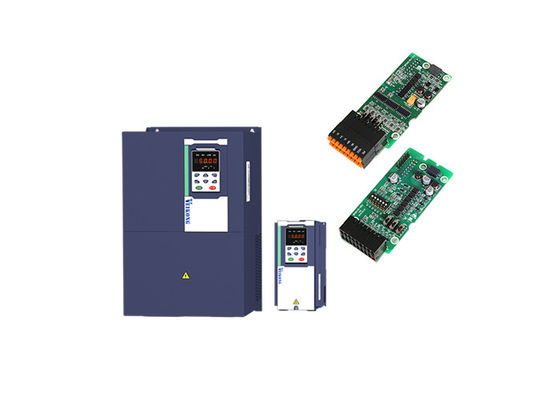

3 Phase 0.75kw 1.5kw 2.2kw MPPT Solar Pump Inverter 2HP 3HP 5HP
Place of Origin China
Brand Name VEIKONG
Certification CE
Model Number VFD500-PV
Minimum Order Quantity 1
Price Negotiable
Packaging Details the power less than 45kw use Carton, starting from 45kw use Wooden case
Delivery Time 3 days, depend on the order quantity
Payment Terms L/C, T/T, Western Union
Supply Ability 15000pcs per Month
Product Details
Product Name Three Phase Solar Pump Inverter Current Deoends
Output Type Single Or Three Phase Frequency 50hz/60hz
Output Power 2hp 3hp 5hp Voltage 220v/380v
High Light

2.2kw MPPT Solar Pump Inverter

,

0.75kw Solar 3 Phase Inverter

,

1.5kw MPPT Solar Pump Inverter

Product Description

3 Phase 0.75kw 1.5kw 2.2kw MPPT Solar Pump Inverter 2HP 3HP 5HP



Solar pump inverter 380v 2.2kw 4kw with LCD keypad for irrigation system



Advantages:

VEIKONG solar pump inverter



1. Support Maximum mppt efficiency more than 99%
2. Special solar mppt mode and PID mode
3. Support LCD display, dual display
4. Support GPRS remote control
5. Support IM AND PM pump
6. Support hybrid AC and DC
7. Support Marco mode
8. Support dry run protection
9. Support full water and low water protection
10. Support one button to switch AC


Electrical Specifications and Power degree




220V

380V

Max input DC voltage

450V

810V

DC voltage range

150~450VDC

300~810VDC

Normal working DC voltage

260V-400V

400V-650V

Recommended input mppt voltage

330V

550V

MPPT efficiency

>99%

Rated output voltage

1/3-phase 220VAC

3-phase 380-480VAC

Output frequency range

50/60Hz

Max efficiency of the machine

99%

Ambient temperature range

-10 °C~50 °C, derating if the temperature is above 40 °C

Cooling method

Air cooling

Protection degree

IP20/IP21

Altitude

Below 1000m; above 1% for every additional 100m.

Standard

CE/ROHS


Product Application

3 Phase 0.75kw 1.5kw 2.2kw MPPT Solar Pump Inverter 2HP 3HP 5HP 03 Phase 0.75kw 1.5kw 2.2kw MPPT Solar Pump Inverter 2HP 3HP 5HP 1
3 Phase 0.75kw 1.5kw 2.2kw MPPT Solar Pump Inverter 2HP 3HP 5HP 2
3 Phase 0.75kw 1.5kw 2.2kw MPPT Solar Pump Inverter 2HP 3HP 5HP 3



For 220V single phase motor connection



1: Single phase asynchronous motor wiring method (without starting capacitor):

Notice: U is connected to the common end of the starting winding and the working winding, V is connected to the starting winding, and W is connected to the working winding;



Single-phase asynchronous motor if the rotary steering is not correct, you can change the V and W wiring or set P22.13=1.



First solution: Set parameter P11.01=1 (Single phase motor type without capacitor) or second solution: set P00.11=31 if your motor frequency is 50 hz or set P00.11=32 if your motor frequency is 60HZ





For 220V single phase motor connection



2:Single-phase asynchronous motor wiring method (with capacitor)



Notice1:First solution: Connect motor cable to power terminal U and V and enter BSC mode to Set parameter P23.15=0(output phase loss shielding protection) or second solution: set macro P00.11=21 if your motor frequency is 50HZ or set P00.11=22 if your motor frequency is 60HZ
