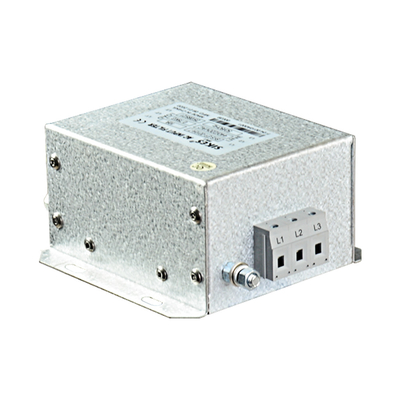

VEIKONG 3 Phase VFD Filter for General Purpose Noise Suppression and Insulation Resistance
Place of Origin China
Brand Name VEIKONG
Certification CE
Model Number VKS
Minimum Order Quantity 1
Price Negotiable
Packaging Details Carton and Wooden Box
Delivery Time 3 days, depend on the order quantity
Payment Terms Western Union, T/T, L/C, D/A, D/P, PayPal
Supply Ability 15000pcs per Month
Product Details
Product Name 630A 800A 1000A 1200A 3 Phase Output EMC EMI Filters Current 5A-1200A
Rated Voltage 380V-440VAC Customized Acceptable
Type EMI Filter Transfer Function Low Pass
Original China Color Silver
Quality Well Brand VEIKONG
High Light

1200A Vfd Emc Filte

,

1000A Vfd Emc Filter

,

800A vfd output filter

Product Description

The introduction of VEIKONG company



VEIKONG is the top 10 VFD supplier in China and we also have many other reactors related like the filters, reactors ect.

Besides, we have our onw R&D to update VEIKONG product both hardware and software to improve the product quality and some inner software problem.

Of course, we can also support OEM service, since we also have the patent for our own design inverters.

If you have any interest, please feel free to communicate with us.

VEIKONG VFD500 series

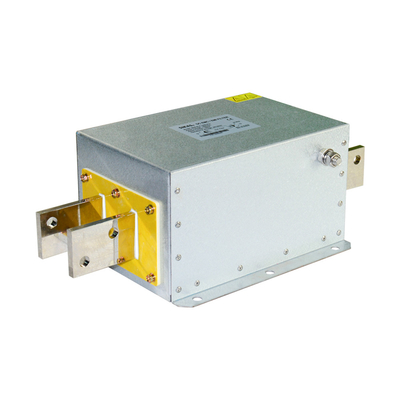

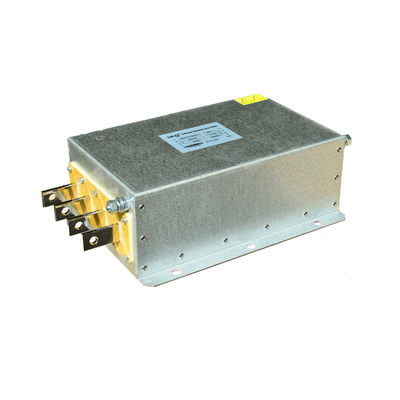

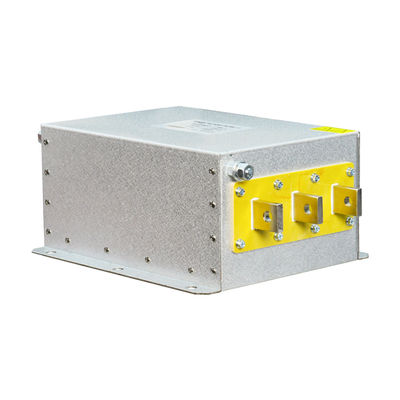

630A 800A 1000A 1200A 3 Phase Output EMC EMI Filters For AC Motor VFD



Product feature



General purpose filter with IEC connector providing effective line-to-ground noise up to 10 amp., 250VAC



Low cost



Compact design



250 Faston terminals (YA-T1)



Solder lug terminals (YA-T3)



All parts are approved by UL, CSA, VDE, SEMKO, NEMKO, DEMKO and FIMKO



The values of CX,CY are optional.



With or without resistor.



Specification



Rated Voltage

AC 380-480V

Test Voltage (1 minute)

Phase to phase DC 1500V



Phase to ground AC 1500V / DC 2500V

Operating Frequency

50/60HZ

Range of Temperature

-25 to 85℃

Insulation Resistance

Phase to ground (up to 300A) ≥ 1500MΩ



Application



General purpose three phase filtering


Three-phase motor drives


Inverters and converters


UPS and SMPS


Industrial automation equipment


Electrical Diagram



VEIKONG 3 Phase VFD Filter for General Purpose Noise Suppression and Insulation Resistance 1



Product Size



VEIKONG 3 Phase VFD Filter for General Purpose Noise Suppression and Insulation Resistance 2

VEIKONG 3 Phase VFD Filter for General Purpose Noise Suppression and Insulation Resistance 3
