50A EMI Power Line Filter for VFD and Converter with Leakage Current Reduction Technology
Place of Origin China
Brand Name VEIKONG
Certification CE
Model Number VKS
Minimum Order Quantity 1
Price Negotiable
Packaging Details Carton
Delivery Time 3 days, depend on the order quantity
Payment Terms Western Union, T/T, L/C, D/A, D/P, PayPal
Supply Ability 15000pcs per Month
Product Details
Product Name 380v Filter For Vfd Transfer Function Low Pass
Rated Current 50A Frequency 50/60hz
Insertion Loss 0-90db Line To Ground 2250VDC
Brand VEIKONG Original China
OEM Supported Color Silver
High Light

380v VFD Filter

,

VFD Filter 50A

Product Description
Emi filter 50A noise rfi mains electronical filters for VFD and converter

EMI Power Line Filter from the LC low-pass passive network components.It uses principles of impedance mismatch,so that by
the attenuation of electromagnetic interference signals.
Filter filtering effect depends on the extent of impedance mismatch,the greater the impedance difference, the better the
filter. For example,to get better results, for low-impedance power supply side, should be accompanied by a high input
impedance of the filter;pairs of high input impedance of the load side, then the filter with low output impedance.



Our Advantages



1. After years of efforts of the company's personnel, products successively obtained the cUL,
TUV,CQC, CE, ROSH certifications.

2. We have a professional R&D team; our aims is we won't let customers spend any extra money!

3. National high-tech enterprises, brand assurance, reliable quality, and we have the relevant

product certifications.

4. We cooperate with top scientific research laboratories to provide free EMC rectification technical

support, samples; and free conduction test.

5. Automation technology, scale production, great price,excellent, service, fast delivery! Free replacement

within three months, free maintenance within six years, life-long maintenance!

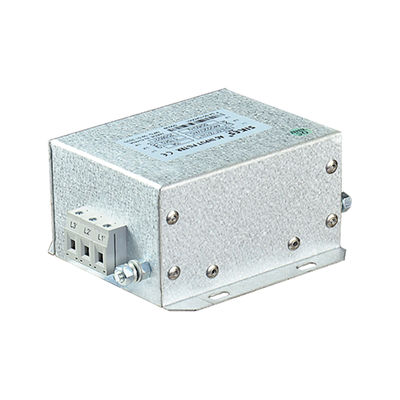

50A EMI Power Line Filter for VFD and Converter with Leakage Current Reduction Technology 0

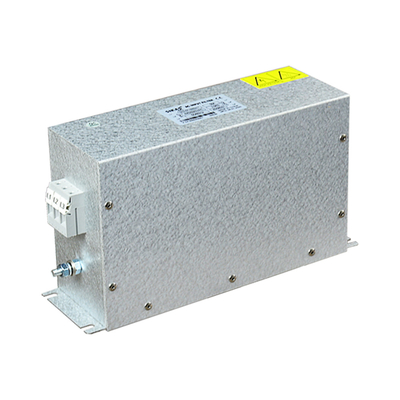

50A EMI Power Line Filter for VFD and Converter with Leakage Current Reduction Technology 1

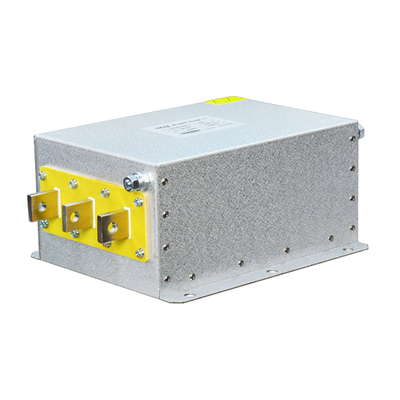

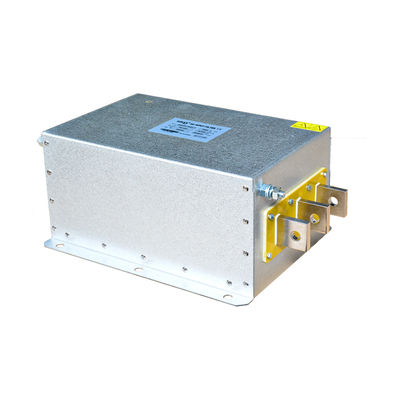

50A EMI Power Line Filter for VFD and Converter with Leakage Current Reduction Technology 250A EMI Power Line Filter for VFD and Converter with Leakage Current Reduction Technology 3





50A EMI Power Line Filter for VFD and Converter with Leakage Current Reduction Technology 450A EMI Power Line Filter for VFD and Converter with Leakage Current Reduction Technology 5




Leakage current
Leakage current: at a given voltage and frequency, the current flow between the filter-phase line or the midline and ground.
Under normal circumstances, leakage current from the grounded capacitors (Y capacitor) is caused due to security
considerations, a variety of different testing standards for various types of equipment, leakage current from the strict 1
imitations. In particular, medical equipment, in choosing a filter, be sure to take full account of the leakage current.
Leakage current typically 250VAC 50HZ, below the ambient temperature is 20°C measured. Works as follows:

Low leakage current to meet with medical machine special requirements.
Applicable to suppressing noise and high frequency harmonic in power.
Low leakage current with high insert lose of noise.
Control EMI interference between line and line,line and ground.
Available for electronic equipments and measuring instruments.

Model Low Pass EMI Filter
Transfer Function Low Pass
Package Type Surface Mount
Nominal Center Frequency 10K-30MHZ
Insertion Loss 60~90dB
Input Impedance 50Ω
Rated Voltage 380V/440V
Rated Current 1A-100A
Environmental Temperature 40°C
Temperature Range 25 / 085 / 21
Operating Frequency 50/60HZ
Line to Line 1450VDC
Line to Ground 2250VDC or 2000VAC
Maximum Leakage Current 115VAC/60HZ 1.4mA Max. 250VAC/60HZ 2.5mA Max
MOQ 5pcs
Price USD60~80/Meter
Lead Time 5~15 weekday for Low Pass EMI Filter
