500W 1000W 3000W Breaking Resistance In Vfd 1.5R 3R 5R 7R 100R
Product Details
| Product Name | 3000W Braking Resistors | Operating Temperature | -55℃~+125℃ |
|---|---|---|---|
| Material | Aluminum House/Corrugated | Rated Power | 500-5000W |
| Resistance | 1-150 Ohm | ||
| High Light | 3000W Breaking Resistance In Vfd,1000W Breaking Resistance In Vfd,100R braking unit for vfd |
||
Product Description
Resistance 1.5R 3R 5R 7R 100R 500W 1000W 3000W Braking Resistors
Resistor
1) Power supplies.
2) Large electrical and production machinery.
3) Load test simulation.
4) Motor start/stop cycles.
5) Capacity charge.
6) Load test simulation.
7) Equipment dischargen.
8) Eynamic braking.
2) Large electrical and production machinery.
3) Load test simulation.
4) Motor start/stop cycles.
5) Capacity charge.
6) Load test simulation.
7) Equipment dischargen.
8) Eynamic braking.
Chief Characteristic:
1.The vertical corrugated winding.
2.Coating:Flameproof silicon resin.
3.Core: Ceramic rod (50%AL2O3).
4.Tolerances : +/-5% - +/-10%.
5.Resistance temperature coeffcient: +/-50PPM - +/-400PPM.
6.resistance range: 1 Ohm - 150 Ohm,Non inductive products are available.
7:Suitable for large power equipment of DC or low frequency AC circuit.
Applications scope:
1.Anti-fouling.
2.High Temperature.
3.Anit - Flaming.
4.Anit-Corrosion.
5.Harsh Environment.
6.Loading.
7.Divider.
8.High-speed train braking units.
9.Craning.
10.Power Supply.
11.Capacitor Discharge.
12.Automotive System.

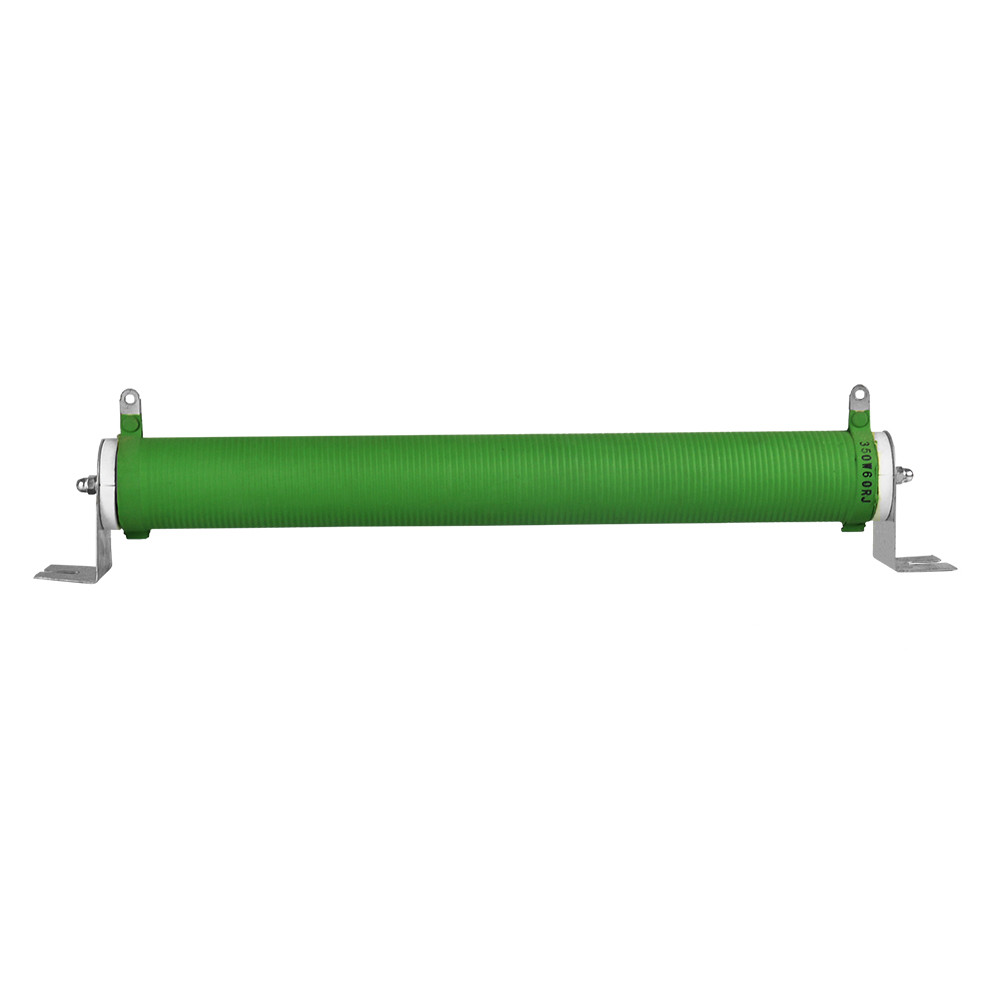

wire wound ceramic braking resistor
Two terminal extensions are fixed on both ends of a ceramic tube on whose surface winds wave-shaped alloy resistance wire and a high temperature-resistant and fireproof coating are applied.The ceramic tube can function as resistance wire skeleton and heat raditor as well.This product can be customized to special needs of customers and applicable to simulation load test,equipment discharge,automated control and inverter’s energy loss brake.
Product features
- 1. Power Range:50w-2500w
- 2. Voltage Range:0.5kv-10kv
- 3. Resistance Range:1R-1KR
- 4. Dielectric Strength:AC3KV 50Hz/5s
- 5. IPProtection:IP00
- 6. Temperature Coefficient:0Cr25AL5
- 7. Advantage:High Voltage Application
- 8. Disadvantage:Less Vibration
Material Specifications
| Element | Copper-nickel, nickel-chrome |
| Core | OCr25AL5 |
| Enclosure | Aluminum |
| Standard terminals | Copper / Copper bar |
| Partmarking | Partnumber, value, date code, MRC |
Technial Specifications
| Power Range | 60W-10KW |
| Voltage Range | ＜1.2KV |
| Resistance Range | 1R-10KR |
| Dielectric Strength | AC 3KV 50Hz / 5S |
| IP Protection | IP23 / IP65 |
| Vibration | 1.5g |
| Temperature Coefficient | ≤ 400ppm/℃ |
| Production Standards | GB8898-2011 |
Applications
Product Size
| Power rating | 40W-3000W | ||
| Resistance value | 0.01Ω-100KΩ | ||
| Resistance tolerance | 0.1%, 0.5%, 1%, 5%, 10% | ||
|
Features
|
1.High insulating capacity,encapsulation by non-flame inorganic material,good performance in vibration humidity and heat and good dissipation. 2.Small size,high power load 3.Widely used in power supply,transducer, elevator,arena audio and Lifting,Braking,Ship ,Load equipment, high requirement equipment industry,ect. 4.Multi connection form will be easily to fix |
||
|
Common specification |
60W50Ω,80W20Ω,80W60Ω,80W100Ω,100W20Ω,100W100Ω,120W68Ω, 150W20Ω,200W20Ω,200W200Ω,300W20Ω,300W150Ω,300W200Ω,400W150Ω, 400W20Ω,500W100Ω,500W20Ω,800W75Ω,1040W50Ω,1040W75Ω ect. |
||
| Remark |
ASZ aluminum resistor successfully applied for national patent (ZL2004300866567) and is the best alternatives compared with traditional |
||
|
Performance
|
Test item | Test condition | performance |
|
Temperature coefficient |
JIS-C-5202 5-2 | ±250PPM/Max | |
|
Power rating load |
JIS-C-5202 5-4 | R≤±(1%+0.1Ω)Surface temperature ≤350 | |
|
Short-term overload |
JIS-C-5202 5-5 1000% rated power 5s |
Free or appearance or structural irregularity R≤±(2%+0.1Ω) |
|
|
Insulation resistance |
JIS-C-5202 5-6 1000V DC |
100 MΩ Min | |
|
Dielectric withstanding voltage |
JIS-C-5202 5-7 1500V DC 60s |
Free or appearance or structural irregularity R≤±(0.1%+0.05Ω) |
|
| Vibration |
JIS-C-5202 6-3 1.5mm,10-50-10Hz/min |
Free or appearance or structural irregularity R≤±(1%+0.05Ω) |
|
|
Thermal shock |
JIS-C-5202 7-3 Room temp 30 min ON-55 15 min OFF |
Resistor free of structural irregularity crack of silicon cement surface R≤±(2%+0.1Ω) |
|
| humidity |
JIS-C-5202 7-5 40 90%RH 240H |
Free or appearance or structural irregularity R≤±(3%+0.1Ω) |
|
| Load life |
JIS-C-5202 7-10 90Min ON-30Min OFF 500H |
Free or appearance or structural irregularity Discoloration of marking R≤±(3%+0.1Ω) |
|
| Cooperation partner | SAMSUNG,LG,TAIDA,CHANGHONG,TCL,KONKA ,ECT | ||
| NOTE |
1. For customer specifications,please contact us to discuss the details. 2. Different power rating owning multi weight ,dimension and packing . 3. More details, please contact us. |
||
