Optimize Heat Dissipation with Aluminum Housed VFD Braking Resistor
Place of Origin China
Brand Name VEIKONG
Certification CE
Model Number VKS
Minimum Order Quantity 1
Price Negotiable
Packaging Details Carton and Wooden Box
Delivery Time 3 days, depend on the order quantity
Payment Terms Western Union, T/T, L/C, D/A, D/P, PayPal
Supply Ability 15000pcs per Month
Product Details
Product Name 150W Aluminum And Corrugated Resistance Technology Wirewound
Operating Temperature -55℃~+125℃ Material Aluminum House/Corrugated
Rated Power 60W 80W 100W 120W 150W Resistance 1R-100K
Color Silver Brand VEIKONG
Original China
High Light

VFD Braking Resistor 60W

,

VFD Braking Resistor 80W

,

motor brake resistor 120W

Product Description

60W 80W 100W 120W 150W Aluminum and Corrugated resistance braking resistor ​




Resistor

1)  Power supplies.
2)  Large electrical and production machinery.
3)  Load test simulation.
4)  Motor start/stop cycles.
5)  Capacity charge.
6)  Load test simulation.
7)  Equipment dischargen.
8)  Eynamic braking.

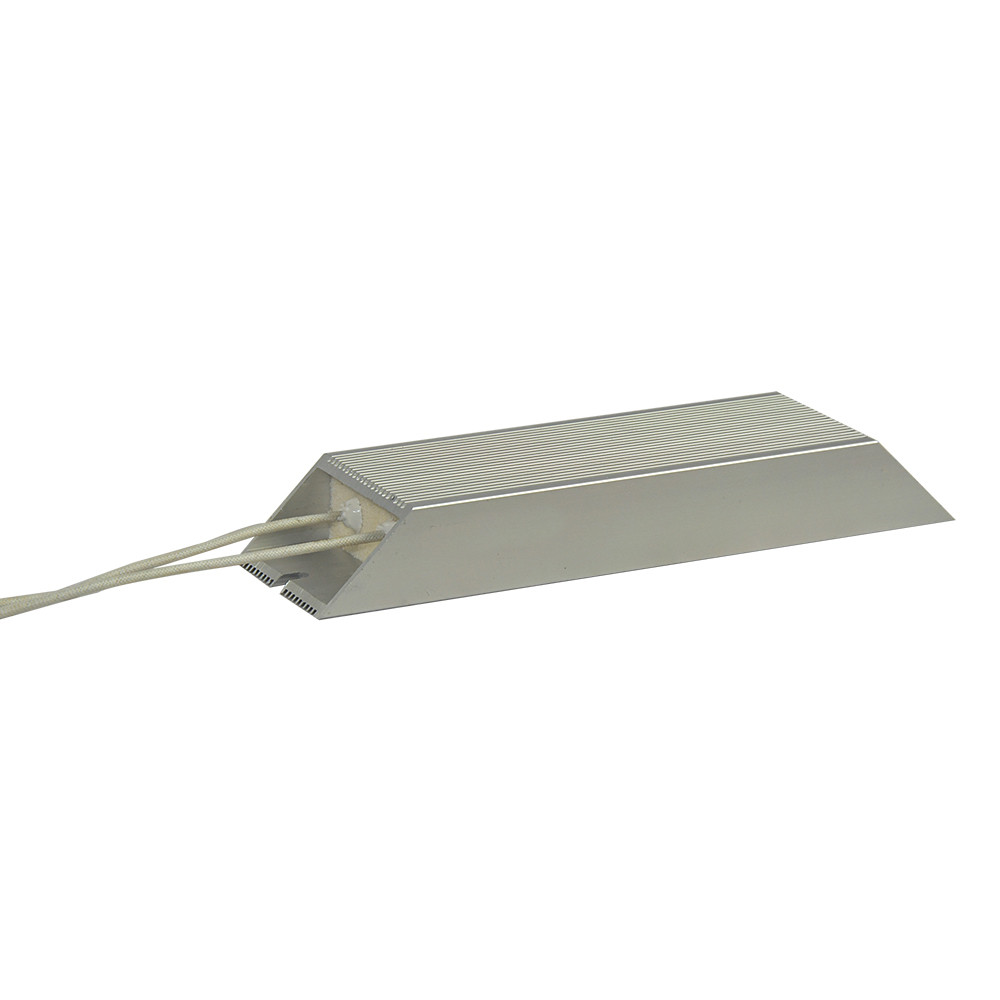

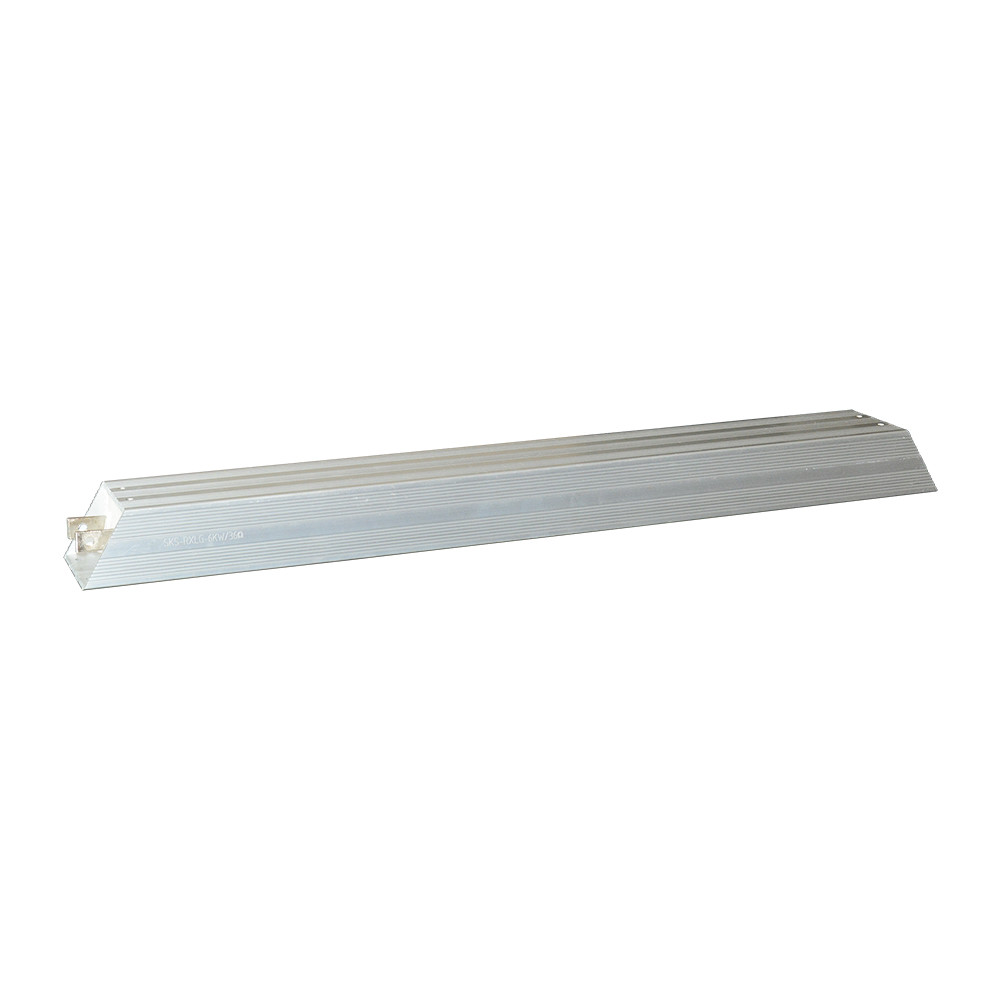

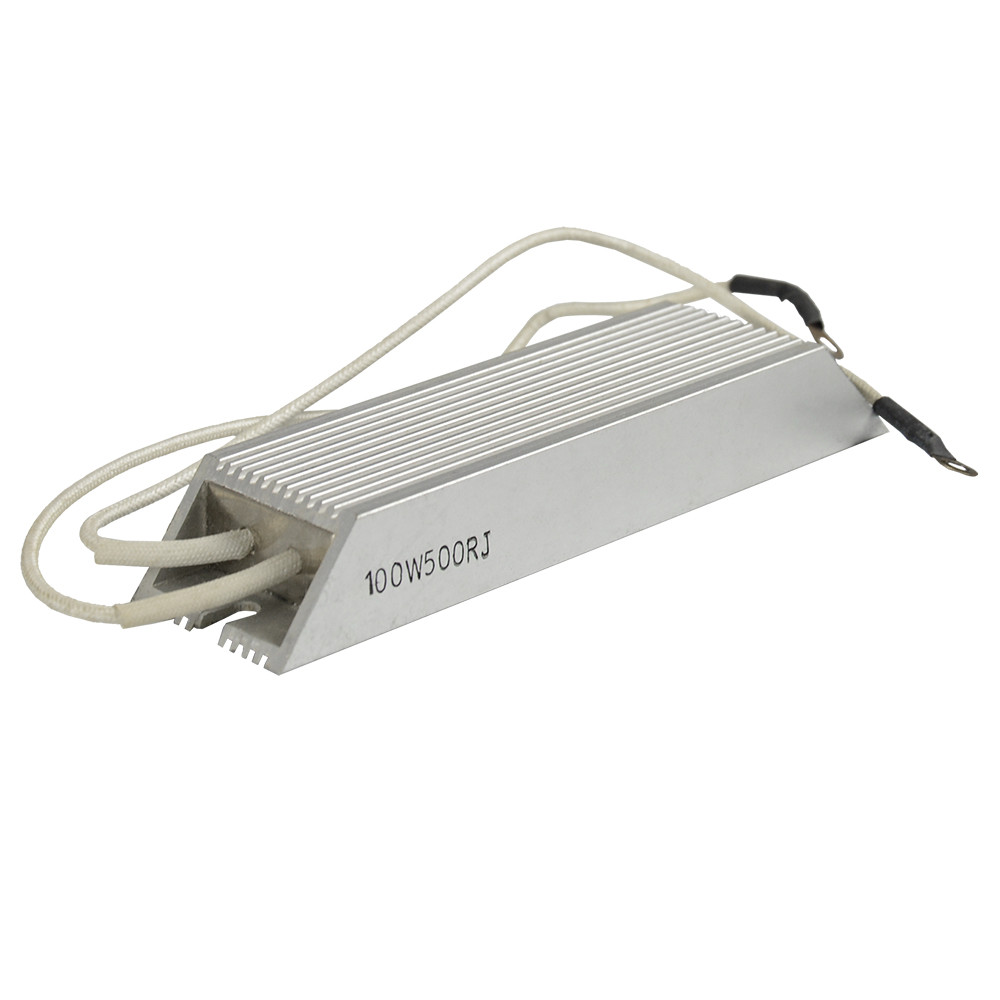

Aluminum Braking Resistor

*  Aluminum Braking Resistor can be used in the atrocious environment.
*  Aluminum Housed surface with good performance in heat.
*  Nylon wrapped wire with solder lug terminals.
*  Suitable for cooling plate installation; Widely used in power supply,transducer,elevator and so on.
*  Application: VFD,elevators, electric power system,current limiting load and other electrical equipment.
*  Product Name : Braking Resistor;Resistance Value : 18 Ohm;Rated Power : 100W
*  Overall Size(Approx) : 13 x 4 x 2cm / 5.1" x 1.6" x 0.8"(L*W*T);Cable Size : 42.5 x 0.3cm / 16.7" x 0.118"( L*OD)
*  Installing Holes Size(Approx) : 1 x 0.64cm / 0.394" x 0.252"(L*W);Terminals Size(Approx) : 0.76 x 0.4cm / 0.299" x
0.157"(OD*Inner D)
*  External Material : Aluminum;Color : Silver Tone
*  Net Weight : 186g;Package Content : 1 x Braking Resistor






Optimize Heat Dissipation with Aluminum Housed VFD Braking Resistor 0

Optimize Heat Dissipation with Aluminum Housed VFD Braking Resistor 1

Optimize Heat Dissipation with Aluminum Housed VFD Braking Resistor 2



 wire wound ceramic braking resistor

Two terminal extensions are fixed on both ends of a ceramic tube on whose surface winds wave-shaped alloy resistance wire and a high temperature-resistant and fireproof coating are applied.The ceramic tube can function as resistance wire skeleton and heat raditor as well.This product can be customized to special needs of customers and applicable to simulation load test,equipment discharge,automated control and inverter’s energy loss brake.

Product features

1. Power Range:50w-2500w
2. Voltage Range:0.5kv-10kv
3. Resistance Range:1R-1KR
4. Dielectric Strength:AC3KV 50Hz/5s
5. IPProtection:IP00
6. Temperature Coefficient:0Cr25AL5
7. Advantage:High Voltage Application
8. Disadvantage:Less Vibration

Optimize Heat Dissipation with Aluminum Housed VFD Braking Resistor 3



Material Specifications

Element Copper-nickel, nickel-chrome
Core OCr25AL5
Enclosure Aluminum
Standard terminals Copper / Copper bar
Partmarking Partnumber, value, date code, MRC


Technial Specifications

Power Range 60W-10KW
Voltage Range <1.2KV
Resistance Range 1R-10KR
Dielectric Strength AC 3KV 50Hz / 5S
IP Protection IP23 / IP65
Vibration 1.5g
Temperature Coefficient ≤ 400ppm/℃
Production Standards GB8898-2011



Applications

Optimize Heat Dissipation with Aluminum Housed VFD Braking Resistor 4Optimize Heat Dissipation with Aluminum Housed VFD Braking Resistor 5Optimize Heat Dissipation with Aluminum Housed VFD Braking Resistor 6

Product Size

Optimize Heat Dissipation with Aluminum Housed VFD Braking Resistor 7Optimize Heat Dissipation with Aluminum Housed VFD Braking Resistor 8


 VEIKONG High Power Aluminum1000w 800w 500w 400w 80w 50w Braking Resistor ( VEIKONG High Power Aluminum1000w 800w 500w 400w 200w 150w 120w 100w 80w 60w 50w Braking Resistors ) is a kind of aluminum encased resistor that consists of an alloy metal coil-type resistance element assembled into an aluminum enclosure . Following high-temperature anodization , the enclosure is filled with a special non-flammable cement paste and after hardening , insulation isapplied through a high-tem perature process . Since the resistor is em-bedded in the heat-proofcement , is not affected by external me-chanical force , dusty environments , or extreme duty . It is durable and vibration-proof ,dissipates heat well , and has a low temperature coefficient , with resistance varying in direct proportion . Supporting aflexible range of applications , the product is easy to utilize and install . Applications include industrial machinery , load testing , electric power distribution , instruments , and automated control installations.
