Customizable High Reliability VFD Braking Resistor 1000W 1200W 1500W Aluminum
Place of Origin China
Brand Name VEIKONG
Certification CE
Model Number VKS
Minimum Order Quantity 1
Price Negotiable
Packaging Details Carton and Wooden Box
Delivery Time 3 days, depend on the order quantity
Payment Terms Western Union, T/T, L/C, D/A, D/P, PayPal
Supply Ability 15000pcs per Month
Product Details
Product Name 1000W 1200W 1500W Resistor Technology Wirewound
Operating Temperature -55℃~+125℃ Resistance 1R-100K
Mounting Type Plug In Color Silver White
MOQ Negotiate With Sales OEM Service Supported
High Light

1200W Motor Brake Resistor

,

1000W Motor Brake Resistor

,

1500W braking unit for vfd

Product Description

1000W 1200W 1500W high power load resistor Aluminum braking resistor


Product feature

Suitable for harsh environment

Aluminum enclosure with better protection

Safer compared with open type wire wound resistor

Long working life and high reliability

Flexible ofr customize, can offer IP65 class protection

High insulation class, use high flame retardant inorganic material to assemble

Excellent anti-vibration capability



  • Aluminum Braking Resistor can be used in the atrocious environment.
  • Aluminum Housed surface with good performance in heat.
  • Nylon wrapped wire with solder lug terminals.
  • Suitable for cooling plate installation; Widely used in power supply,transducer,elevator and so on.
  • Application: VFD,elevators, electric power system,current limiting load and other electrical equipment.
  • Product Name : Braking Resistor;Resistance Value : 18 Ohm;Rated Power : 100W
  • Overall Size(Approx) : 13 x 4 x 2cm / 5.1" x 1.6" x 0.8"(L*W*T);Cable Size : 42.5 x 0.3cm / 16.7" x 0.118"( L*OD)
  • Installing Holes Size(Approx) : 1 x 0.64cm / 0.394" x 0.252"(L*W);Terminals Size(Approx) : 0.76 x 0.4cm / 0.299" x 0.157"(OD*Inner D)
  • External Material : Aluminum;Color : Silver Tone
  • Net Weight : 186g;Package Content : 1 x Braking Resistor

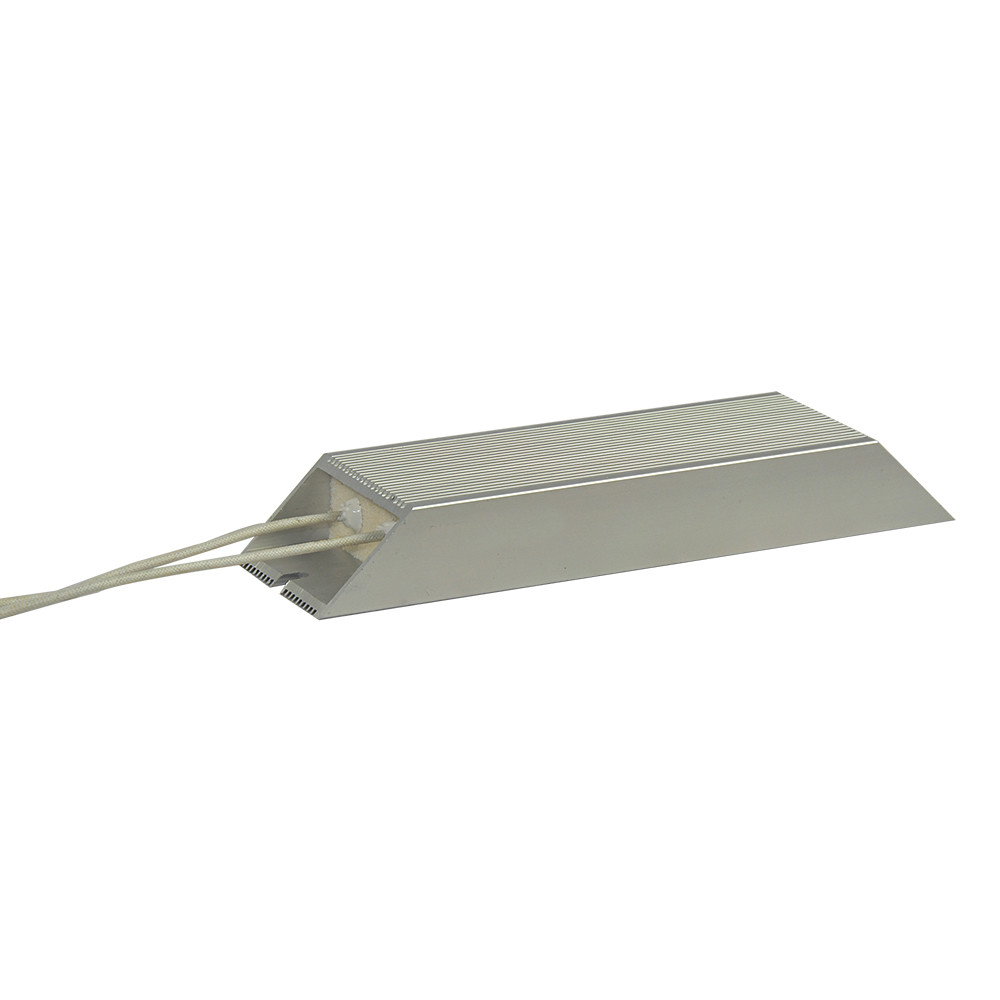

Customizable High Reliability VFD Braking Resistor 1000W 1200W 1500W Aluminum 0

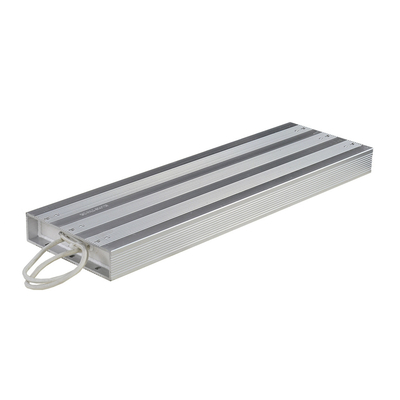

Customizable High Reliability VFD Braking Resistor 1000W 1200W 1500W Aluminum 1



Material Specifications


Element

Copper-nickel, nickel-chrome

Core

OCr25AL5

Enclosure

Aluminum

Standard terminals

Copper / Copper bar

Partmarking

Partnumber, value, date code, MRC


Technial Specifications


Power Range

60W-10KW

Voltage Range

<1.2KV

Resistance Range

1R-10KR

Dielectric Strength

AC 3KV 50Hz / 5S

IP Protection

IP23 / IP65

Vibration

1.5g

Temperature Coefficient

≤ 400ppm/℃

Production Standards

GB8898-2011




Applications

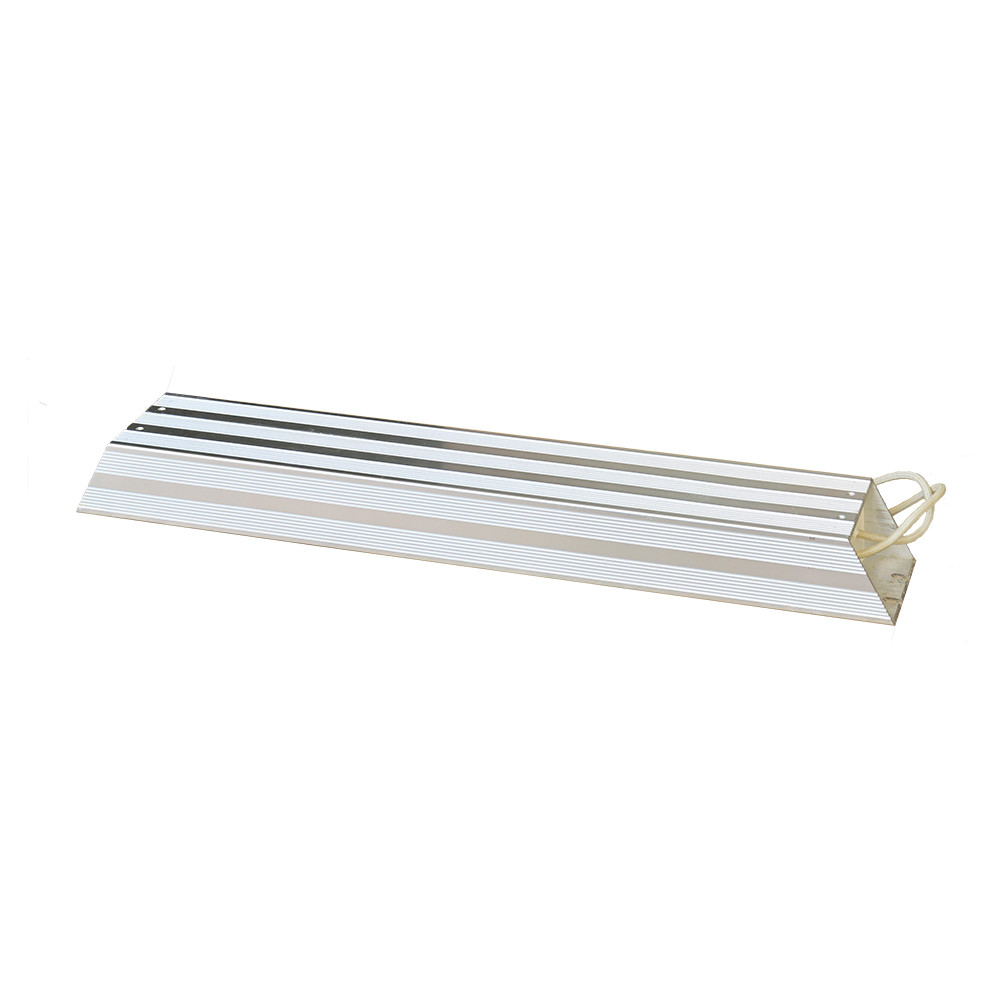

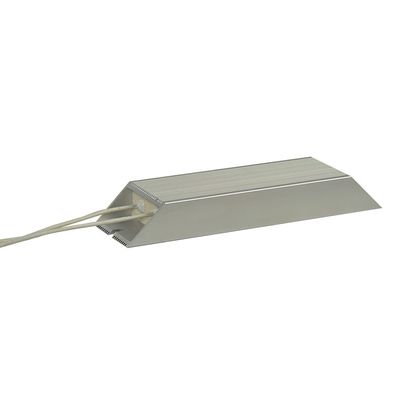

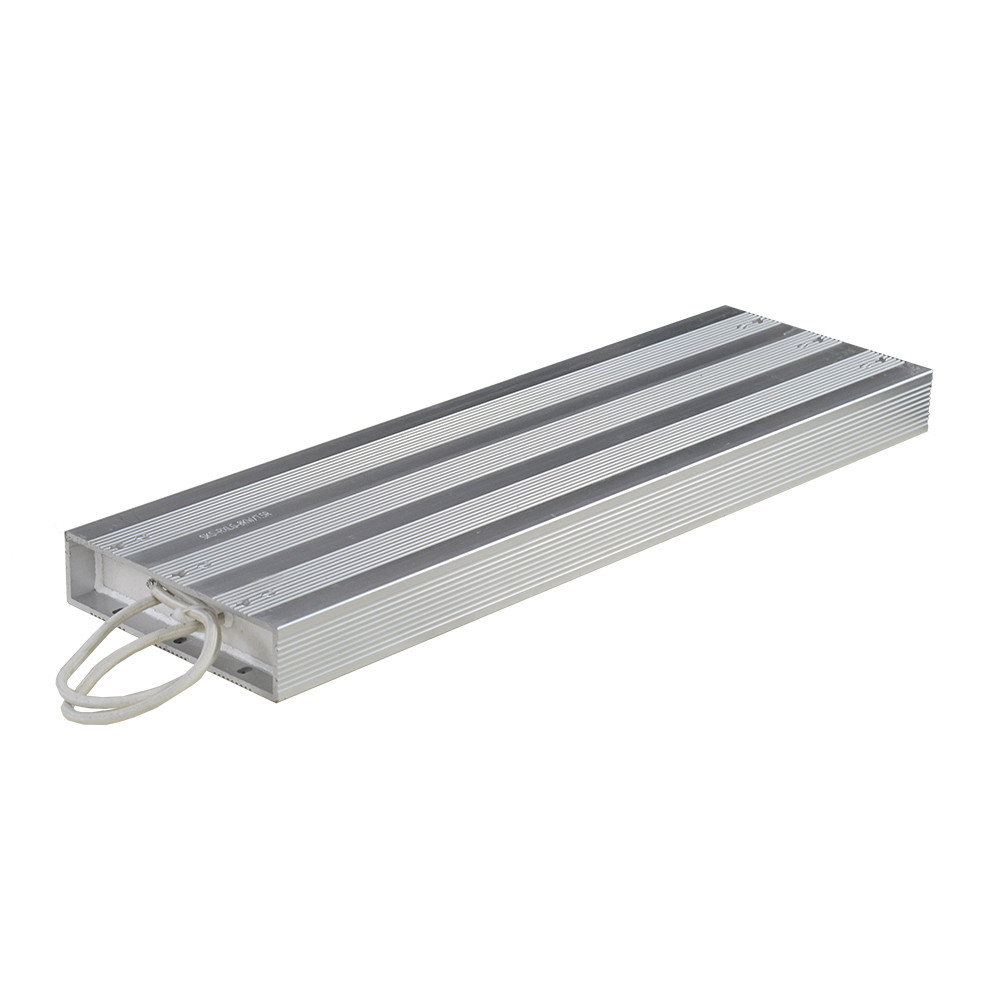

Customizable High Reliability VFD Braking Resistor 1000W 1200W 1500W Aluminum 2Customizable High Reliability VFD Braking Resistor 1000W 1200W 1500W Aluminum 3Customizable High Reliability VFD Braking Resistor 1000W 1200W 1500W Aluminum 4

Product Size

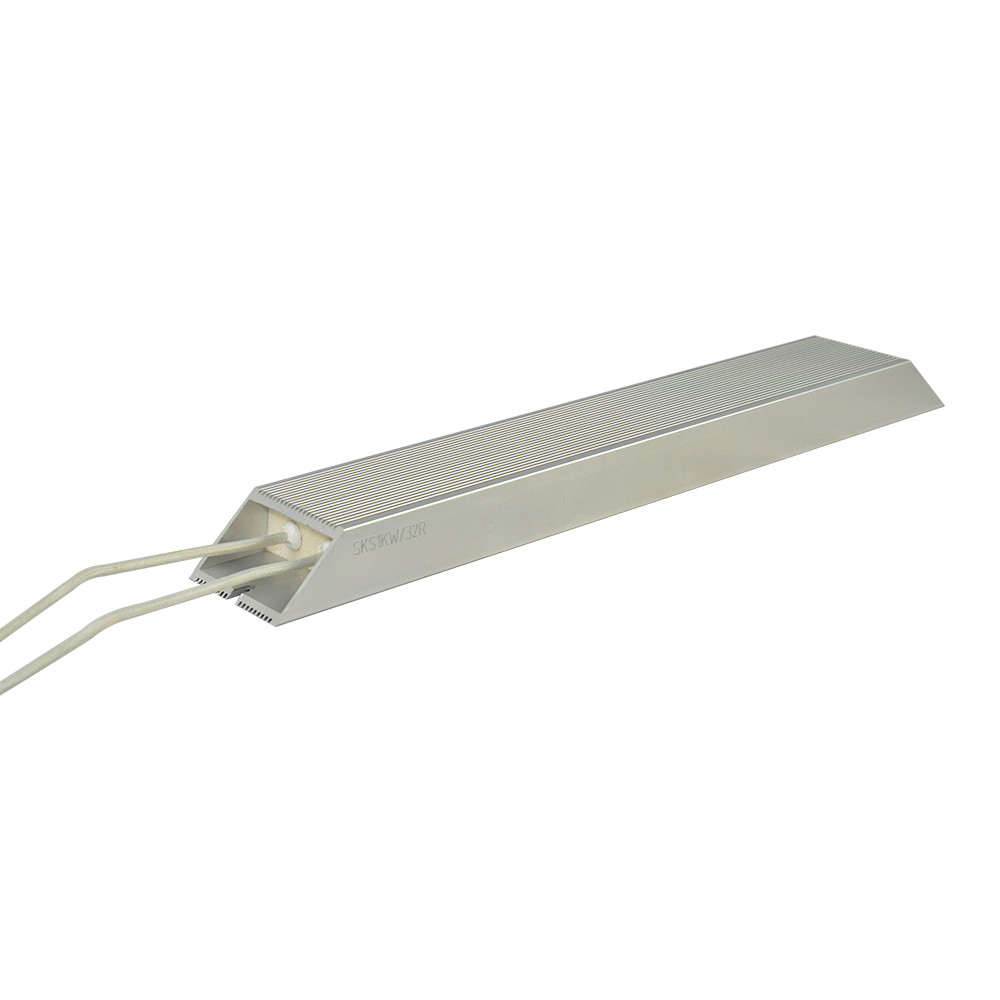

Customizable High Reliability VFD Braking Resistor 1000W 1200W 1500W Aluminum 5Customizable High Reliability VFD Braking Resistor 1000W 1200W 1500W Aluminum 6


VEIKONG High Power Aluminum1000w 800w 500w 400w 80w 50w Braking Resistor ( VEIKONG High Power Aluminum1000w 800w 500w 400w 200w 150w 120w 100w 80w 60w 50w Braking Resistors ) is a kind of aluminum encased resistor that consists of an alloy metal coil-type resistance element assembled into an aluminum enclosure . Following high-temperature anodization , the enclosure is filled with a special non-flammable cement paste and after hardening , insulation isapplied through a high-tem perature process . Since the resistor is em-bedded in the heat-proofcement , is not affected by external me-chanical force , dusty environments , or extreme duty . It is durable and vibration-proof ,dissipates heat well , and has a low temperature coefficient , with resistance varying in direct proportion . Supporting aflexible range of applications , the product is easy to utilize and install . Applications include industrial machinery , load testing , electric power distribution , instruments , and automated control installations.
