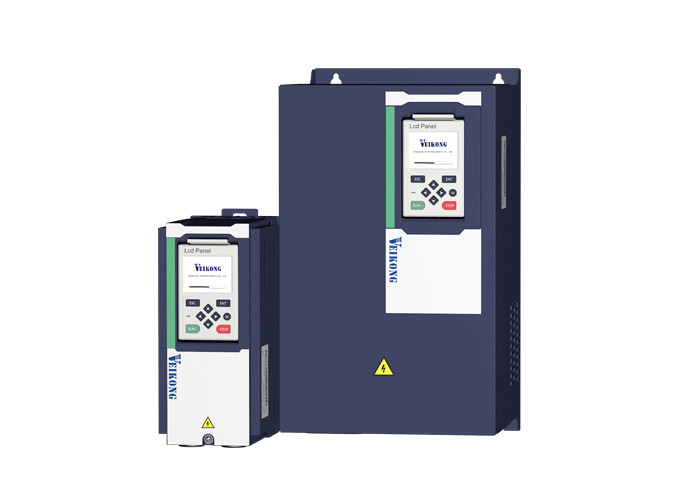

Auto-Tracking Solar Water Pump Controller with Advanced MPPT Technology
Place of Origin China
Brand Name VEIKONG
Certification CE
Model Number VFD500-PV
Minimum Order Quantity 1
Price Negotiable
Packaging Details the power less than 45kw use Carton, starting from 45kw use Wooden case
Delivery Time depend on the order quantity
Payment Terms L/C, T/T, Western Union
Supply Ability 15000pcs per Month
Product Details
Product Name 110kw Solar Pump Controller Power 110Kw/150hp
OEM Accept Voltage 380v
Application Submersible Pump Motor Ac Motor And Permanent Magnet
Dry Run Protection Support MPPT Efficiency 99.999%
Special Function MPPT+PID Warranty 18 Months Or More
MOQ Negotiable
High Light

150HP Solar Pump System Controller

,

110kw Solar Pump System Controller

,

150HP mppt solar pump controller

Product Description

110kw 150HP Pump Controller Solar Pumping Inverter with MPPT function



VEIKONG VFD500-PV  series Solar Pumping Inverters


Power range: 0.75kw-75kw 220VAC
0.75kw-630kw 380VAC



1. Advanced MPPT Technology: Maximum MPPT Efficiency: 99%;
2. Auto-track All Daytime;
3. Auto dormancy/wake-up, Under-voltage restart;
4. Support both AC and DC power input (optional);
5. Water Level Monitoring: dry run protection, overflow protection Record: generated power, pumped water, running time;
6. The whole water pumping systems running not rely on grid power or battery;
7. Protection Functions: support low frequency, dormancy, dry-run, over-current, minimum power and other protection functions;
8. Default Auto-running: auto-running by keypad, auto-running by IoT, auto-running by Terminals;
9. Excellent Control Performance: make sure the system auto-running with unattended, maximum output frequency is 600hz under VF control;
10. Intelligent IoT: support GPRS module, for remote control.






Electrical Specifications and Power degree

  220V 380V
Max input DC voltage 450V 810V
DC voltage range 150~450VDC 300~810VDC
Normal working DC voltage 260V-400V 400V-650V
Recommended input mppt voltage 330V 550V
MPPT efficiency >99%
Rated output voltage 1/3-phase 220VAC 3-phase 380-480VAC




Accessories:

1. GPRS (support 2g/3g/4g internet)

Auto-Tracking Solar Water Pump Controller with Advanced MPPT Technology 0

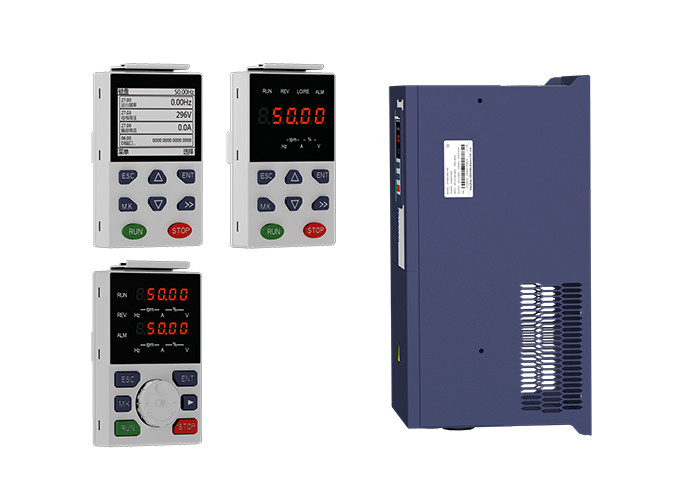

2. LCD keypad


VEIKONG high performance VFD LCD display


3. Output Reactor

Auto-Tracking Solar Water Pump Controller with Advanced MPPT Technology 2

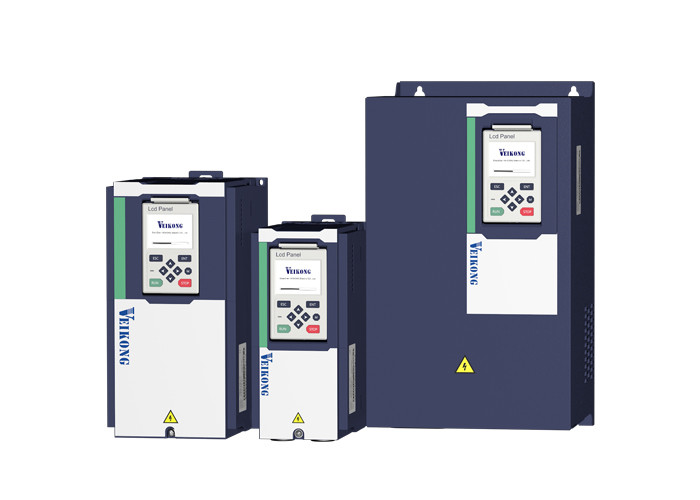

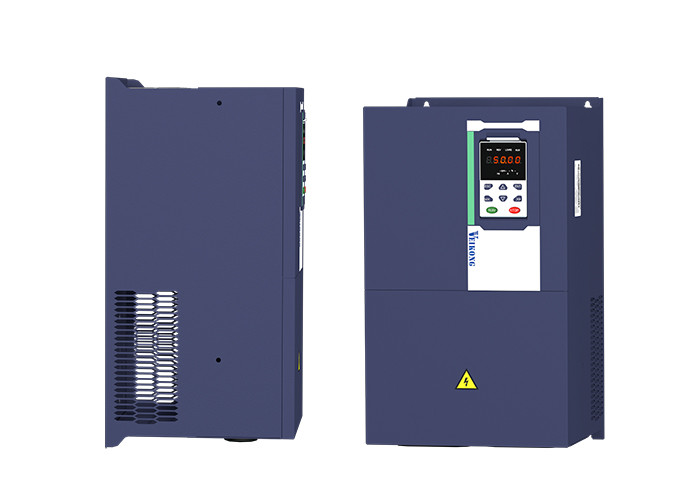

VFD500-PV solar pump inverter picture:
Auto-Tracking Solar Water Pump Controller with Advanced MPPT Technology 3







Mode Range



Drive  model

Max DC input current (A)

Rated  output current (A)

Applicable water pump (kW)

VFD500M-40T00150-PV

6.1

3.7

1.5

VFD500M-40T00220-PV

7.1

5

2.2

VFD500M-40T00400-PV

16.5

9.4

4

VFD500M-40T00550-PV

23.9

13

5.5

VFD500M-40T00750-PV

30.6

17

7.5

VFD500-40T00150-PV

6.1

3.7

1.5

VFD500-40T00220-PV

7.1

5

2.2

VFD500-40T00400-PV

16.5

9.4

4

VFD500-40T00550-PV

23.9

13

5.5

VFD500-40T00750-PV

30.6

17

7.5

VFD50040T01100-PV

39.2

25

11

VFD500-40T01500-PV

49.0

32

15

VFD500-40T01850-PV

57

37

18.5

VFD500-40T02200-PV

69

45

22

VFD500-40T03000-PV

91

 60

30

VFD500-40T03700-PV

114

75

37

VFD500-40T04500-PV

146

90

45

VFD500-40T05500-PV

190

112

55

VFD500-40T07500-PV

237

152

75

VFD500-40T09000-PV

273

176

90

VFD500-40T11000-PV

319

210

110

VFD500-40T13200-PV

389

253

132

220V single phase or three phase level

VFD500-20T00075-PV

6.7

4.5

0.75

VFD500-20T00150-PV

9.9

7

1.5

VFD500-20T00220-PV

14.1

10.6

2.2

VFD500-20T00400-PV

22.6

17

4

VFD500M-20T00150-PV

9.9

7

1.5

VFD500M-20T00220-PV

14.1

10.6

2.2



Connect wire diagram



Auto-Tracking Solar Water Pump Controller with Advanced MPPT Technology 4







For 220V single phase motor connection

1: Single phase asynchronous motor wiring method (without starting capacitor):

Notice: U is connected to the common end of the starting winding and the working winding, V is connected to the starting winding, and W is connected to the working winding;



Single-phase asynchronous motor if the rotary steering is not correct, you can change the V and W wiring or set P22.13=1.



First solution: Set parameter P11.01=1 (Single phase motor type without capacitor) or second solution: set P00.11=31 if your motor frequency is 50 hz or set P00.11=32 if your motor frequency is 60HZ

Auto-Tracking Solar Water Pump Controller with Advanced MPPT Technology 5







For 220V single phase motor connection

2: Single-phase asynchronous motor wiring method (with capacitor)



Notice1: First solution: Connect motor cable to power terminal U and V and enter BSC mode to Set parameter P23.15=0(output phase loss shielding protection) or second solution: set macro P00.11=21 if your motor frequency is 50HZ or set P00.11=22 if your motor frequency is 60HZ



 Auto-Tracking Solar Water Pump Controller with Advanced MPPT Technology 6
