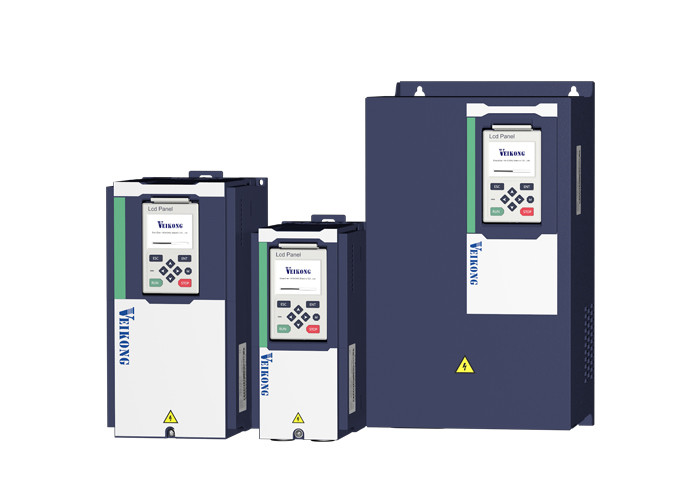

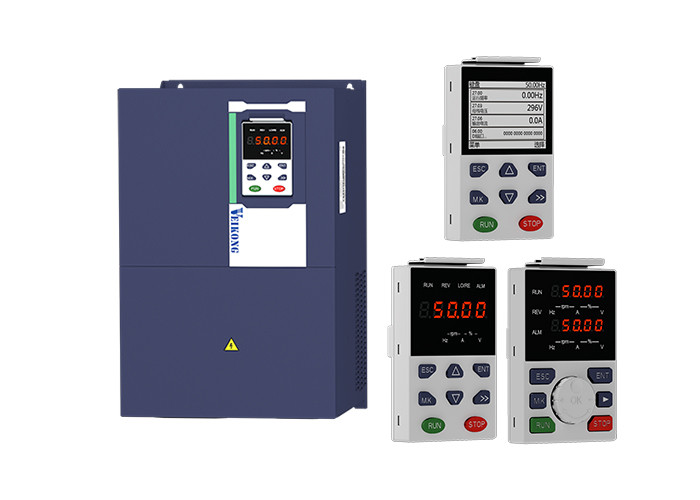

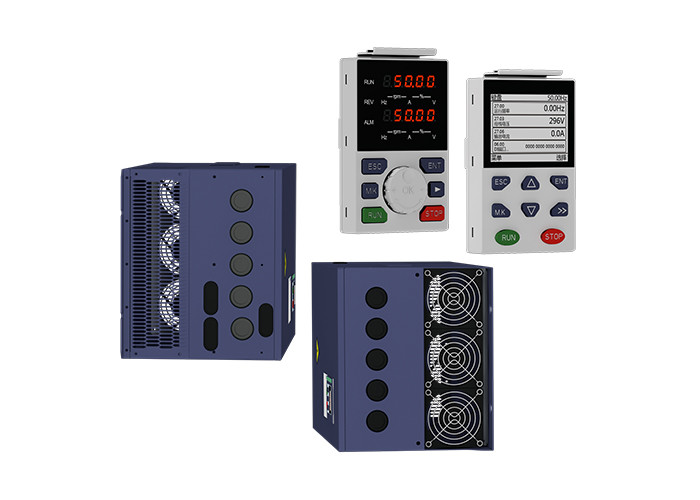

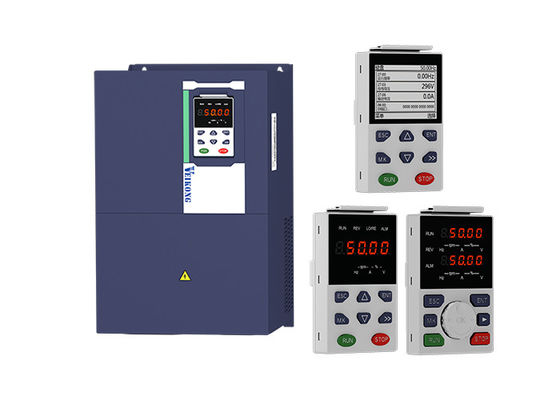

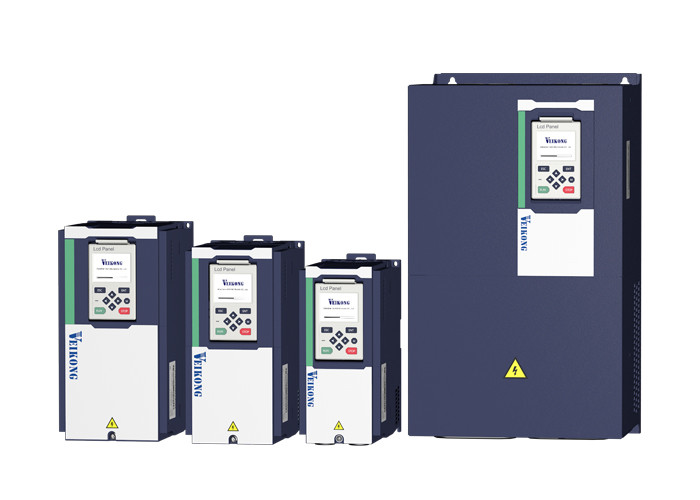

VEIKONG VFD500-PV The Solar Water Pump Controller for Maximum Energy Utilization
Place of Origin China
Brand Name VEIKONG
Certification CE
Model Number VFD500-PV
Minimum Order Quantity 1
Price Negotiable
Packaging Details Carton and Wooden Box
Delivery Time 3 days, depend on the order quantity
Payment Terms Western Union, T/T, L/C, D/A, D/P, PayPal
Supply Ability 15000pcs per Month
Product Details
Product Name 380V 22kw 30hp MPPT Solar Water Pump Controller Power 22kw/30hp
GPRS Support Warranty 18 Months
MPPT 99.6% Application Solar Pumping System
Brand VEIKONG Original China
Special Function MPPT+PID Quality Standard High Performance
High Light

30hp Solar Well Pump Controller

,

22kw Solar Well Pump Controller

,

30hp solar borehole pump controller

Product Description

380V 22kw 30hp MPPT Solar Water Pump Controller Solar Pumping Inverter



The VFD500-PV is a solar pump inverter converting the DC power output from the solar panel to AC power supply for pump operation.



The VFD500-PV is designed for continuous as well as intermittent operation. The system is suitable for various water supply systems including irrigation. VEIKONG VFD500-PV automatically adjusts the pump flow to the availability of energy, increases the service life of the installation and facilitates its maintenance and detects system malfunctions.



The complete system consists of three components: PV cell, VEIKONG solar pump inverter, pump.



The built-in maximum power point tracking functionality enables the pump to run at maximum power using available solar power. It is independent from the grid and produces no pollution or noise. For large systems, a combiner box (junction box) with all cables from the solar modules could be connected into one set of power input cables before connecting them to a VFD500-PV solar pump inverter.



Electrical Specifications



  220V 380V
Max input DC voltage 450V 810V
DC voltage range 150~450VDC 300~810VDC
Normal working DC voltage 260V-400V 400V-650V
Recommended input mppt voltage 330V 550V
MPPT efficiency >99%
Rated output voltage 1/3-phase 220VAC 3-phase 380-480VAC
Output frequency range 50/60Hz
Max efficiency of the machine 99%
Ambient temperature range -10 °C~50 °C, derating if the temperature is above 40 °C
Cooling method Air cooling
Protection degree IP20/IP21
Altitude Below 1000m; above 1% for every additional 100m.
Standard CE/ROHS



Model Range



Drive model

Max DC input current (A)

Rated output current (A)

Applicable water pump (kW)

VFD500M-40T00150-PV

6.1

3.7

1.5

VFD500M-40T00220-PV

7.1

5

2.2

VFD500M-40T00400-PV

16.5

9.4

4

VFD500M-40T00550-PV

23.9

13

5.5

VFD500M-40T00750-PV

30.6

17

7.5

VFD500-40T00150-PV

6.1

3.7

1.5

VFD500-40T00220-PV

7.1

5

2.2

VFD500-40T00400-PV

16.5

9.4

4

VFD500-40T00550-PV

23.9

13

5.5

VFD500-40T00750-PV

30.6

17

7.5

VFD50040T01100-PV

39.2

25

11

VFD500-40T01500-PV

49.0

32

15

VFD500-40T01850-PV

57

37

18.5

VFD500-40T02200-PV

69

45

22

VFD500-40T03000-PV

91

60

30

VFD500-40T03700-PV

114

75

37

VFD500-40T04500-PV

146

90

45

VFD500-40T05500-PV

190

112

55

VFD500-40T07500-PV

237

152

75

VFD500-40T09000-PV

273

176

90

VFD500-40T11000-PV

319

210

110

VFD500-40T13200-PV

389

253

132

220V single phase or three phase level

VFD500-20T00075-PV

6.7

4.5

0.75

VFD500-20T00150-PV

9.9

7

1.5

VFD500-20T00220-PV

14.1

10.6

2.2

VFD500-20T00400-PV

22.6

17

4

VFD500M-20T00150-PV

9.9

7

1.5

VFD500M-20T00220-PV

14.1

10.6

2.2



Solar Water Pump Wiring Diagram



VEIKONG VFD500-PV The Solar Water Pump Controller for Maximum Energy Utilization 0



Product Application



VEIKONG VFD500-PV The Solar Water Pump Controller for Maximum Energy Utilization 1



VEIKONG VFD500-PV The Solar Water Pump Controller for Maximum Energy Utilization 2



VEIKONG VFD500-PV The Solar Water Pump Controller for Maximum Energy Utilization 3



FAQ:



1. What should be noticed when installing inverter?


Put the product in a place where is well ventilate, cool, dry and water-proof. Do not stress or put foreign objects into the inverter. Remember to turn on the inverter before turn on the appliance.



2. Do we need to set the parameter before using ?


No need, our preset parameters can already meet your normal use.
And our inverter is AI intelligent working.
If you need to adjust the parameters yourself, you can do it in a few simple steps.



3. What is your main market?


Our brands are well known in Europe, Africa, Middle East, Southeast Asia and South America.
