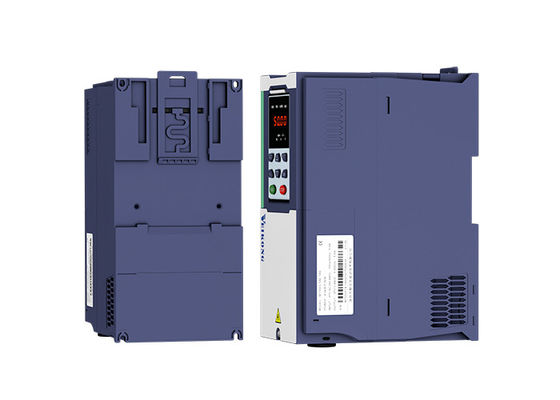

Energy saving 3Phase 15hp 11kw Vfd Solar Pump Controller With Mppt
Place of Origin China
Brand Name VEIKONG
Certification CE
Model Number VFD500-PV
Minimum Order Quantity 1
Price Negotiable
Packaging Details Carton and Wooden Box
Delivery Time 3 days, depend on the order quantity
Payment Terms Western Union, T/T, L/C, D/A, D/P, PayPal
Supply Ability 15000pcs per Month
Product Details
Product Name 380V 11kw 15hp MPPT Solar Water Pump Controller Power 11kw/15hp
Output Type 3 Phase Input Method AC And DC
Color Blue Warranty 18 Months
High Light

3Phase Vfd Solar Pump Controller

,

15hp Vfd Solar Pump Controller

,

3Phase 11kw Vfd

Product Description

380V 11kw 15hp MPPT Solar Water Pump Controller Solar Pumping Inverter



Product Features:



1, Auto MPPT more than 99%.


2, No need set any parameterit is very good control for voltage, and Automatic start and stop.


3, Can automatically stop the pump when the tank is full


4, Also can automatically stop pump when there have no water inside the well


5, Different from many competitors, our inverter support minimum power protection and maximum current protection to ADAPT to different pump requirements.



For example, frequent start and stop at low voltage is not good for pump so you can let inverter sleep to make pump stop or work only in the minimum frequency



Electrical Specifications



  220V 380V
Max input DC voltage 450V 810V
DC voltage range 150~450VDC 300~810VDC
Normal working DC voltage 260V-400V 400V-650V
Recommended input mppt voltage 330V 550V
MPPT efficiency >99%
Rated output voltage 1/3-phase 220VAC 3-phase 380-480VAC
Output frequency range 50/60Hz
Max efficiency of the machine 99%
Ambient temperature range -10 °C~50 °C, derating if the temperature is above 40 °C
Cooling method Air cooling
Protection degree IP20/IP21
Altitude Below 1000m; above 1% for every additional 100m.
Standard CE/ROHS



Model Range



Drive model

Max DC input current (A)

Rated output current (A)

Applicable water pump (kW)

VFD500M-40T00150-PV

6.1

3.7

1.5

VFD500M-40T00220-PV

7.1

5

2.2

VFD500M-40T00400-PV

16.5

9.4

4

VFD500M-40T00550-PV

23.9

13

5.5

VFD500M-40T00750-PV

30.6

17

7.5

VFD500-40T00150-PV

6.1

3.7

1.5

VFD500-40T00220-PV

7.1

5

2.2

VFD500-40T00400-PV

16.5

9.4

4

VFD500-40T00550-PV

23.9

13

5.5

VFD500-40T00750-PV

30.6

17

7.5

VFD50040T01100-PV

39.2

25

11

VFD500-40T01500-PV

49.0

32

15

VFD500-40T01850-PV

57

37

18.5

VFD500-40T02200-PV

69

45

22

VFD500-40T03000-PV

91

60

30

VFD500-40T03700-PV

114

75

37

VFD500-40T04500-PV

146

90

45

VFD500-40T05500-PV

190

112

55

VFD500-40T07500-PV

237

152

75

VFD500-40T09000-PV

273

176

90

VFD500-40T11000-PV

319

210

110

VFD500-40T13200-PV

389

253

132

220V single phase or three phase level

VFD500-20T00075-PV

6.7

4.5

0.75

VFD500-20T00150-PV

9.9

7

1.5

VFD500-20T00220-PV

14.1

10.6

2.2

VFD500-20T00400-PV

22.6

17

4

VFD500M-20T00150-PV

9.9

7

1.5

VFD500M-20T00220-PV

14.1

10.6

2.2



Solar Water Pump Wiring Diagram



Energy saving  3Phase 15hp 11kw Vfd Solar Pump Controller With Mppt 0



Product Application



Energy saving  3Phase 15hp 11kw Vfd Solar Pump Controller With Mppt 1



Energy saving  3Phase 15hp 11kw Vfd Solar Pump Controller With Mppt 2



Energy saving  3Phase 15hp 11kw Vfd Solar Pump Controller With Mppt 3



FAQ:



1. What should be noticed when installing inverter?


Put the product in a place where is well ventilate, cool, dry and water-proof. Do not stress or put foreign objects into the inverter. Remember to turn on the inverter before turn on the appliance.



2. Do we need to set the parameter before using ?


No need, our preset parameters can already meet your normal use.
And our inverter is AI intelligent working.
If you need to adjust the parameters yourself, you can do it in a few simple steps.



3. What is your main market?


Our brands are well known in Europe, Africa, Middle East, Southeast Asia and South America.
