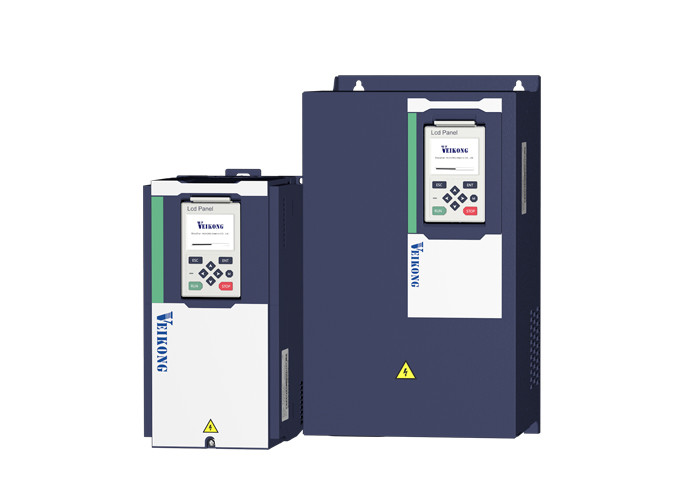

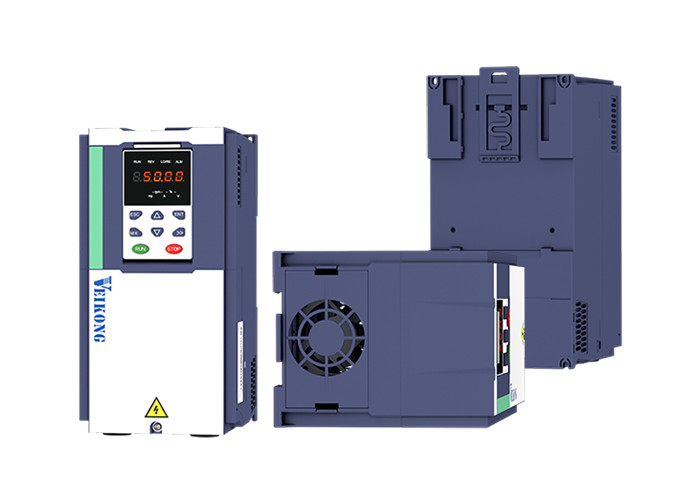

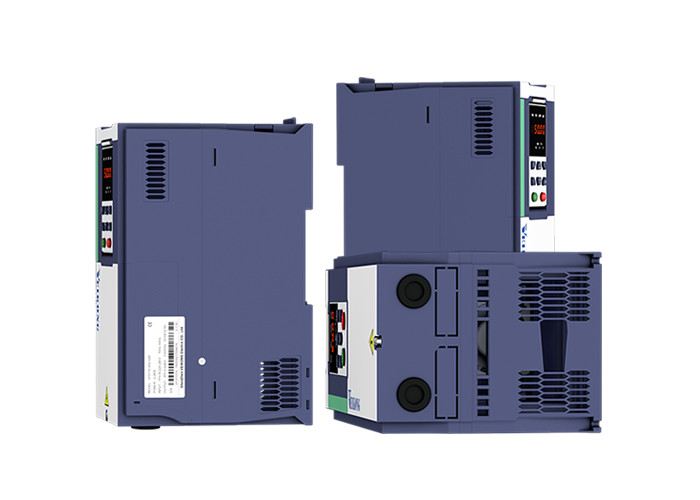

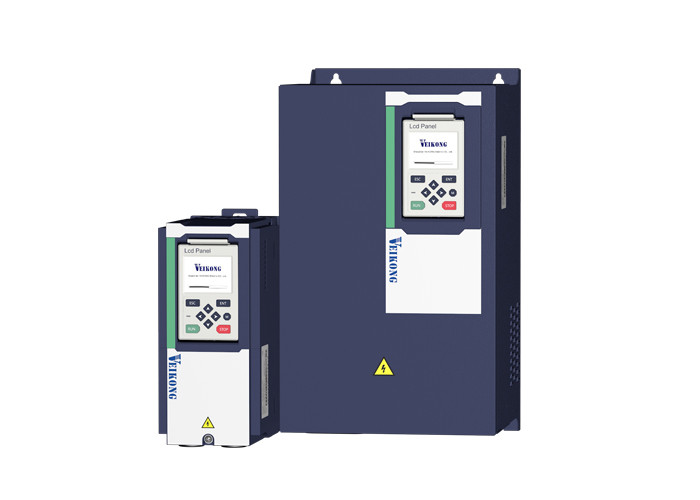

Automatic Switching Solar Water Pump Controller 380V 7.5kw 10hp MPPT Inverter
Place of Origin China
Brand Name VEIKONG
Certification CE
Model Number VFD500-PV
Minimum Order Quantity 1
Price 90
Packaging Details Carton and Wooden Box
Delivery Time 3 days, depend on the order quantity
Payment Terms Western Union, T/T, L/C, D/A, D/P, PayPal
Supply Ability 15000pcs per Month
Product Details
Product Name 380V 7.5kw 10hp MPPT Solar Water Pump Controller Power 7.5kw
Output Type 3 Phase Input Method Support AC And DC Input
Inverter Type AC Inverter Color Dark Blue And White
Automatic Start And Stop Support MPPT Efficiency 99.999%
Dry Run Protection Yes Full/Low Water Protection Support
High Light

10hp Solar Water Pump Controller

,

7.5kw Solar Water Pump Controller

,

10hp Solar Pumping Inverter

Product Description

380V 7.5kw 10hp MPPT Solar Water Pump Controller Solar Pumping Inverter



Product Features:



● Advanced MPPT algorithm


Ensure solar power tracking efficiency can reach 99%



● GPRS remote monitoring


Supports optional GPRS module, which can realize remote monitoring function of computer web-page and mobile APP



● AC/DC switching scheme


All series of products can realize automatic switching of PV DC input and grid AC input, which can meet 24 hours of no care work



● IP54 solution


Supports IP54 grade cabinet solutions



Electrical Specifications



  220V 380V
Max input DC voltage 450V 810V
DC voltage range 150~450VDC 300~810VDC
Normal working DC voltage 260V-400V 400V-650V
Recommended input mppt voltage 330V 550V
MPPT efficiency >99%
Rated output voltage 1/3-phase 220VAC 3-phase 380-480VAC
Output frequency range 50/60Hz
Max efficiency of the machine 99%
Ambient temperature range -10 °C~50 °C, derating if the temperature is above 40 °C
Cooling method Air cooling
Protection degree IP20/IP21
Altitude Below 1000m; above 1% for every additional 100m.
Standard CE/ROHS



Model Range



Drive model

Max DC input current (A)

Rated output current (A)

Applicable water pump (kW)

VFD500M-40T00150-PV

6.1

3.7

1.5

VFD500M-40T00220-PV

7.1

5

2.2

VFD500M-40T00400-PV

16.5

9.4

4

VFD500M-40T00550-PV

23.9

13

5.5

VFD500M-40T00750-PV

30.6

17

7.5

VFD500-40T00150-PV

6.1

3.7

1.5

VFD500-40T00220-PV

7.1

5

2.2

VFD500-40T00400-PV

16.5

9.4

4

VFD500-40T00550-PV

23.9

13

5.5

VFD500-40T00750-PV

30.6

17

7.5

VFD50040T01100-PV

39.2

25

11

VFD500-40T01500-PV

49.0

32

15

VFD500-40T01850-PV

57

37

18.5

VFD500-40T02200-PV

69

45

22

VFD500-40T03000-PV

91

60

30

VFD500-40T03700-PV

114

75

37

VFD500-40T04500-PV

146

90

45

VFD500-40T05500-PV

190

112

55

VFD500-40T07500-PV

237

152

75

VFD500-40T09000-PV

273

176

90

VFD500-40T11000-PV

319

210

110

VFD500-40T13200-PV

389

253

132

220V single phase or three phase level

VFD500-20T00075-PV

6.7

4.5

0.75

VFD500-20T00150-PV

9.9

7

1.5

VFD500-20T00220-PV

14.1

10.6

2.2

VFD500-20T00400-PV

22.6

17

4

VFD500M-20T00150-PV

9.9

7

1.5

VFD500M-20T00220-PV

14.1

10.6

2.2



Solar Water Pump Wiring Diagram



Automatic Switching Solar Water Pump Controller 380V 7.5kw 10hp MPPT Inverter 0



Product Application



Automatic Switching Solar Water Pump Controller 380V 7.5kw 10hp MPPT Inverter 1



Automatic Switching Solar Water Pump Controller 380V 7.5kw 10hp MPPT Inverter 2



Automatic Switching Solar Water Pump Controller 380V 7.5kw 10hp MPPT Inverter 3



FAQ:



1. What should be noticed when installing inverter?


Put the product in a place where is well ventilate, cool, dry and water-proof. Do not stress or put foreign objects into the inverter. Remember to turn on the inverter before turn on the appliance.



2. Do we need to set the parameter before using ?


No need, our preset parameters can already meet your normal use.
And our inverter is AI intelligent working.
If you need to adjust the parameters yourself, you can do it in a few simple steps.



3. What is your main market?


Our brands are well known in Europe, Africa, Middle East, Southeast Asia and South America.
