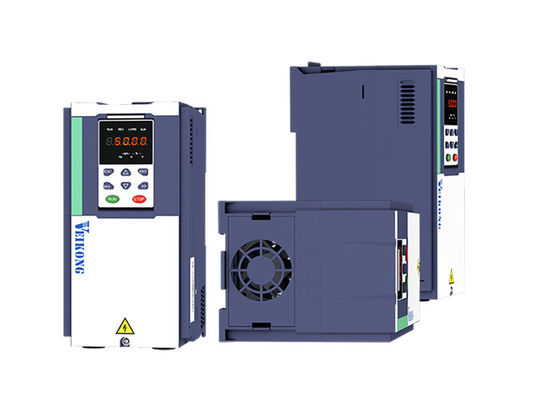

VEIKONG MPPT 2.2kw 3hp Solar Pump Controller for all pump types
Product Details
| Product Name | 380V 2.2kw 3hp MPPT Solar Water Pump Controller | Power | 2.2kw |
|---|---|---|---|
| Type | Triple | Keyboard | LED/LCD |
| Warranty | 18 Months | Input Type | Support AC And DC Input |
| High Light | MPPT 3hp Solar Pump Controller,2.2kw MPPT Solar Pump Controller,VEIKONG 3hp Solar Pump Controller |
||
Product Description
380V 2.2kw 3hp MPPT Solar Water Pump Controller Solar Pumping Inverter
Product Features:
1. Operates without grid directly from photovoltaic (PV) cells
2. Automatic start and stop with solar radiation
3. Built-in maximum power point tracking (MPPT)
4. Easy installation and set-up for serial production
5. Compatible with all pump types
6. Good ROI (Return on Investment) against diesel powered pumping
Electrical Specifications
| 220V | 380V | |
| Max input DC voltage | 450V | 810V |
| DC voltage range | 150~450VDC | 300~810VDC |
| Normal working DC voltage | 260V-400V | 400V-650V |
| Recommended input mppt voltage | 330V | 550V |
| MPPT efficiency | >99% | |
| Rated output voltage | 1/3-phase 220VAC | 3-phase 380-480VAC |
| Output frequency range | 50/60Hz | |
| Max efficiency of the machine | 99% | |
| Ambient temperature range | -10 °C~50 °C, derating if the temperature is above 40 °C | |
| Cooling method | Air cooling | |
| Protection degree | IP20/IP21 | |
| Altitude | Below 1000m; above 1% for every additional 100m. | |
| Standard | CE/ROHS | |
Model Range
|
Drive model |
Max DC input current (A) |
Rated output current (A) |
Applicable water pump (kW) |
|
VFD500M-40T00150-PV |
6.1 |
3.7 |
1.5 |
|
VFD500M-40T00220-PV |
7.1 |
5 |
2.2 |
|
VFD500M-40T00400-PV |
16.5 |
9.4 |
4 |
|
VFD500M-40T00550-PV |
23.9 |
13 |
5.5 |
|
VFD500M-40T00750-PV |
30.6 |
17 |
7.5 |
|
VFD500-40T00150-PV |
6.1 |
3.7 |
1.5 |
|
VFD500-40T00220-PV |
7.1 |
5 |
2.2 |
|
VFD500-40T00400-PV |
16.5 |
9.4 |
4 |
|
VFD500-40T00550-PV |
23.9 |
13 |
5.5 |
|
VFD500-40T00750-PV |
30.6 |
17 |
7.5 |
|
VFD50040T01100-PV |
39.2 |
25 |
11 |
|
VFD500-40T01500-PV |
49.0 |
32 |
15 |
|
VFD500-40T01850-PV |
57 |
37 |
18.5 |
|
VFD500-40T02200-PV |
69 |
45 |
22 |
|
VFD500-40T03000-PV |
91 |
60 |
30 |
|
VFD500-40T03700-PV |
114 |
75 |
37 |
|
VFD500-40T04500-PV |
146 |
90 |
45 |
|
VFD500-40T05500-PV |
190 |
112 |
55 |
|
VFD500-40T07500-PV |
237 |
152 |
75 |
|
VFD500-40T09000-PV |
273 |
176 |
90 |
|
VFD500-40T11000-PV |
319 |
210 |
110 |
|
VFD500-40T13200-PV |
389 |
253 |
132 |
|
220V single phase or three phase level |
|||
|
VFD500-20T00075-PV |
6.7 |
4.5 |
0.75 |
|
VFD500-20T00150-PV |
9.9 |
7 |
1.5 |
|
VFD500-20T00220-PV |
14.1 |
10.6 |
2.2 |
|
VFD500-20T00400-PV |
22.6 |
17 |
4 |
|
VFD500M-20T00150-PV |
9.9 |
7 |
1.5 |
|
VFD500M-20T00220-PV |
14.1 |
10.6 |
2.2 |
Solar Water Pump Wiring Diagram
Product Application
FAQ:
1. What should be noticed when installing inverter?
Put the product in a place where is well ventilate, cool, dry and water-proof. Do not stress or put foreign objects into the inverter. Remember to turn on the inverter before turn on the appliance.
2. Do we need to set the parameter before using ?
No need, our preset parameters can already meet your normal use.
And our inverter is AI intelligent working.
If you need to adjust the parameters yourself, you can do it in a few simple steps.
3. What is your main market?
Our brands are well known in Europe, Africa, Middle East, Southeast Asia and South America.
