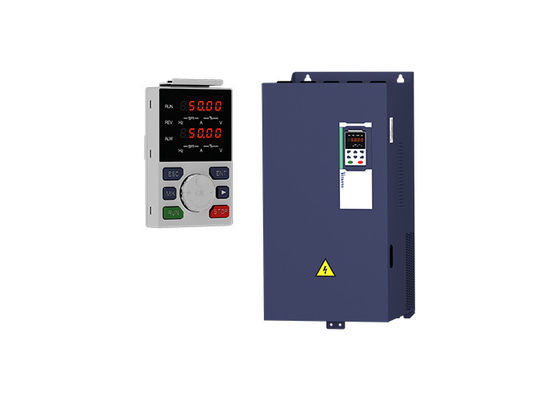

18.5kw 25hp AC drive vfd variable speed drive single phase three phase
| Place of Origin | China |
|---|---|
| Brand Name | VEIKONG |
| Certification | CE |
| Model Number | VFD500 |
| Minimum Order Quantity | 1 |
| Price | Negotiable |
| Packaging Details | the power less than 45kw use Carton, starting from 45kw use Wooden case |
| Delivery Time | 3 days, depend on the order quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 15000pcs per Month |
Product Details
| Product Name | 18.5kw General Vfd | Power | 18.5kw/25hp |
|---|---|---|---|
| Display | LED,LCD | Input Voltage | 380V,220V |
| Output Frequency | 0-2000hz | Type | AC-DC-AC |
Product Description
18.5kw 25hp AC drive vfd variable speed drive single phase three phase
Features
It adopts DSP as the core control unit to realize high - speed high - performance control.
◆ Speed control: no PG vector control, PG vector control, V/F control.
◆ The low frequency 0.25Hz and 180% torque output are realized under the non - inductive vector.
◆ The simple PLC function can achieve up to 16 speed control.
◆ The multi-lingual humanized display menu, highlight OLED and display 3 sets of state parameters.
◆ The "one key flying shuttle" keyboard can fly freely.
◆ Optimized air duct design and advanced thermal management technology.
◆ The design of reliable insulation structure ensures the safety of the inverter.
◆ The fully isolated RS485 communication module can be selected to communicate with the upper computer.
◆ We will strengthen the coating and adapt to all kinds of harsh environment.
◆ Relying on EMC design standard and unique software algorithm, the inverter can minimize the pollution of power supply.
VFD500 parameter distribution list
| Classification | Parameter group | Page |
| Common parameters | 00:Basic function | Page 30 |
| 01:Frequency source selection | Page 32 | |
| 02:Start and stop | Page 37 | |
| 03:Ramp and S curve | Page 39 | |
| 04: Analog and pulse input | Page 41 | |
| 05:Analog and pulse output | Page 45 | |
| 06: Multi-function Digital input (DI) | Page 46 | |
| 07: Multi-function Digital output(DO) | Page 49 | |
| 08:Digital Output setting | Page 51 | |
| Motor control | 10:Encoder type | Page 53 |
| 11:Motor1 parmeter | Page 54 | |
| 12:Motor1 VFcontrol parameter | Page 56 | |
| 13:Motor1 Vector controlparameter | Page 58 | |
| 14:Torque control | Page 59 | |
| 16:Energy saving control | Page 61 | |
| Display and protection | 20:User-defined parameters | Page 62 |
| 21:Keypad and display | Page 63 | |
| 22:AC Drive configuration | Page 65 | |
| 23:Drive protection function setting | Page 67 | |
| 24:Motor protection parameter | Page 70 | |
| 25:Fault tracking parameter | Page 72 | |
| 26:Fault recording parameter | Page 72 | |
| 27:Monitoring parameter | Page 74 | |
| Communication | 30:Modbus communication | Page 75 |
| Application | 40:Process PID Function | Page 77 |
| 41:Sleep function | Page 81 | |
| 42:Simple PLC | Page 82 | |
| 43:Programmable delay unit | Page 84 | |
| 44:Comparator and logic unit/controller | Page 86 | |
| 45:Multifunction counter | Page 90 | |
| Motor 2 | 60:Motor2 basic parameter | Page 91 |
| 61:Motor2 parameter | Page 91 | |
| 62:Motor2 VF control parameter | Page 92 | |
| 63:Motor2 vector control parameter | Page 92 |
Techincal Parameters:
| Item | Specifiation | |
| Input | Inuput Voltage |
1phase/3phase 220V:200V～240V 3 phase 380V-480V:380V～480V |
| Allowed Voltage fluctuation range | -15%～10% | |
| Input frequency | 50Hz / 60Hz,fluctuation less than 5% | |
| Output | Output Voltage | 3phase:0～input voltage |
| Overload capacity |
General purpose application:60S for 150% of the rated current Light load application:60S for 120% of the rated current |
|
| Control | Control mode |
V/f control Sensorless flux vector control without PG card(SVC) Sensor speed flux vector control with PG card (VC) |
| Operating mode | Speed control,Torque control(SVC and VC) | |
| Speed range |
1:100 (V/f) 1:200( SVC) 1:1000 (VC) |
|
| Speed control accuracy |
±0.5% (V/f) ±0.2% (SVC) ±0.02% (VC) |
|
| Speed response |
5Hz(V/f) 20Hz(SVC) 50Hz(VC) |
|
| frequency range |
0.00～600.00Hz(V/f) 0.00～200.00Hz(SVC) 0.00～400.00Hz(VC) |
|
VEIKONG VFD APPLICATION:
