External GPRS device optional for remote monitoring and control for MPPT VFD Solar Pump Inverter
Place of Origin China
Brand Name VEIKONG
Certification CE
Model Number VFD500-PV
Minimum Order Quantity 1
Price Negotiable
Packaging Details the power less than 45kw use Carton, starting from 45kw use Wooden case
Delivery Time depend on the order quantity
Payment Terms L/C, T/T, Western Union
Supply Ability 15000pcs per Month
Product Details
Product Name MPPT Solar Pump Inverter Voltage 220v/380v
Type DC/AC Inverters Output Frequency 50Hz/60Hz
Efficiency Higher Than 99% Display LED+LCD
Color Blue And White Brand VEIKONG
MPPT Efficiency 99.9999% Special Function MPPT And PID
High Light

DC AC Solar Inverter 1.5kw

,

11kw VFD Solar Pump Controller

,

99% Efficiency DC AC Solar Inverter

Product Description

DC AC MPPT Solar Pump Inverter 1.5kw 2.2kw 4kw 5.5kw 7.5kw 11kw VFD





Software Desgin

1. Dual Supply Mode - Solar DC and Grid AC Compatible

2. Compatible with All Pumps, IM and PMSM
3. Dry Run Function
4. Automatic Start and Stop
5. Pumps Max Current Protection Setting
6. Water Tank Level Detect Function


Hardware Design

1. Innovation Design with Dual CPU

2. Good Ventilation with Low Temperature
3. Full Fault Protection Design to Ensure no IGBT Damaged
4. Infineon IGBT Module
5. Long Term Service Life Design
6. GPRS Remote Control is Optional




Performance features:(220v 0.75kw-75kw, 380v 0.75kw-160kw)


* Built-in high precision PV array maximum power point tracking MPPT algorithms.



* Dry running mode monitoring, treatment



* Tank water level control



* Accept DC/AC input, can automatically switching DC to AC according to the input voltage.



* LED displays the real time situation and the parameter of system



* Based on RS485 real time remote control system


* External GPRS device optional for remote monitoring and parameter setting, can be remote controlled through computer or mobile phone

* Built-in full protection and diagnostic mechanism

* External automatic switching version, the switching voltage can be set by software




Electrical Specifications



  220V 380V
Max input DC voltage 450V 810V
DC voltage range 150~450VDC 300~810VDC
Normal working DC voltage 260V-400V 400V-650V
Recommended input mppt voltage 330V 550V
MPPT efficiency >99%
Rated output voltage 1/3-phase 220VAC 3-phase 380-480VAC
Output frequency range 50/60Hz
Max efficiency of the machine 99%
Ambient temperature range -10 °C~50 °C, derating if the temperature is above 40 °C
Cooling method Air cooling
Protection degree IP20/IP21
Altitude Below 1000m; above 1% for every additional 100m.
Standard CE/ROHS







Accessories:



1. GPRS (support 2g/3g/4g internet)



2. Output reactor



3. LCD keypad

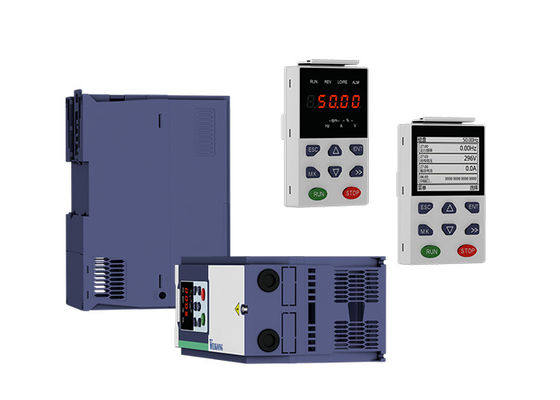

External GPRS device optional for remote monitoring and control for MPPT VFD Solar Pump Inverter 0




VEIKONG study famous brands inverter advantages

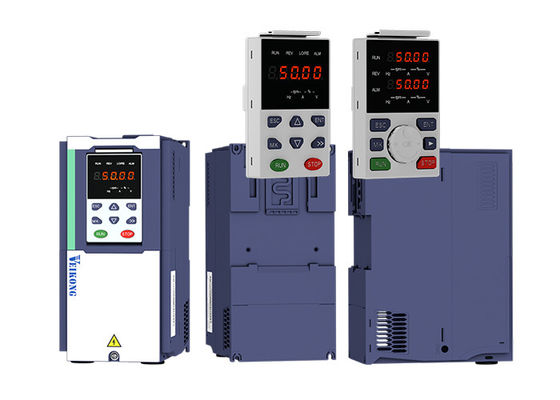

External GPRS device optional for remote monitoring and control for MPPT VFD Solar Pump Inverter 1

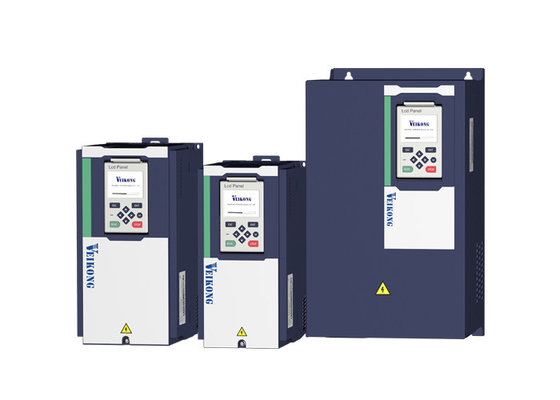

External GPRS device optional for remote monitoring and control for MPPT VFD Solar Pump Inverter 2





For 220V single phase motor connection

1: Single phase asynchronous motor wiring method (without starting capacitor):

Notice: U is connected to the common end of the starting winding and the working winding, V is connected to the starting winding, and W is connected to the working winding;



Single-phase asynchronous motor if the rotary steering is not correct, you can change the V and W wiring or set P22.13=1.



First solution: Set parameter P11.01=1 (Single phase motor type without capacitor) or second solution: set P00.11=31 if your motor frequency is 50 hz or set P00.11=32 if your motor frequency is 60HZ

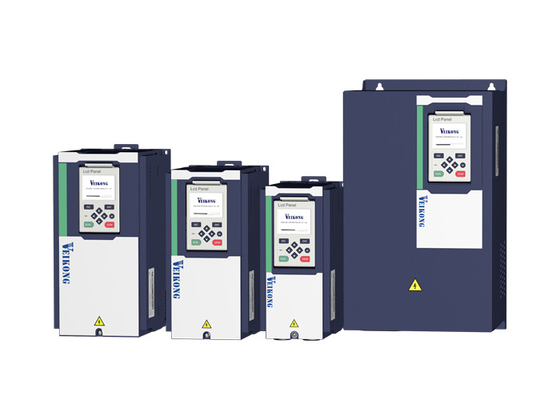

External GPRS device optional for remote monitoring and control for MPPT VFD Solar Pump Inverter 3





For 220V single phase motor connection

2: Single-phase asynchronous motor wiring method (with capacitor)



Notice1: First solution: Connect motor cable to power terminal U and V and enter BSC mode to Set parameter P23.15=0(output phase loss shielding protection) or second solution: set macro P00.11=21 if your motor frequency is 50HZ or set P00.11=22 if your motor frequency is 60HZ

External GPRS device optional for remote monitoring and control for MPPT VFD Solar Pump Inverter 4
