Automatic 37kW MPPT VFD Solar Pump Inverter 50hp With Over Current Protection
| Place of Origin | China |
|---|---|
| Brand Name | VEIKONG |
| Certification | CE |
| Model Number | VFD500-PV |
| Minimum Order Quantity | 1 |
| Price | Negotiable |
| Packaging Details | the power less than 45kw use Carton, starting from 45kw use Wooden case |
| Delivery Time | depend on the order quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 15000pcs per Month |
Product Details
| Product Name | 37kw MPPT Solar Pump Inverter | Output Voltage | 220v/380v Ac |
|---|---|---|---|
| Horsepower | 50hp | Type | DC/AC Inverters |
| Display | LED+LCD | Protection | Overload,over Voltage,over Current Protection,short Circuit Protection |
| High Light | 37kW MPPT VFD Solar Pump Inverter,MPPT VFD Solar Pump Inverter 50hp,37kW mppt solar pump controller |
||
Product Description
Automatic water pump controller inverter 37kW MPPT solar pump inverter
VEIKONG VFD500-PV Series is a solar pump controller which is special designed for solar photovoltaic pump to replace battery with retain water.This product has the characteristics of high quality,multi-function,low noise,strong universality,etc.
Electrical Specifications
| 220V | 380V | |
| Max input DC voltage | 450V | 810V |
| DC voltage range | 150~450VDC | 300~810VDC |
| Normal working DC voltage | 260V-400V | 400V-650V |
| Recommended input mppt voltage | 330V | 550V |
| MPPT efficiency | >99% | |
| Rated output voltage | 1/3-phase 220VAC | 3-phase 380-480VAC |
| Output frequency range | 50/60Hz | |
| Max efficiency of the machine | 99% | |
| Ambient temperature range | -10 °C~50 °C, derating if the temperature is above 40 °C | |
| Cooling method | Air cooling | |
| Protection degree | IP20/IP21 | |
| Altitude | Below 1000m; above 1% for every additional 100m. | |
| Standard | CE/ROHS | |
Noted: We suggest solar panel power should be 1.3-1.4 times higher than solar pump power ,
And solar pump inverter power should be higher level than solar pump.
When solar pump distance to inverter higher than 100m,it should be equipped with Output reactor or higher level power inverter .
For Solar panel,l total VOC less than Maximum DC voltage of inverter and Solar panel vmp is recommend 530V for 380V pump and 305V for 220V pump
Software Desgin
1. Dual Supply Mode - Solar DC and Grid AC Compatible
2. Compatible with All Pumps, IM and PMSM
3. Dry Run Function
4. Automatic Start and Stop
5. Pumps Max Current Protection Setting
6. Water Tank Level Detect Function
Hardware Design
1. Innovation Design with Dual CPU
2. Good Ventilation with Low Temperature
3. Full Fault Protection Design to Ensure no IGBT Damaged
4. Infineon IGBT Module
5. Long Term Service Life Design
6. GPRS Remote Control is Optional
Technical Features
♦ Flexibility
◊ Compatible with IEC standard three-phase asynchronous induction motors
◊ Compatible with popular PV arrays
◊ Grid supply option
♦ Reliability
◊ 10-year market proven experience of leading motor and pump drive technology
◊ Soft start feature to prevent water hammer and increase system life
◊ Built-in overvoltage, overload, overheat and dry-run protection
♦ Cost Effectiveness
◊ Plug-and-play system design
◊ Embedded motor protection and pump functions
◊ Battery-free for most applications
◊ Effortless maintenence
♦ Smartness
◊ Self-adaptive maximum power point tracking technology up to 99% efficiency
◊ Automatic regulation of pump flow
◊ Self-adaption to the motor used in the installation
♦ Remote Monitoring
◊ Standard RS485 interface equipped for each solar pump inverter
◊ Optional GPRS/WIFI/Ethernet RJ45 modules for remote access
◊ Spots value of solar pump parameters monitoring available from anywhere
◊ History of solar pump parameters and events lookup support
◊ Android/iOS monitoring APP support

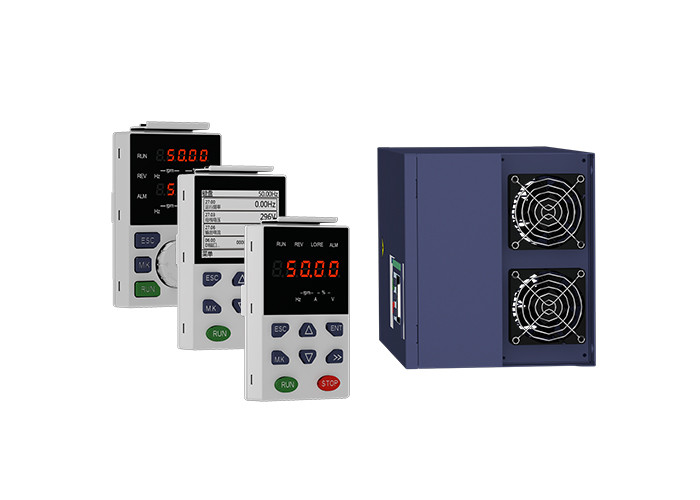

VEIKONG 37KW SOLAR PUMP INVERTER PICTURE:
Model Range
| Drive Model | Related Voltage | Max DC input voltage (V) | Rated output current (A) | Applicable water pump (KW) | SIZE |
| VFD500M-20T00150-PV | 220V | 800 | 7 | 1.5 | SIZE A |
| VFD500M-20T00220-PV | 220V | 800 | 10.6 | 2.2 | SIZE A |
| VFD500M-40T00150-PV | 380V | 800 | 4.2 | 1.5 | SIZE A |
| VFD500M-40T00220-PV | 380V | 800 | 6 | 2.2 | SIZE A |
| VFD500-20T00150-PV | 220V | 800 | 7 | 1.5 | SIZE A |
| VFD500-20T00220-PV | 220V | 800 | 10.6 | 2.2 | SIZE A |
| VFD500-20T00400-PV | 220V | 800 | 17 | 4 | SIZE A |
| VFD500-40T00150-PV | 380V | 800 | 4.2 | 1.5 | SIZE A |
| VFD500-40T00220-PV | 380V | 800 | 6 | 2.2 | SIZE A |
| VFD500-40T00400-PV | 380V | 800 | 9.4 | 4 | SIZE A |
| VFD500-40T00550-PV | 380V | 800 | 13 | 5.5 | SIZE B |
| VFD500-40T00750-PV | 380V | 800 | 17 | 7.5 | SIZE B |
| VFD500-40T01100-PV | 380V | 800 | 25 | 11 | SIZE C |
| VFD500-40T01500-PV | 380V | 800 | 32 | 15 | SIZE C |
| VFD500-40T01850-PV | 380V | 800 | 38 | 18.5 | SIZE D |
| VFD500-40T02200-PV | 380V | 800 | 46 | 22 | SIZE D |
| VFD500-40T03000-PV | 380V | 800 | 60 | 30 | SIZE E |
| VFD500-40T03700-PV | 380V | 800 | 75 | 37 | SIZE E |
| VFD500-40T04500-PV | 380V | 800 | 96 | 45 | SIZE F |
| VFD500-40T05500-PV | 380V | 800 | 112 | 55 | SIZE F |
| VFD500-40T07500-PV | 380V | 800 | 150 | 75 | SIZE G |
| VFD500-40T09000-PV | 380V | 800 | 176 | 90 | SIZE G |
| VFD500-40T11000-PV | 380V | 800 | 210 | 110 | SIZE H |
| VFD500-40T13200-PV | 380V | 800 | 253 | 132 | SIZE I |
| VFD500-40T16000-PV | 380V | 800 | 304 | 160 | SIZE I |
| VFD500-40T18500-PV | 380V | 800 | 340 | 185 | SIZE J |
| VFD500-40T20000-PV | 380V | 800 | 377 | 200 | SIZE J |
