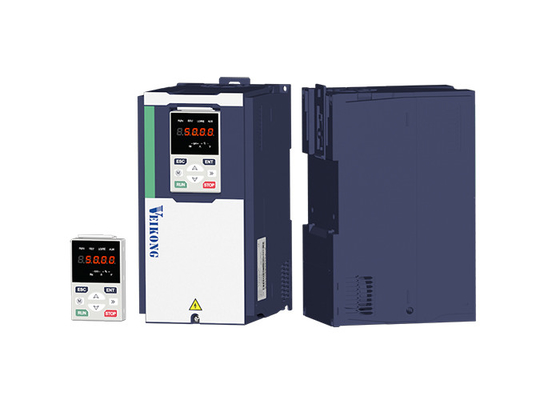

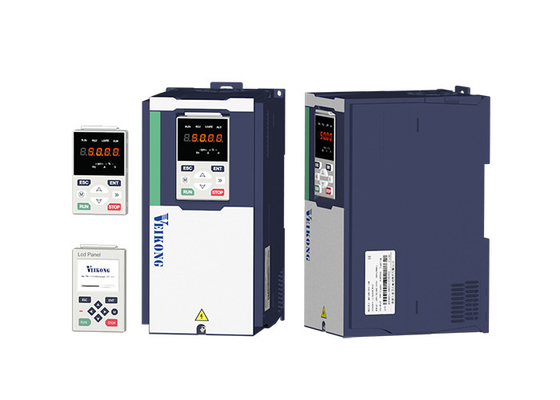

LED and LCD Keypad Options for MPPT VFD Solar Pump Inverter with GPRS Function
Place of Origin China
Brand Name VEIKONG
Certification CE
Model Number VFD500-PV
Minimum Order Quantity 1
Price Negotiable
Packaging Details the power less than 45kw use Carton, starting from 45kw use Wooden case
Delivery Time depend on the order quantity
Payment Terms L/C, T/T, Western Union
Supply Ability 15000pcs per Month
Product Details
Product Name Solar Pump Inverter Voltage 220v/380v
Output Type Single Phase/three Phase Size Depends
Warranty 18 Monthes Output Frequency 50Hz Or 60Hz
Brand VEIKONG Color Dark Blue And White
MPPT Efficiency 99.999% Special Function MPPT+PID
OEM Design Supported
High Light

VEIKONG Variable Frequency Drive Inverter

,

VEIKONG Submersible Pump Inverter

,

220v Variable Frequency Drive Inverter

Product Description

Hybrid Solar Pump Inverter DC and AC power input variable frequency drive



Electrical Specifications and Power degree

220V Solar Pumping Inverter
Input Specification
PV input
Maxiumum input DC voltage 400V DC
Recommended MPPT voltage range 250~350V DC
Recommended input Operation Voltage 310V DC
Grid or backup generator input
Input voltage Single phase 220V(-15%~30%)
Output Specification
Rated output voltage 3PH 220V
Output frequency 0~500.00Hz (default: 0~50.00Hz)
380V Solar Pumping Inverter
Input Specification
PV input
Maxiumum input DC voltage 800V DC
Recommended MPPT voltage range 450~650V DC
Recommended input Operation voltage 540V DC
Grid or backup generator input
Input voltage Three phase 380V(-15%~30%)
Output specification
Rated ouput voltage 3PH 380V
Output frequency 0~500.00Hz (default: 0~50.00Hz)
Protection
Built-in Protection Lighting Protection ,over-current, overvoltage, ouput phase lose, under-load, under-voltage, short circuit , overheating, water pump run dry etc.





Product Details and Features:


1. Built in EMC C3 filter.

2. Standare LED keypad, Can support optional LCD keypad.

3. Can support GPRS function.

4. Dry running protection self learning function.

5. Water full protection function.

6. Support 220v single phase pump and three phase pump, and support Permanent magnet synchronous motor

7. Support solar inverter parameters marco(USER menu). It is easy to find and set parameters.

8. Sleep and wake up function.

9. If you use keypad control, no need set parameters, it will run automaticlly after connecting wire

10. Support PID module







Accessories:



1. GPRS (support 2g/3g/4g internet)



It supplies water volume monitoring and operation of inverter from anywhere at anytim

It’s convenient to visit real time and historical data via web or Android APP anytime and anywhere.

This easy-to-use platform makes monitoring of solar pump systems simple and convenient,

far reducing operate time and monitoring costs as well.

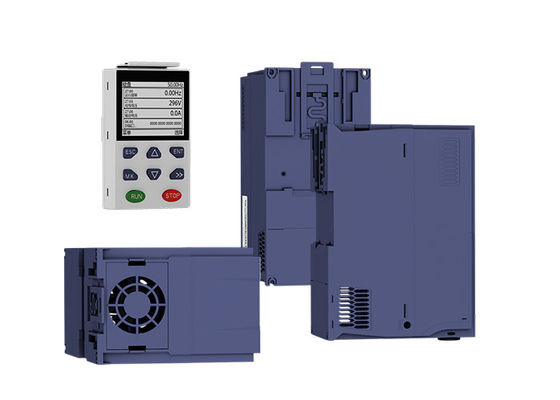

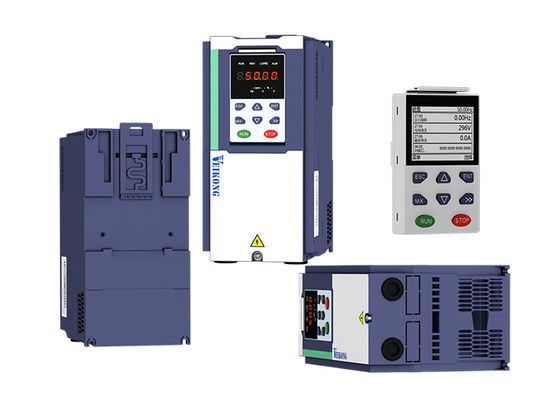

2. LCD keypad



Standard inverter are with LED keypad,LCD keypad is optional.

LCD keypad can monitor 4 parameters at the same time. LED keypad show one parameter only.

LCD keypad with detailed parameter explain,no need use user manual ,more user friendly.

LCD keypad with copy and update and download function.widely used for government projects and big farms.



VEIKONG multi languages choices display




Product Application:

LED and LCD Keypad Options for MPPT VFD Solar Pump Inverter with GPRS Function 1




Model Range


Drive Model Related Voltage Max DC input voltage (V) Rated output current (A) Applicable water pump (KW) SIZE
VFD500M-20T00150-PV 220V 800 7 1.5 SIZE A
VFD500M-20T00220-PV 220V 800 10.6 2.2 SIZE A
VFD500M-40T00150-PV 380V 800 4.2 1.5 SIZE A
VFD500M-40T00220-PV 380V 800 6 2.2 SIZE A
VFD500-20T00150-PV 220V 800 7 1.5 SIZE A
VFD500-20T00220-PV 220V 800 10.6 2.2 SIZE A
VFD500-20T00400-PV 220V 800 17 4 SIZE A
VFD500-40T00150-PV 380V 800 4.2 1.5 SIZE A
VFD500-40T00220-PV 380V 800 6 2.2 SIZE A
VFD500-40T00400-PV 380V 800 9.4 4 SIZE A
VFD500-40T00550-PV 380V 800 13 5.5 SIZE B
VFD500-40T00750-PV 380V 800 17 7.5 SIZE B
VFD500-40T01100-PV 380V 800 25 11 SIZE C
VFD500-40T01500-PV 380V 800 32 15 SIZE C
VFD500-40T01850-PV 380V 800 38 18.5 SIZE D
VFD500-40T02200-PV 380V 800 46 22 SIZE D
VFD500-40T03000-PV 380V 800 60 30 SIZE E
VFD500-40T03700-PV 380V 800 75 37 SIZE E
VFD500-40T04500-PV 380V 800 96 45 SIZE F
VFD500-40T05500-PV 380V 800 112 55 SIZE F
VFD500-40T07500-PV 380V 800 150 75 SIZE G
VFD500-40T09000-PV 380V 800 176 90 SIZE G
VFD500-40T11000-PV 380V 800 210 110 SIZE H
VFD500-40T13200-PV 380V 800 253 132 SIZE I
VFD500-40T16000-PV 380V 800 304 160 SIZE I
VFD500-40T18500-PV 380V 800 340 185 SIZE J
VFD500-40T20000-PV 380V 800 377 200 SIZE J
