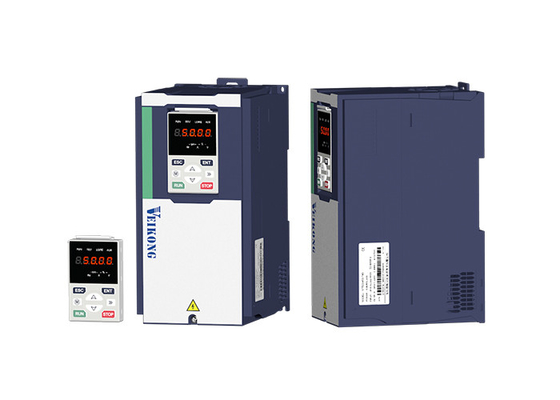

MPPT VFD Solar Pump Inverter for Sustainable Pumping Solutions 0.75kW-160kW
Place of Origin China
Brand Name VEIKONG
Certification CE
Model Number VFD500-PV
Minimum Order Quantity 1
Price Negotiable
Packaging Details the power less than 45kw use Carton, starting from 45kw use Wooden case
Delivery Time 3 days, depend on the order quantity
Payment Terms L/C, T/T, Western Union
Supply Ability 15000pcs per Month
Product Details
Product Name 0.75kw-160kw Solar Pump Inverter Voltage 220v/380v
Power 0.75kw-160kw Type DC/AC Inverters
Efficiency Higher Than 99% Protection Overload,over Voltage,over Current Protection,short Circuit Protection
MPPT Efficiency 99.9999% Special Function MPPT+PID
Brand VEIKONG Original China
Suitable Motor Pumps Synchronous Or Asynchronous
High Light

PMSM pumping inverter

,

160kw Solar Pump Vfd Drive

,

160kw Pumping Inverter

Product Description

Mppt 0.75kw-160kw solar vfd solar pump inverter for ac pump PMSM pump







Model Range



Drive Model Related Voltage Max DC input voltage (V) Rated output current (A) Applicable water pump (KW) SIZE
VFD500M-20T00150-PV 220V 800 7 1.5 SIZE A
VFD500M-20T00220-PV 220V 800 10.6 2.2 SIZE A
VFD500M-40T00150-PV 380V 800 4.2 1.5 SIZE A
VFD500M-40T00220-PV 380V 800 6 2.2 SIZE A
VFD500-20T00150-PV 220V 800 7 1.5 SIZE A
VFD500-20T00220-PV 220V 800 10.6 2.2 SIZE A
VFD500-20T00400-PV 220V 800 17 4 SIZE A
VFD500-40T00150-PV 380V 800 4.2 1.5 SIZE A
VFD500-40T00220-PV 380V 800 6 2.2 SIZE A
VFD500-40T00400-PV 380V 800 9.4 4 SIZE A
VFD500-40T00550-PV 380V 800 13 5.5 SIZE B
VFD500-40T00750-PV 380V 800 17 7.5 SIZE B
VFD500-40T01100-PV 380V 800 25 11 SIZE C
VFD500-40T01500-PV 380V 800 32 15 SIZE C
VFD500-40T01850-PV 380V 800 38 18.5 SIZE D
VFD500-40T02200-PV 380V 800 46 22 SIZE D
VFD500-40T03000-PV 380V 800 60 30 SIZE E
VFD500-40T03700-PV 380V 800 75 37 SIZE E
VFD500-40T04500-PV 380V 800 96 45 SIZE F
VFD500-40T05500-PV 380V 800 112 55 SIZE F
VFD500-40T07500-PV 380V 800 150 75 SIZE G
VFD500-40T09000-PV 380V 800 176 90 SIZE G
VFD500-40T11000-PV 380V 800 210 110 SIZE H
VFD500-40T13200-PV 380V 800 253 132 SIZE I
VFD500-40T16000-PV 380V 800 304 160 SIZE I
VFD500-40T18500-PV 380V 800 340 185 SIZE J
VFD500-40T20000-PV 380V 800 377 200 SIZE J





Key Advantages:



1, The power range is from 220V 0.75kw to75kw, and 380v 0.75kw to 160kw



1, MPPT 99%, adjust the output frequency to the appropriate frequency in real-time.



2, Adjust water outflow of pumps quickly on basis of sunlight intensity change.



3, Light weak protection, dry run and low voltage,full water warning, overvoltage and overtemperature protection.



4, New keyboard design, support optional LCD keypad, simple appearance, and easy operation.



5, Automatic running without any commisioning in keypad control and GPRS monitoring option(as option).



6, Support AC pump and PMSM pump.

MPPT VFD Solar Pump Inverter for Sustainable Pumping Solutions 0.75kW-160kW 0

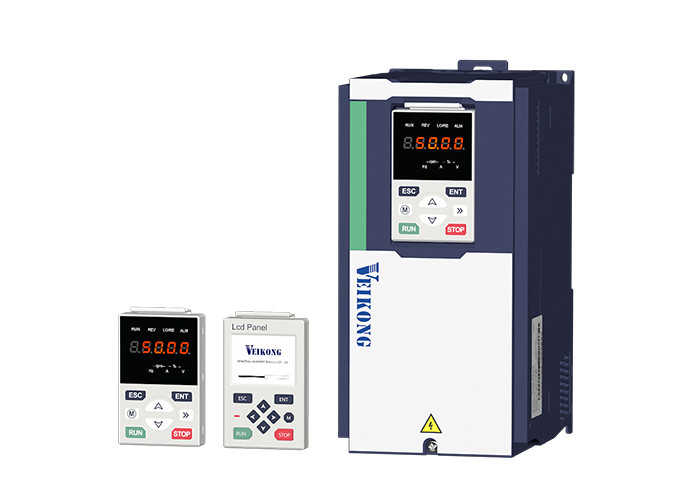

Support optional LCD keypad

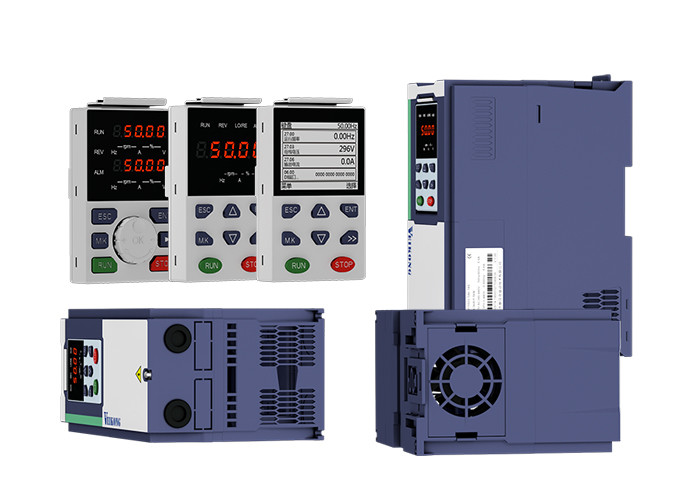

VEIKONG LCD display



Support optional GPRS Module

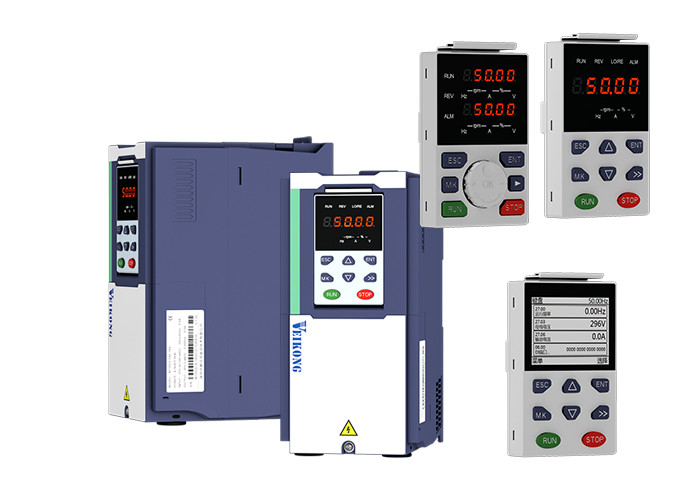

MPPT VFD Solar Pump Inverter for Sustainable Pumping Solutions 0.75kW-160kW 2


Product application pictures

MPPT VFD Solar Pump Inverter for Sustainable Pumping Solutions 0.75kW-160kW 3


Trial run(How to start solar pump inverter)



Make sure all cables connections of solar panel and pump motor correct and no need to set any parameter, if you want to set parameter, you can do as follows.



Step 1: (Keypad control):Set motor parameter P11.02- P11.06 as per motor pump name plate If dry run protection is required, measure the unload protection current according to the following method. If dry run protection not required then miss this step and go to step 2.



Notice” Unload detection current self-learning:

1. Set P47.00=0, P00.07=20.00-30.00, P00.06=0, and then press RUN to run the drive

2. Check the function code P27.00, wait until its value becomes 20.00, and then enter the function code P24.13,

3. press the keyboard RUN and SHIFT simultaneously for more than 2 seconds,, and if the value changes, the load-off self-learning is completed

4. Press RUN to stop running, set P47.00=1, P00.06=1, In this process, the pump no need to take out from water



PMSM pump



If your pump is Permanent magnetic Synchronous motor pump, please set P11.00=1 and set P11.02 and P11.03 and P11.04 and P11.06 and P11.05(Set RPM first then frequency) and set P01.08 and P11.10=1 or 2 for Auto tuning





Step 2: Set other related special solar pump parameters for optimization if needed.



Step 3: After trial run finishing, if motor pump still not output water when inverter is running more than 40 Hz. Please disconnect the power supply and replace any two-phase wiring of the motor.
