Advanced MPPT Technology for Maximum Power Generation in 3 Phase Solar Pump Inverter
Place of Origin China
Brand Name VEIKONG
Certification CE
Model Number VFD500-PV
Minimum Order Quantity 1
Price Negotiable
Packaging Details the power less than 45kw use Carton, starting from 45kw use Wooden case
Delivery Time depend on the order quantity
Payment Terms L/C, T/T, Western Union
Supply Ability 15000pcs per Month
Product Details
Product Name 11kw 15kw Solar Pump Inverter Output Frequency 50/60hz
Type AC Inverters Efficiency More Than 99%
Protection IP21 Pump Type Ac Pump/ PMSM Pump
Brand VEIKONG Original China
Dry Run Protection Yes Special Function MPPT+PID
High Light

IP21 15KW 3 Phase Inverter

,

IP21 Solar Ac Pump Controller

,

11kw Solar Ac Pump Controller

Product Description

Solar pump inverter 11kw 15kw frequency drive for AC pump PMSM pump





Product Details and Features:

1. Power from 220V (0.75 – 75KW) , 380V (0.75 – 250KW)

2. DC/AC Input Compatible, can support DC and AC Input at same time

3. With a variety of protection functions to improve the reliability of the system work.
Specially designed for water supply users, adaptable to various occasions application, easy to operate.

4. Adopt advanced MPPT technology to give full play to the power generation efficiency of the solar cell array.

5. It prevents the pump from pumping empty when the water source is dry.

6. Automatic dormancy when the light is weak (e.g., sunset) and withdrawal from dormancy when the light is strong (e.g., sunrise).

7. Automatic dormancy at high water level of the reservoir and automatic restart at low water level to realize automatic water level control.

8. Support optional LCD display and GPRS module.


9. Support IP20 and IP65 level.



Electrical Specifications and Power degree




220V

380V

Max input DC voltage

450V

810V

DC voltage range

150~450VDC

300~810VDC

Normal working DC voltage

260V-400V

400V-650V

Recommended input mppt voltage

330V

550V

MPPT efficiency

>99%

Rated output voltage

1/3-phase 220VAC

3-phase 380-480VAC

Output frequency range

50/60Hz

Max efficiency of the machine

99%

Ambient temperature range

-10 °C~50 °C, derating if the temperature is above 40 °C

Cooling method

Air cooling

Protection degree

IP20/IP21

Altitude

Below 1000m; above 1% for every additional 100m.

Standard

CE/ROHS



Advanced MPPT Technology for Maximum Power Generation in 3 Phase Solar Pump Inverter 0


Accessories:

1. GPRS (support 2g/3g/4g internet)

It supplies water volume monitoring and operation of inverter from anywhere at anytim
It’s convenient to visit real time and historical data via web or Android APP anytime and anywhere.
This easy-to-use platform makes monitoring of solar pump systems simple and convenient,
far reducing operate time and monitoring costs as well.

Advanced MPPT Technology for Maximum Power Generation in 3 Phase Solar Pump Inverter 1

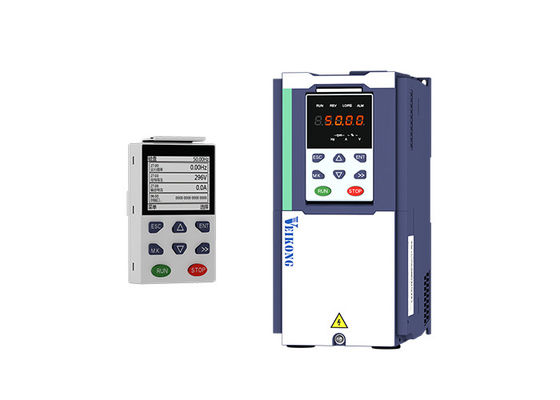

2. LCD keypad

Standard inverter are with LED keypad,LCD keypad is optional.
LCD keypad can monitor 4 parameters at the same time. LED keypad show one parameter only.
LCD keypad with detailed parameter explain,no need use user manual ,more user friendly.
LCD keypad with copy and update and download function.widely used for government projects and big farms.

Advanced MPPT Technology for Maximum Power Generation in 3 Phase Solar Pump Inverter 2


3. Output Reactor

When the distance between inverter and pump is more than 70m, you need use reactor to protect this system.
Advanced MPPT Technology for Maximum Power Generation in 3 Phase Solar Pump Inverter 3

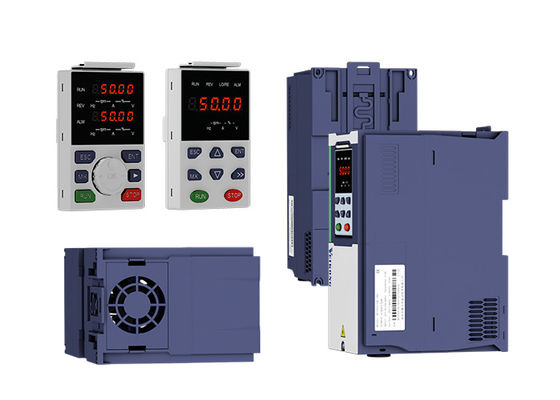

VFD500-PV 11KW  15kw 380V inverter picture:

Advanced MPPT Technology for Maximum Power Generation in 3 Phase Solar Pump Inverter 4



Power range:



Drive model Max DC input current (A) Rated output current (A) Applicable water pump (kW)
VFD500M-40T00150-PV 9 3.7 1.5
VFD500M-40T00220-PV 12 5 2.2
VFD500M-40T00400-PV 16.5 9.4 4
VFD500M-40T00550-PV 23.9 13 5.5
VFD500M-40T00750-PV 30.6 17 7.5
VFD500-40T00150-PV 9 4.2 1.5
VFD500-40T00220-PV 12 5.6 2.2
VFD500-40T00400-PV 16.5 9.4 4
VFD500-40T00550-PV 23.9 13 5.5
VFD500-40T00750-PV 30.6 17 7.5
VFD50040T01100-PV 39.2 25 11
VFD500-40T01500-PV 49.0 32 15
VFD500-40T01850-PV 50 37 18.5
VFD500-40T02200-PV 60 45 22
VFD500-40T03000-PV 81 60 30
VFD500-40T03700-PV 90 75 37
VFD500-40T04500-PV 130 90 45
VFD500-40T05500-PV 150 112 55
VFD500-40T07500-PV 200 152 75
VFD500-40T09000-PV 250 176 90
VFD500-40T11000-PV 300 210 110
VFD500-40T13200-PV 360 253 132
VFD500-40T16000-PV 430 304 160
VFD500-40T18500-PV 500 360 185
VFD500-40T20000-PV 550 380 200
VFD500-40T22000-PV 620 426 220
VFD500-40T25000-PV 680 465 250
220V single phase/three phase level
VFD500-20T00075-PV 6.7 4.5 0.75
VFD500-20T00150-PV 9.9 7 1.5
VFD500-20T00220-PV 14.1 10.6 2.2
VFD500-20T00400-PV 22.6 17 4
VFD500-20T00550-PV 30 25 5.5





Advanced MPPT Technology for Maximum Power Generation in 3 Phase Solar Pump Inverter 5







Advanced MPPT Technology for Maximum Power Generation in 3 Phase Solar Pump Inverter 6









Advanced MPPT Technology for Maximum Power Generation in 3 Phase Solar Pump Inverter 7


FQA:



1. Are you trading company or manufacturer?
We are manufacturer.

2. What's the payment term?
We accept T/T, L/C, WEST UNION, PAYPAL, CASH

3. What's the production ability?
10000 pieces monthly and rush order for any quantity.

4. What kind of certificate you have ?
We have CE, ROHS and ISO9001, etc.

5. Do you accept OEM business?
We accept OEM with your authorization.

6. How is the after-sale service?
We offer spare parts accordingly and English-speaking engineers offer online service.

7. How long is your warranty time?
Usually our warranty time is 18 months
